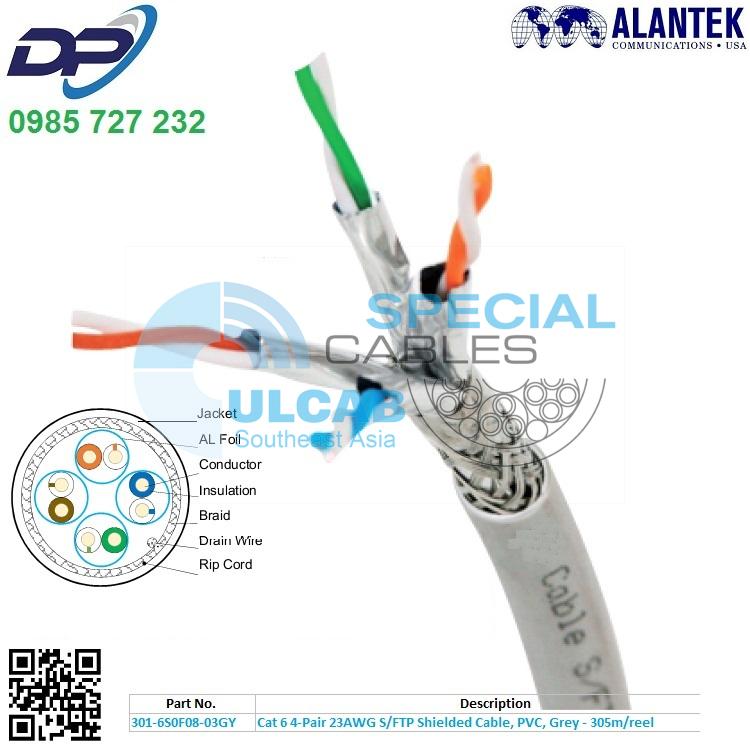

Cat 6 4-Pair 23AWG S/FTP Shielded Cable
DESCRIPTION
Application : Horizontal Wiring
Standard :
IEC 61156, ANSI/TIA/EIA-568-C.2,
ISO 11801, EN 50173
CONSTRUCTION & DIMENSION
Conductor : Material : Annealed Bare Copper
Size : 23 AWG(0.55mm) x 4 Pair
Insulation : Material : Foam PE (FMPE)
Min. Ave. Thickness : 0.38 mm
Diameter : 1.32 ± 0.2 mm
Identification :
1. Blue x White / Blue
2. Orange x White / Orange
3. Green x White / Green
4. Brown x White / Brown
Core Assembly : Core Twist : 2 core twist
Assembly Pair : 4 pair assembly with individual foil
Drain Wire : Tinned Copper
Size : 0.40mm
Braid Wire : AL&Mg 8 x 7 x 0.12mm
Ripcord : Yes
Jacket : Material : PVC
Average Thickness : 0.5mm ±0.05mm
Minimum Point Thickness : 0.42 mm
Outer Diameter : 7.3mm ±0.3mm
ELECTRICAL & PHYSICAL PROPERTIES
| FREQ | ATTN | NEXT | ACR | RL | PS NEXT | PS ACR | ELFEXT | PS ELFEXT |
| MHz | dB/100m | dB | dB/100m | dB | dB | dB/100m | dB | dB |
| 1 | 2 | 74.3 | 72.3 | 20 | 72.3 | 70.3 | 67.8 | 64.8 |
| 4 | 3.8 | 65.3 | 61.5 | 23 | 63.3 | 59.5 | 55.8 | 52.8 |
| 10 | 6 | 59.3 | 53.3 | 25 | 57.3 | 53.5 | 47.8 | 44.8 |
| 16 | 7.6 | 56.2 | 48.6 | 25 | 54.2 | 51.3 | 43.7 | 40.7 |
| 20 | 8.5 | 54.8 | 46.3 | 25 | 52.8 | 46.6 | 41.8 | 38.8 |
| 31.25 | 10.7 | 51.9 | 41.2 | 23 | 49.9 | 44.3 | 37.9 | 34.9 |
| 62.5 | 15.4 | 47.4 | 32 | 21 | 45.4 | 41.8 | 31.9 | 28.9 |
| 100 | 19.8 | 44.3 | 24.5 | 19 | 42.3 | 39.2 | 27.8 | 24.8 |
| 200 | 29 | 39.8 | 10.8 | 16.4 | 37.8 | 30 | 21.8 | 18.8 |
| 250 | 32.8 | 38.3 | 5.5 | 15.6 | 36.3 | 22.5 | 19.8 | 16.8 |
Characteristic Impedance (1 – 250 MHz) : 100 ± 15 Ω
Characteristic Impedance (100 – 250 MHz) : 100 ± 22 Ω
Delay Skew (ns/100m) ≤ 45
Pair-to-Ground Capacitance Unbalance (pF/100m) ≤ 330
DC Resistance Unbalance, max. : ≤ 5%
Conductor Resistance, max. @ 20°C : 9.38 Ω/100m
Nominal Velocity of Propagation (NVP) : 69%
| Part No. | Description |
| 301-6S0F08-03GY | Cat 6 4-Pair 23AWG S/FTP Shielded Cable, PVC, Grey – 305m/reel |
