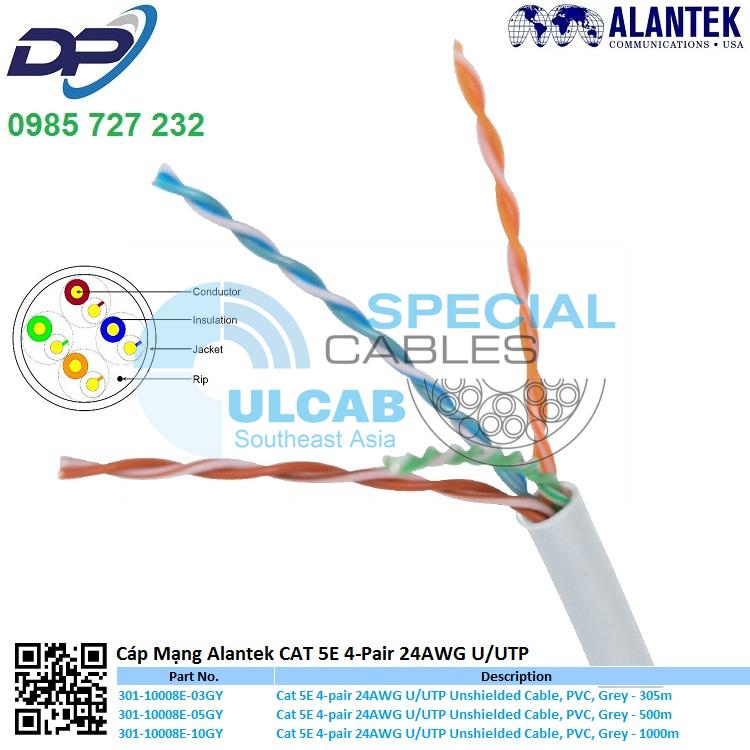

Cat 5E 4-pair 24AWG U/UTP Unshielded Cable
DESCRIPTION
Rating Temp : 75°C
Flame Test : CM
Application : Horizontal Wiring
Standard : ISO/IEC 11801, TIA/EIA 568B UL 444, ETL, 3P
CONSTRUCTION & DIMENSION
Conductor :
Material : Solid Plain Copper
Size : 24 AWG x 4 Pair
Construction : 1/0.49 ± 0.02 mm
Insulation :
Material : HDPE
Min. Ave. Thickness : 0.21 mm
Min. Thickness at any point : 0.20 mm
Diameter : 0.92 ± 0.02 mm
Identification :
1. Blue x White / Blue
2. Orange x White / Orange
3. Green x White / Orange
4. Brown x White / Brown
Core Assembly :
Core Twist : 2 core twist
Assembly Pair : 4 pair assembly
Jacket :
Material : PVC
Thickness : 0.52 ± 0.2 mm
Min. Thickness at any point : 0.50 mm
Diameter : 5.0 ± 0.2 mm
ELECTRICAL & PHYSICAL PROPERTIES
| FREQ. | ATTN. | NEXT | ACR | RL | PS NEXT | PS ACR | ELFEXT | PS ELFEXT |
| MHz | dB/100m | dB | dB/100m | dB | dB | dB/100m | dB | dB |
| 1 | 2 | 67 | 65 | 20 | 65 | 63 | 69 | 66 |
| 4 | 4 | 58 | 54 | 23 | 56 | 52 | 56.8 | 53.8 |
| 10 | 6.3 | 52 | 45.7 | 25 | 50 | 43.7 | 49 | 46 |
| 16 | 8 | 48.9 | 40.9 | 25 | 46.9 | 38.9 | 44.8 | 41.8 |
| 20 | 9 | 47.5 | 38.5 | 25 | 45.5 | 36.5 | 42.5 | 39.5 |
| 31.25 | 11.4 | 44.6 | 33.2 | 23.6 | 42.6 | 31.6 | 39 | 36 |
| 62.5 | 16.5 | 40.1 | 23.6 | 21.5 | 38.1 | 21.6 | 32.9 | 29.9 |
| 100 | 21.3 | 37 | 15.7 | 20.1 | 35 | 13.7 | 29 | 26 |
Characteristic Impedance (1 – 100 Mhz) : 100 ± 15 Ω
Mean Characteristic Impedance @ 100 Mhz : 100 ± 5Ω
DC Resistance, max: 8.76 Ω/100m
Resistance Unbalance, max : ≤ 5 %
DC Loop Resistance : 170 Ω/Km
Capacitance Unbalance (Pair-to-Ground), max : 330 pF/100m
Mutual Capacitance, nominal : ≤ 45 pF/m
Propagation Delay, max : 80 ns/100m
Delay Skew, max. : 20 ns/100m
Nominal Velocity of Propagation (NVP) : 69 %
Max. Tensile Load (Installation) : 100 N
Temperature (Operation) : -20°C to +80°C
Temperature (Installation) : 0°C to +80°C
| Part No. | Description |
| 301-10008E-03GY | Cat 5E 4-pair 24AWG U/UTP Unshielded Cable, PVC, Grey – 305m |
| 301-10008E-05GY | Cat 5E 4-pair 24AWG U/UTP Unshielded Cable, PVC, Grey – 500m |
| 301-10008E-10GY | Cat 5E 4-pair 24AWG U/UTP Unshielded Cable, PVC, Grey – 1000m |
