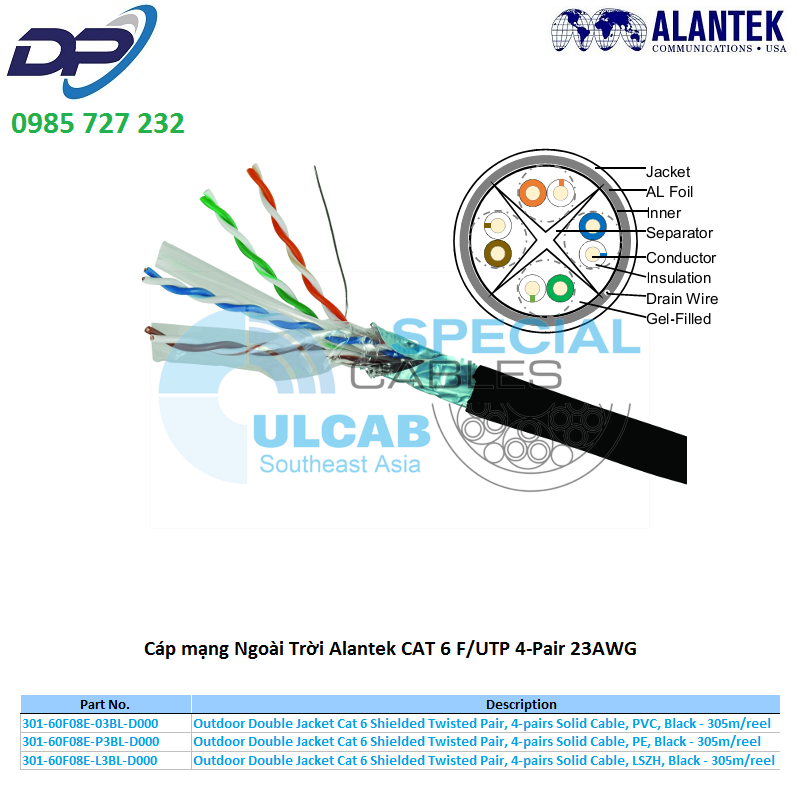

Outdoor Double Jacket Cat6 4-pairs F/UTP Shielded Cable
DESCRIPTION
Rating Temp : 75ºC
Flame Test :
Application : Horizontal Wiring
Standard : IEC 61156, ANSI/TIA/EIA-568-C.2, ISO 11801
CONSTRUCTION & DIMENSION
Conductor :
Material : Annealed Bare Copper
Size : 23 AWG x 4 Pair
Construction : 1/0.57 ± 0.005 mm
Insulation :
Material : PE
Min. Ave. Thickness : 0.23 mm ± 0.02 mm
Diameter : 1.03 ± 0.05 mm
Identification :
1. Blue x White / Blue
2. Orange x White / Orange
3. Green x White / Green
4. Brown x White / Brown
Core
Core Twist : 2 core twist
Assembly : Assembly Pair : 4 pair assembly
Separator : Material : PE
AL Foil Jacket : 0.05mm with coating
Drain Wire : Tinned Copper 0.3mm
Rip Cord : Yes
Jacket :
Material : PE
Min. Ave. Thickness : 0.50 mm ± 0.05 mm
Diameter : 7.5 ± 0.3 mm
ELECTRICAL & PHYSICAL PROPERTIES
| FREQ | ATTN | NEXT | ACR | RL | PS NEXT | ELFEXT | PS ELFEXT | DELAY |
| MHz | dB/100m | dB | dB/100m | dB | dB | dB | dB | ns/100m |
| 1 | 2 | 74.3 | 72.3 | 20 | 72.3 | 67.8 | 64.8 | 570 |
| 4 | 3.8 | 65.3 | 61.5 | 23 | 63.3 | 55.8 | 52.8 | 552 |
| 8 | 5.3 | 60.8 | 55.5 | 24.5 | 58.8 | 49.7 | 46.7 | 547 |
| 10 | 6 | 59.3 | 53.3 | 25 | 57.3 | 47.8 | 44.8 | 545 |
| 16 | 7.6 | 56.2 | 48.6 | 25 | 54.2 | 43.7 | 40.7 | 543 |
| 20 | 8.5 | 54.8 | 46.3 | 25 | 52.8 | 41.8 | 38.8 | 542 |
| 25 | 9.5 | 53.3 | 43.8 | 24.2 | 51.3 | 39.8 | 36.8 | 541 |
| 31.25 | 10.7 | 51.9 | 41.2 | 23.3 | 49.9 | 37.9 | 34.9 | 540 |
| 62.5 | 15.4 | 47.4 | 32 | 20.7 | 45.4 | 31.9 | 28.9 | 539 |
| 100 | 19.8 | 44.3 | 24.5 | 19 | 42.3 | 27.8 | 24.8 | 538 |
| 200 | 29 | 39.8 | 10.8 | 16.4 | 37.8 | 21.8 | 18.8 | 537 |
| 250 | 32.8 | 38.3 | 5.5 | 15.6 | 36.3 | 19.8 | 16.8 | 536 |
Characteristic Impedance (1 – 250 MHz) : 100 ± 15 Ω
DC Resistance Unbalance, max. : ≤ 5%
Conductor Resistance, max. @ 20°C : 9.38 Ω/100m
Capacitance Unbalance (Pair-to-Ground), max. : ≤ 330 pF/100m
Mutual Capacitance, max. : 5.6 nF/m
Propagation Delay Skew, max. : ≤ 45 ns/100m
Nominal Velocity of Propagation (NVP) : 69%
| Part No. | Description |
| 301-60F08E-03BL-D000 | Outdoor Double Jacket Cat 6 Shielded Twisted Pair, 4-pairs Solid Cable, PVC, Black – 305m/reel |
| 301-60F08E-P3BL-D000 | Outdoor Double Jacket Cat 6 Shielded Twisted Pair, 4-pairs Solid Cable, PE, Black – 305m/reel |
| 301-60F08E-L3BL-D000 | Outdoor Double Jacket Cat 6 Shielded Twisted Pair, 4-pairs Solid Cable, LSZH, Black – 305m/reel |
| 301-60F08E-05BL-D000 | Outdoor Double Jacket Cat 6 Shielded Twisted Pair, 4-pairs Solid Cable, PVC, Black – 500m/reel |
| 301-60F08E-P5BL-D000 | Outdoor Double Jacket Cat 6 Shielded Twisted Pair, 4-pairs Solid Cable, PE, Black – 500m/reel |
| 301-60F08E-L5BL-D000 | Outdoor Double Jacket Cat 6 Shielded Twisted Pair, 4-pairs Solid Cable, LSZH, Black – 500m/reel |
| 301-60F08E-01BL-D000 | Outdoor Double Jacket Cat 6 Shielded Twisted Pair, 4-pairs Solid Cable, PVC, Black – 1000m/reel |
| 301-60F08E-P1BL-D000 | Outdoor Double Jacket Cat 6 Shielded Twisted Pair, 4-pairs Solid Cable, PE, Black – 1000m/reel |
| 301-60F08E-L1BL-D000 | Outdoor Double Jacket Cat 6 Shielded Twisted Pair, 4-pairs Solid Cable, LSZH, Black – 1000m/reel |
