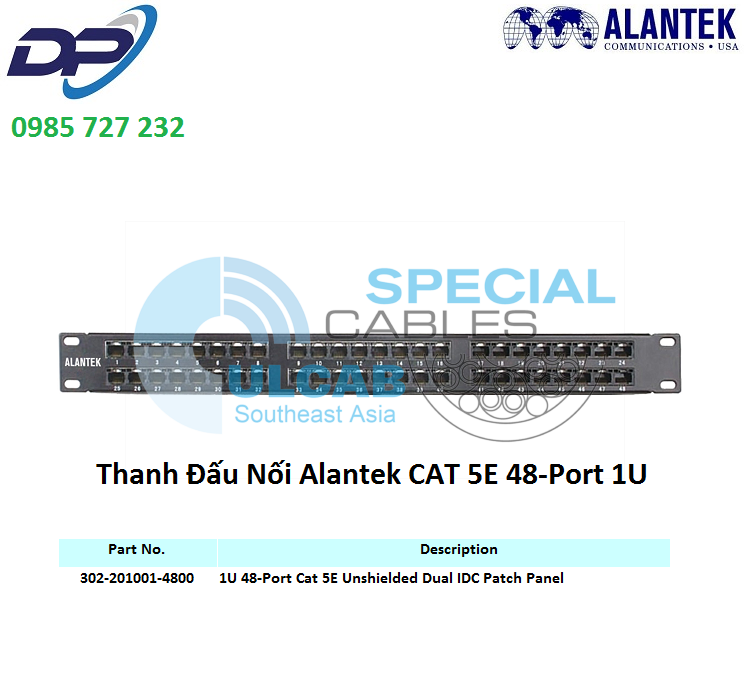

Thanh Đấu Nối Alantek ( 302-201001-4800 ) Patch Panel Cat 5E 48-Port 1U Unshielded Dual IDC Patch Panel

Thanh Đấu Nối Alantek ( 302-201001-4800 ) Patch Panel Cat 5E 48-Port 1U Unshielded Dual IDC Patch Panel

Cat 5E Unshielded Dual IDC Patch Panel

Features
•  Dual IDC allows both 110 and Krone tools to be used for termination
•  Comes with front labels
•  Support both T568A and T568B wiring
•  Support Gigabit Ethernet application
Characteristics
•  Current Rating: 1.5 amp (max.)
•  Voltage Rating: 150 V
•  Contact Resistance: 20 m-Ω
•  Insulation Resistance: 500 m-Ω
•  Dielectric Withstand Voltage: 1000 V AC
•  RMS, 60 Hz 1 min
•  IDC Termination: Dual (110 & Krone)
•  Housing: PC UL94V-0
•  IDC: PC UL94V-0, accept 22-26 AWG Solid Wire
•  PCB: FR4 1.6mm (0.4”) thickness, 2 layers
•  Contact: PC UL94V-0, 0.45mm (0.018”)
Standards
•  ANSI/TIA 568C.2
•  ISO/IEC 11801
•  CENELEC EN50173
•  UL 1863

Part No. Description
302-201001-4800 1U 48-Port Cat 5E Unshielded Dual IDC Patch Panel

DATA SHEET
