Power and control cables
Various applications
Intrinsically safe circuits
LAPP KABEL ÖLFLEX® EB
According to DIN EN 60079-14; VDE 0165 part 1

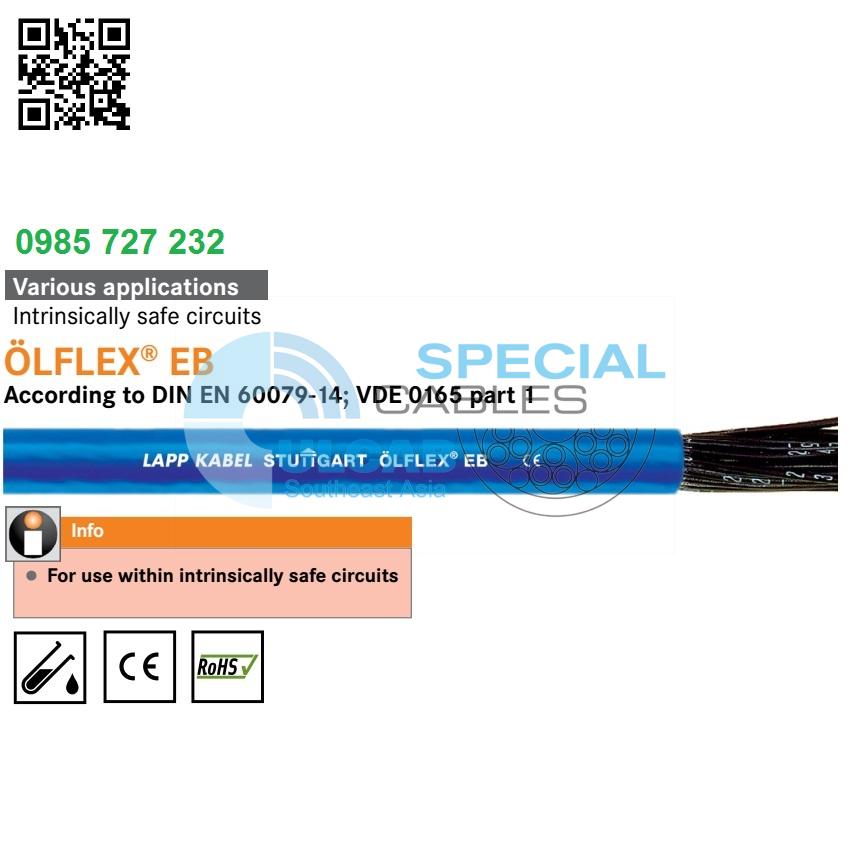

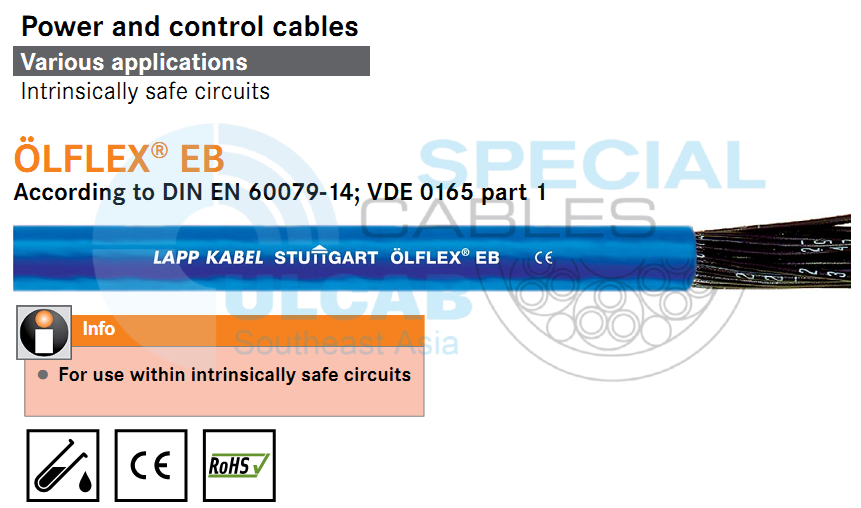

ÖLFLEX® EB – PVC control cable, flexible and numbered. With blue sheath for use in intrinsically-safe circuits, nominal voltage: 300/500V
For use within intrinsically safe circuits – ignition protection type “i”
Benefits
- Space-saving installation due to small cable diameters
Application range
- For intrinsically safe circuits (ignition protection type i – intrinsic safety) according to IEC 60079-14:2013 / EN 60079-14:2014 / VDE 0165-1:2014, section 16.2.2
Product features
- Flame-retardant according to IEC 60332-1-2
Norm references / approvals
- Based on EN 50525-2-51
Design
- Finely stranded bare copper wires
- PVC core insulation LAPP P8/1
- Cores twisted in layers
- PVC sheath, sky blue RAL 5015
■ Technical data
Classification
- ETIM 5.0 Class-ID: EC000104
- ETIM 5.0 Class-Description: Control cable
Core identification code
- Black with white numbers acc. to VDE 0293-1
Operating capacitance
- Core/core approx. 140 nF/km
Inductance
- approx. 0.52 mH/km
Conductor design
- Fine wire according to VDE 0295,
class 5 / IEC 60228 class 5
Minimum bending radius
- Occasional flexing: 15 x outer diameter
- Fixed installation: 4 x outer diameter
Nominal voltage
- U0/U: 300/500 V
Test voltage
- Core/Core: 3000 V
Temperature range
- Occasional flexing: -5°C to +70°C
- Fixed installation: -40°C to +80°C
| Article number | Number of cores and mm² per conductor | Outer diameter (mm) | Copper index (kg/km) | Weight (kg/km) |
| ÖLFLEX® EB without protective conductor GN/YE | ||||
| 0012420 | 2 X 0.75 | 5.4 | 14.7 | 50 |
| 0012421 | 3 X 0.75 | 5.7 | 22.1 | 60 |
| 0012430 | 4 X 0.75 | 6.2 | 29.4 | 81 |
| 0012422 | 5 X 0.75 | 6.7 | 36.8 | 88 |
| 0012423 | 7 X 0.75 | 7.3 | 51.5 | 115 |
| 0012425 | 12 X 0.75 | 9.9 | 88.2 | 185 |
| 0012427 | 18 X 0.75 | 11.7 | 132.3 | 282 |
| 0012429 | 25 X 0.75 | 13.8 | 183.8 | 393 |
| 0012440 | 2 X 1.0 | 5.7 | 19.7 | 57 |
| 0012441 | 3 X 1.0 | 6.0 | 29.6 | 73 |
| 0012443 | 5 X 1.0 | 7.1 | 49.4 | 105 |
| 0012444 | 7 X 1.0 | 8.0 | 69.1 | 138 |
| 0012446 | 12 X 1.0 | 10.5 | 118.4 | 231 |
| 0012448 | 18 X 1.0 | 12.7 | 177.7 | 331 |
| 0012401 | 2 X 1.5 | 6.3 | 29.0 | 80 |
| 0012402 | 3 X 1.5 | 6.7 | 43.0 | 105 |
| 0012403 | 4 X 1.5 | 7.2 | 58.0 | 125 |
| 0012404 | 5 X 1.5 | 8.1 | 72.0 | 139 |
| ÖLFLEX® EB with protective conductor GN/YE | ||||
| 0012501 | 3 G 1.5 | 6.7 | 43.0 | 105 |
| 0012502 | 4 G 1.5 | 7.2 | 58.0 | 125 |
| 0012503 | 5 G 1.5 | 8.1 | 72.0 | 139 |
| 0012504 | 7 G 1.5 | 8.9 | 101.0 | 180 |
| 0012505 | 12 G 1.5 | 12.0 | 173.0 | 339 |
| 0012506 | 18 G 1.5 | 14.4 | 259.0 | 513 |
| 0012507 | 25 G 1.5 | 16.9 | 360.0 | 698 |
