Power and control cables
Various applications
Intrinsically safe circuits

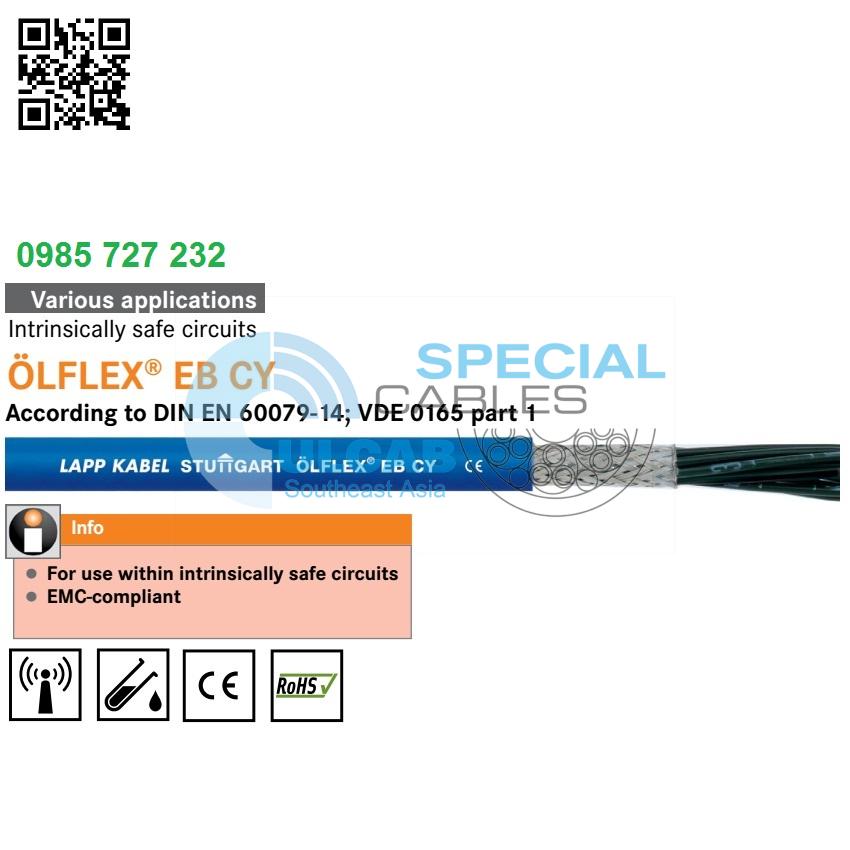

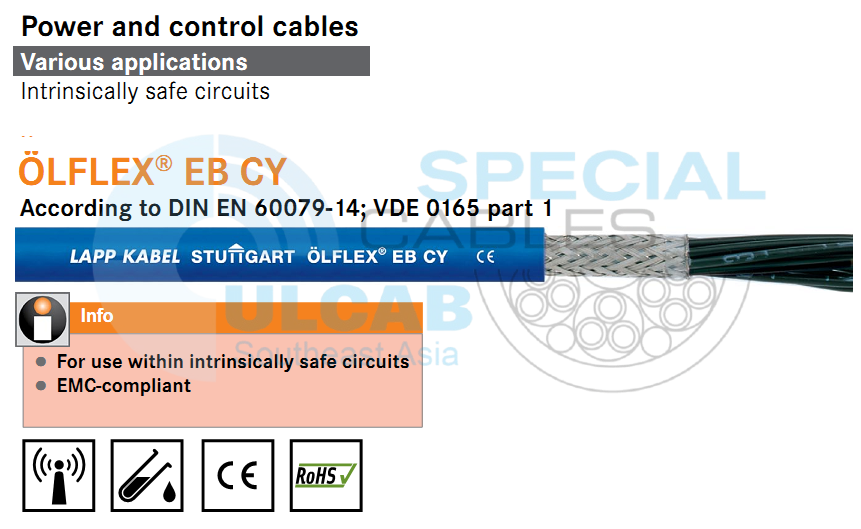

LAPP KABEL ÖLFLEX® EB CY
According to DIN EN 60079-14; VDE 0165 part 1
ÖLFLEX® EB CY – PVC control cable, shielded, flexible and numbered. With blue sheath for use in intrinsically-safe circuits, nominal voltage: 300/500V
- For use within intrinsically safe circuits – ignition protection type “i”
- EMC-compliant
Benefits
- Space-saving installation due to small cable diameters
- Copper wire braid screening of the ÖLFLEX® EB CY protects signal transmission within intrinsically safe circuits against electromagnetic interference
Application range
- For intrinsically safe circuits (ignition protection type i – intrinsic safety) according to IEC 60079-14:2013 / EN 60079-14:2014 / VDE 0165-1:2014, section 16.2.2
- In EMC-sensitive environments
(electromagnetic compatibility)
Product features
- Flame-retardant according to IEC 60332-1-2
- High level of screening
Low coupling resistance
(max. 250 Ω/km at 30 MHz)
Norm references / approvals
- Based on EN 50525-2-51
Design
- Finely stranded bare copper wires
- PVC core insulation LAPP P8/1
- Cores twisted in layers
- Plastic film wrapping
- Tinned-copper braiding
- PVC sheath, sky blue RAL 5015
■ Technical data
Classification
- ETIM 5.0 Class-ID: EC000104
- ETIM 5.0 Class-Description: Control cable
Core identification code
- Black with white numbers acc. to VDE 0293-1
Operating capacitance
- Core/core approx. 160 nF/km
Core/shield approx. 250 nF/km
Inductance
- approx. 0.52 mH/km
Conductor design
- Fine wire according to VDE 0295,
class 5 / IEC 60228 class 5
Minimum bending radius
- Occasional flexing: 20 x outer diameter
- Fixed installation: 6 x outer diameter
Nominal voltage
- U0/U: 300/500 V
Test voltage
- Core/Core: 3000 V
- Core/Shield: 2000 V
Temperature range
- Occasional flexing: -5°C to +70°C
- Fixed installation: -40°C to +80°C
| Article number | Number of cores and mm² per conductor | Outer diameter (mm) | Copper index (kg/km) | Weight (kg/km) |
| ÖLFLEX® EB CY screened; without inner sheath | ||||
| 0012640 | 2 X 0.75 | 6.2 | 43.0 | 56 |
| 0012641 | 3 X 0.75 | 6.5 | 52.0 | 70 |
| 0012642 | 4 X 0.75 | 7.0 | 61.0 | 95 |
| 0012643 | 5 X 0.75 | 7.7 | 72.0 | 108 |
| 0012644 | 7 X 0.75 | 8.3 | 89.0 | 168 |
| 0012645 | 12 X 0.75 | 10.9 | 138.0 | 216 |
| 0012646 | 18 X 0.75 | 12.7 | 211.0 | 315 |
| 0012647 | 25 X 0.75 | 14.8 | 280.0 | 435 |
| 0012650 | 2 X 1.0 | 6.5 | 51.0 | 84 |
| 0012651 | 3 X 1.0 | 6.8 | 62.0 | 110 |
| 0012652 | 5 X 1.0 | 8.1 | 88.0 | 156 |
| 0012653 | 7 X 1.0 | 8.8 | 112.0 | 192 |
| 0012654 | 12 X 1.0 | 11.5 | 185.0 | 285 |
| 0012655 | 18 X 1.0 | 13.9 | 268.0 | 395 |
| 0012656 | 25 X 1.0 | 15.9 | 354.0 | 656 |
| 0012660 | 2 X 1.5 | 7.1 | 65.0 | 87 |
| 0012661 | 3 X 1.5 | 7.5 | 82.0 | 112 |
| 0012662 | 5 X 1.5 | 8.9 | 119.0 | 148 |
| 0012663 | 7 X 1.5 | 9.9 | 154.0 | 193 |
| 0012664 | 12 X 1.5 | 13.0 | 268.0 | 365 |
| 0012666 | 25 X 1.5 | 17.9 | 530.0 | 734 |
