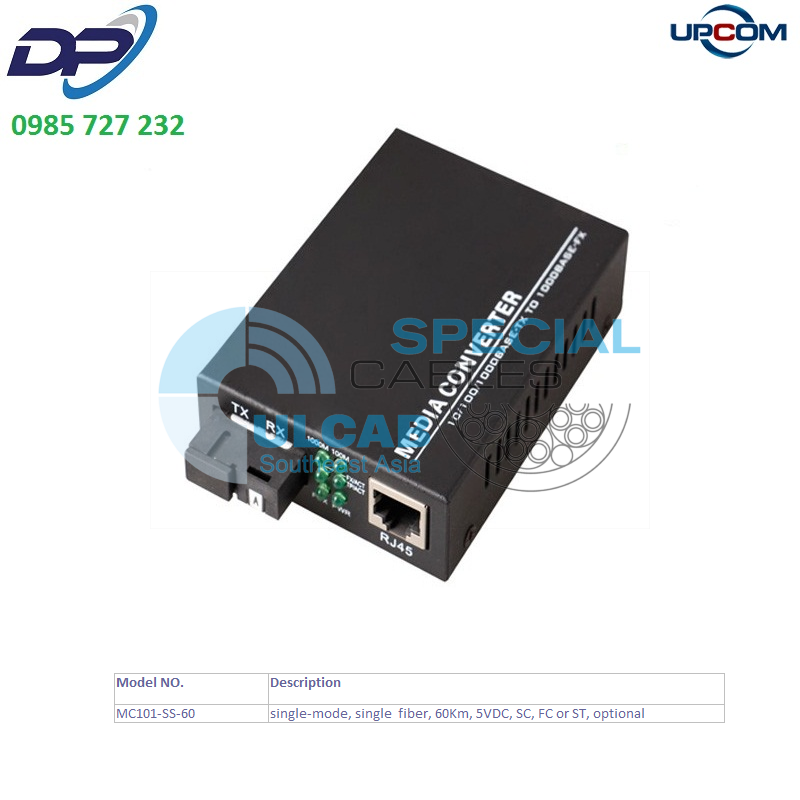

Bộ chuyển đổi UPCOM ( MC101-SS-60 ) Single-mode, single fiber, 60Km, 5VDC, SC, FC or ST, optional | Chính Hãng – Giá Tốt Nhất – Giá Rẻ Nhất
- 10/100M Ethernet Media ConverterMC101MC101, 10/100M Media Converter, provides a cost effective plug-and-play solution for long-range 10Base-T or 100Base-TX Ethernet extensions and added benefit of 10/100 auto-negotiation, making it the perfect choice when planning future upgrades of 10Base-T networks. MC101 Ethernet Fiber converters are ultra-miniature in size and feature a shielded RJ45 Ethernet jack, SC/ST/FC style fiber-optic connections.
Introduction
MC101, 10/100M Media Converter, provides a cost effective plug-and-play solution for long-range 10Base-T or 100Base-TX Ethernet extensions and added benefit of 10/100 auto-negotiation, making it the perfect choice when planning future upgrades of 10Base-T networks. MC101 Ethernet Fiber converters are ultra-miniature in size and feature a shielded RJ45 Ethernet jack, SC/ST/FC style fiber-optic connections. Built-in auto-sensing capabilities enable full or half-duplex Ethernet operation with no configuration required!
Features
1. Accord to IEEE802.1 10Base-T, IEEE802.3u 100Base-TX, IEEE802.3 100Base-FX
2. MDI/MDI-X auto negotiation, 10M/100M auto negotiation
3. Supports full /half duplex, Point-to-point transparent transfer
4. Power External 5VDC input
5. Plug-and-play, easy to installation
6. High-performance 155Mbps bandwidth.
7. Complies with FCC, 15 CLASS A ,RoHs and CE MARK
8. Can insert to 2U 19″, 14 slots Rackmount(power external)
| Interface | |
| Standards | comply with IEEE802.1 10Base-T, IEEE802.3u 100Base-TX, IEEE802.3 100Base-FX |
| RJ45 port rate | 10/100Mbps auto negotiation |
| Optic port rate | 100Mbps |
| Working | Asynchronous, point to point |
| Transfer distance | |
| RJ45port | 100m |
| Fiber optic | 20,40,60,80,100,120km(SM),2 km(MM) optional |
| RJ45 port cable | UTP 5E |
| Fiber connector | SC, ST, FC optional |
| Fiber optic cables | Single Mode:8.3/125,8.7/125,9/125 or 10/125 um, Muti-Mode:50/125,62.5/125 um |
| Wavelength | 850nm,1310nm,1550nm |
| Power | |
| Power supply | External 5VDC input |
| Consumption | 4W |
| Environment | |
| Operating temperature | -25°C to50°C |
| Storage temperature | -35°C to 70°C |
| Operating humidity | 5% to 95%(no condensation) |
| Appearance | |
| Dimensions | 110×70×25mm(Power External) |
| Shell | Iron |
| Color | Black |
| Weight | 180g(power external) |
| Warranty | 3years |
| Approvals | FCC,CE, RoHS approvals |
| Model NO. | Description |
| MC101-M-2 | multi-mode, 2Km, 5VDC, SC, FC or ST, optional |
| MC101-S-20 | single-mode, 20Km,5VDC, SC, FC or ST, optional |
| MC101-S-40 | single-mode, 40Km, 5VDC, SC, FC or ST, optional |
| MC101-S-60 | single-mode, 60Km, 5VDC, SC, FC or ST, optional |
| MC101-S-80 | single-mode, 80Km, 5VDC, SC, FC or ST, optional |
| MC101-S-100 | single-mode, 100Km,5VDC, SC, FC or ST, optional |
| MC101-S-120 | single-mode, 120Km, 5VDC, SC, FC or ST, optional |
| MC101-SS-20 | single-mode, single fiber, 20Km, 5VDC, SC, FC or ST, optional |
| MC101-SS-40 | single-mode, single fiber, 40Km, 5VDC, SC, FC or ST, optional |
| MC101-SS-60 | single-mode, single fiber, 60Km, 5VDC, SC, FC or ST, optional |
| MC101-SS-80 | single-mode, single fiber, 80Km, 5VDC, SC, FC or ST, optional |
DATA SHEET
