Power and control cables
Various applications
PVC sheath, approved

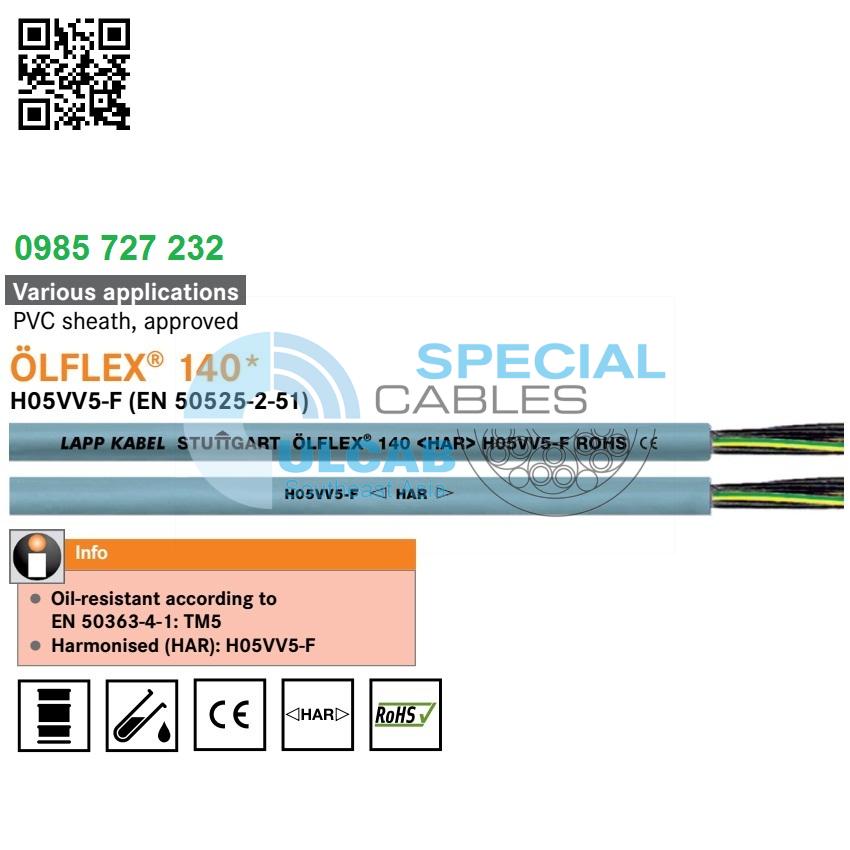

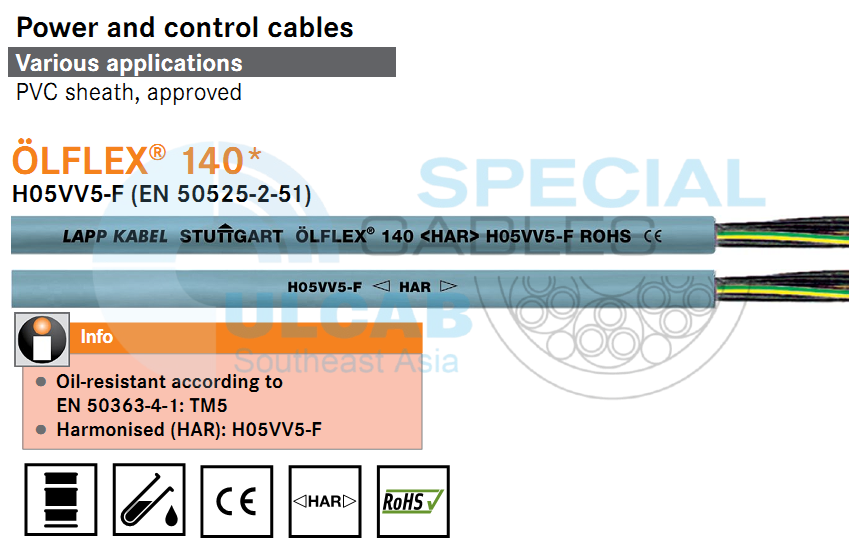

LAPP KABEL ÖLFLEX® 140*
H05VV5-F (EN 50525-2-51)
ÖLFLEX® 140 – H05VV5-F harmonised PVC control cable, oil-resistant, flexible and numbered for various applications; HAR: 300/500V
- Oil-resistant according to EN 50363-4-1: TM5
- Harmonised (HAR): H05VV5-F
Benefits
- High acceptance in Europe due to harmonisation
Application range
- Plant construction
Machine building
Heating and air-conditioning systems - Machine tools
- Mainly used in dry, damp and wet interiors (including water-oil mixtures), but not for outdoor use
- For fixed installation under medium mechanical loads and applications with occasional flexing with free, non-continuously recurring movement without tension load or compulsory guidance
Product features
- Flame-retardant according to IEC 60332-1-2
- Oil-resistant according to EN 50363-4-1: TM5
Norm references / approvals
- EN 50525-2-51
Design
- Finely stranded bare copper wires
- PVC core insulation
- Cores twisted in layers
- PVC sheath, high oil-resistance, grey (RAL 7001)
■ Technical data
Classification
- ETIM 5.0 Class-ID: EC000104
- ETIM 5.0 Class-Description: Control cable
Core identification code
- Black with white numbers acc. to VDE 0293-1
Conductor design
- Fine wire according to VDE 0295,
class 5 / IEC 60228 class 5
Minimum bending radius
- Occasional flexing: 12.5 x outer diameter
- Fixed installation: 4 x outer diameter
Nominal voltage
- U0/U: 300/500 V
Test voltage
- 2000 V
Protective conductor
- G = with GN-YE protective conductor
- X = without protective conductor
Temperature range
- Occasional flexing: -5°C to +70°C
- Fixed installation: -40°C to +70°C
| Article number |
Number of cores and mm² per conductor |
Outer diameter (mm) |
Copper index (kg/km) |
Weight (kg/km) |
| ÖLFLEX® 140 H05VV5-F | ||||
| 0011000 | 3 G 0.5 | 5.5 – 7.0 | 14,4 | 62,4 |
| 0011104 | 4 G 0.5 | 6.2 – 7.9 | 19,2 | 68,2 |
| 0011001 | 5 G 0.5 | 6.8 – 8.6 | 24 | 87,1 |
| 0011002 | 7 G 0.5 | 8.3 – 10.4 | 33,6 | 118,7 |
| 0011003 | 12 G 0.5 | 10.4 – 12.9 | 58 | 198 |
| 0011004 | 18 G 0.5 | 12.3 – 15.3 | 86,4 | 266,9 |
| 0011005 | 25 G 0.5 | 14.8 – 18.3 | 120 | 380,4 |
| 0011006 | 34 G 0.5 | 17.2 – 21.2 | 163,2 | 509 |
| 0011009 | 3 G 0.75 | 6.0 – 7.6 | 21,6 | 75,6 |
| 0011204 | 4 G 0.75 | 6.6 – 8.3 | 28,8 | 83,9 |
| 0011010 | 5 G 0.75 | 7.4 – 9.3 | 36 | 113,3 |
| 0011011 | 7 G 0.75 | 9.0 – 11.3 | 50 | 145 |
| 0011012 | 12 G 0.75 | 11.0 – 13.7 | 86 | 244,9 |
| 0011013 | 18 G 0.75 | 13.2 – 16.4 | 130 | 327,7 |
| 0011014 | 25 G 0.75 | 15.8 – 19.5 | 180 | 466,4 |
| 0011015 | 34 G 0.75 | 18.4 – 22.6 | 245 | 626,5 |
| 0011241 | 41 G 0.75 | 20.1 – 24.7 | 296 | 748 |
| 0011018 | 3 G 1.0 | 6.3 – 8.0 | 28,8 | 89,3 |
| 0011304 | 4 G 1.0 | 6.9 – 8.7 | 38,4 | 98,6 |
| 0011019 | 5 G 1.0 | 7.8 – 9.8 | 48 | 132,1 |
| 0011020 | 7 G 1.0 | 9.5 – 11.8 | 67 | 169,3 |
| 0011021 | 12 G 1.0 | 11.8 – 14.6 | 115 | 285,9 |
| 0011022 | 18 G 1.0 | 14.0 – 17.2 | 173 | 405,2 |
| 0011023 | 25 G 1.0 | 16.8 – 20.7 | 240 | 569,5 |
| 0011024 | 34 G 1.0 | 19.6 – 24.0 | 326 | 741,7 |
| 0011341 | 41 G 1.0 | 21.4 – 26.2 | 394 | 886 |
| 0011027 | 3 G 1.5 | 7.4 – 9.4 | 43 | 109,8 |
| 0011404 | 4 G 1.5 | 8.2 – 10.2 | 58 | 140,7 |
| 0011028 | 5 G 1.5 | 9.1 – 11.4 | 72 | 175 |
| 0011029 | 7 G 1.5 | 11.3 – 14.1 | 101 | 224,2 |
| 0011030 | 12 G 1.5 | 13.8 – 17.0 | 173 | 361,7 |
| 0011031 | 18 G 1.5 | 16.5 – 20.3 | 259 | 518,3 |
| 0011032 | 25 G 1.5 | 19.8 – 24.3 | 360 | 729,9 |
| 0011033 | 34 G 1.5 | 23.1 – 28.2 | 490 | 946,6 |
| 0011036 | 3 G 2.5 | 9.0 – 11.2 | 72 | 162,4 |
| 0011504 | 4 G 2.5 | 10.1 – 12.5 | 96 | 203,3 |
| 0011037 | 5 G 2.5 | 11.0 – 13.7 | 120 | 251,1 |
| 0011038 | 7 G 2.5 | 13.6 – 16.8 | 168 | 326 |
| 0011039 | 12 G 2.5 | 16.8 – 20.6 | 288 | 553,3 |
| 0011045 | 14 G 2.5 | 18.3 – 22.7 | 336 | 611 |
| 0011040 | 18 G 2.5 | 20.2 – 24.8 | 432 | 795,2 |
| 0011041 | 25 G 2.5 | 24.2 – 29.6 | 600 | 1109,6 |
