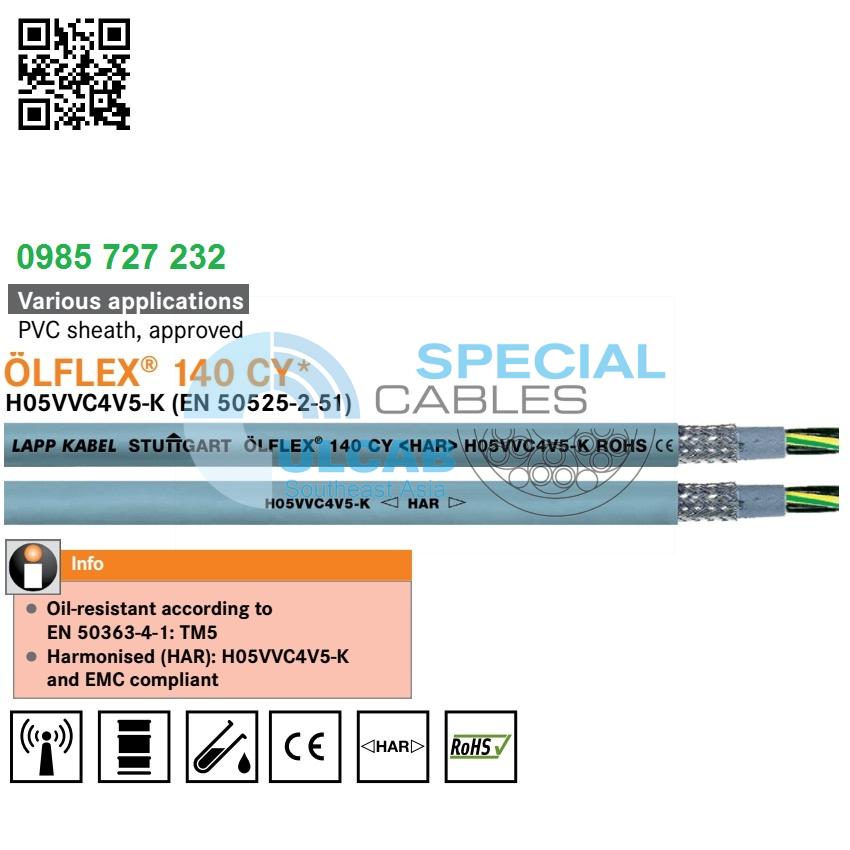

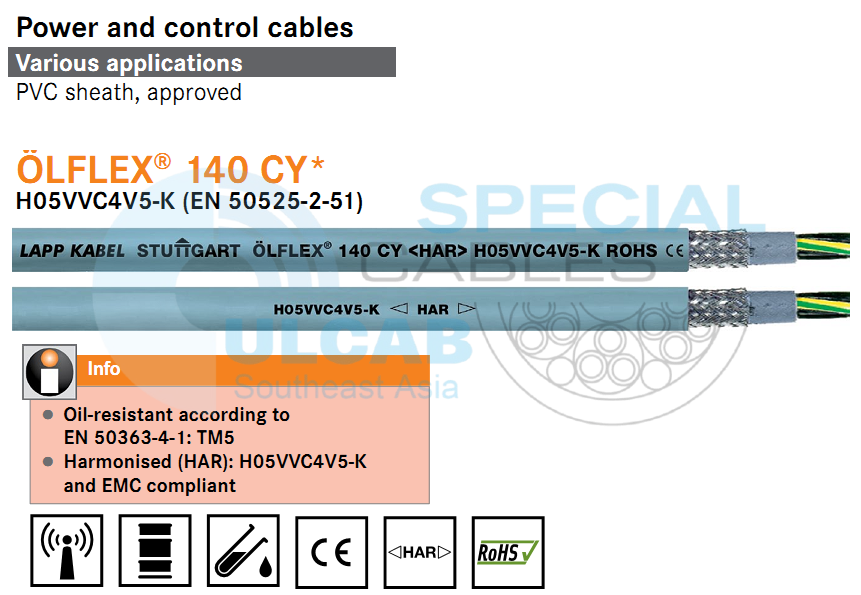

LAPP KABEL ÖLFLEX® 140 CY*
H05VVC4V5-K (EN 50525-2-51)
ÖLFLEX® 140 CY – H05VVC4V5-K harmonised PVC control cable, oil-resistant, shielded, flexible and numbered for various applications; HAR: 300/500V
- Oil-resistant according to EN 50363-4-1: TM5
- Harmonised (HAR): H05VVC4V5-K
and EMC compliant
Benefits
- High acceptance in Europe due to harmonisation
Application range
- Plant construction
Machine building
Heating and air-conditioning systems - Machine tools
- Mainly used in dry, damp and wet interiors (including water-oil mixtures), but not for outdoor use
- For fixed installation under medium mechanical loads and applications with occasional flexing with free, non-continuously recurring movement without tension load or compulsory guidance
- In EMC-sensitive environments
(electromagnetic compatibility)
Product features
- Flame-retardant according to IEC 60332-1-2
- Oil-resistant according to EN 50363-4-1: TM5
- High level of screening
Low coupling resistance
(max. 250 Ω/km at 30 MHz)
Norm references / approvals
- EN 50525-2-51
Design
- Finely stranded bare copper wires
- PVC core insulation
- Cores twisted in layers
- PVC inner sheath, grey
- Tinned-copper braiding
- PVC sheath, high oil-resistance, grey (RAL 7001)
■ Technical data
Classification
- ETIM 5.0 Class-ID: EC000104
- ETIM 5.0 Class-Description: Control cable
Core identification code
- Black with white numbers acc. to VDE 0293-1
Conductor design
- Fine wire according to VDE 0295,
class 5 / IEC 60228 class 5
Minimum bending radius
- Occasional flexing: 20 x outer diameter
- Fixed installation: 6 x outer diameter
Nominal voltage
- U0/U: 300/500 V
Test voltage
- 2000 V
Protective conductor
- G = with GN-YE protective conductor
- X = without protective conductor
Temperature range
- Occasional flexing: -5°C to +70°C
- Fixed installation: -40°C to +70°C
| Article number | Number of cores and mm² per conductor | Outer diameter (mm) | Copper index (kg/km) | Weight (kg/km) |
| ÖLFLEX® 140 CY H05VVC4V5-K | ||||
| 0035700 | 3 G 0.5 | 8.0 – 10.0 | 47.0 | 111.3 |
| 0035701 | 4 G 0.5 | 8.5 – 10.7 | 58.0 | 132.7 |
| 0035702 | 5 G 0.5 | 9.3 – 11.6 | 69.0 | 162.7 |
| 0035703 | 7 G 0.5 | 10.8 – 13.5 | 86.0 | 207.7 |
| 0035704 | 12 G 0.5 | 13.1 – 16.2 | 142.0 | 295 |
| 0035710 | 3 G 0.75 | 8.3 – 10.4 | 55.0 | 129.4 |
| 0035711 | 4 G 0.75 | 9.1 – 11.3 | 67.0 | 163.6 |
| 0035712 | 5 G 0.75 | 9.7 – 12.1 | 77.4 | 188.6 |
| 0035713 | 7 G 0.75 | 11.5 – 14.3 | 109.0 | 246.9 |
| 0035714 | 12 G 0.75 | 13.8 – 17.1 | 166.0 | 354.3 |
| 0035715 | 18 G 0.75 | 16.1 – 19.8 | 257.3 | 517 |
| 0035716 | 25 G 0.75 | 18.7 – 23.0 | 318.6 | 677.8 |
| 0035717 | 34 G 0.75 | 21.4 – 26.2 | 409.4 | 860.6 |
| 0035720 | 3 G 1.0 | 8.8 – 11.0 | 62.0 | 144.8 |
| 0035721 | 4 G 1.0 | 9.4 – 11.7 | 78.3 | 180.8 |
| 0035722 | 5 G 1.0 | 10.3 – 12.8 | 91.0 | 209 |
| 0035723 | 7 G 1.0 | 12.2 – 15.1 | 118.0 | 273 |
| 0035724 | 12 G 1.0 | 14.5 – 17.9 | 198.0 | 427.6 |
| 0035725 | 18 G 1.0 | 16.9 – 20.8 | 303.6 | 598.6 |
| 0035726 | 25 G 1.0 | 19.8 – 24.2 | 411.9 | 791.8 |
| 0035727 | 34 G 1.0 | 22.6 – 27.7 | 516.3 | 1003.9 |
| 0035730 | 3 G 1.5 | 9.7 – 12.1 | 83.0 | 189.7 |
| 0035731 | 4 G 1.5 | 10.7 – 13.2 | 97.8 | 221.6 |
| 0035732 | 5 G 1.5 | 11.8 – 14.7 | 118.0 | 261.8 |
| 0035733 | 7 G 1.5 | 14.1 – 17.4 | 218.0 | 356.7 |
| 0035734 | 12 G 1.5 | 16.7 – 20.6 | 309.7 | 559.4 |
| 0035735 | 18 G 1.5 | 19.5 – 24.0 | 411.4 | 767.6 |
| 0035736 | 25 G 1.5 | 22.9 – 28.0 | 546.5 | 1049 |
| 0035740 | 3 G 2.5 | 11.3 – 14.0 | 115.0 | 241.5 |
| 0035741 | 4 G 2.5 | 12.6 – 15.5 | 163.0 | 298.3 |
| 0035742 | 5 G 2.5 | 13.9 – 17.2 | 191.0 | 363.7 |
| 0035743 | 7 G 2.5 | 16.5 – 20.3 | 288.9 | 487.2 |
| 0035744 | 12 G 2.5 | 19.8 – 24.3 | 516.6 | 743.6 |
