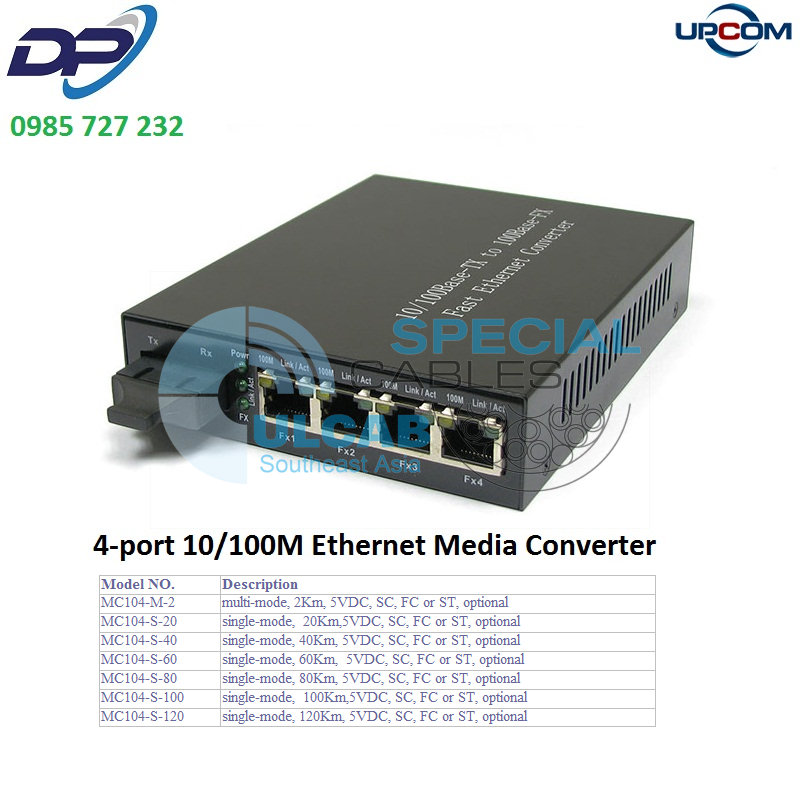

  • 4-port 10/100M Ethernet Media ConverterMC104MC104 complies with IEEE802.3, IEEE802.3u, IEEE802.3x Standards. It is designed to convert data signal between 10/100 Base-TX and 100Base-FX fast Ethernet. It supports 10/100Base-TX and 100Base-FX applications. The data signal converted by such high performance media converter can be transmitted up to 120Km maximum by fiber-optical cable. The Converter is equipped one optic port and four RJ45 Jacks and one external power supply receptacle.

Introduction

MC104 complies with IEEE802.3, IEEE802.3u, IEEE802.3x Standards. It is designed to convert data signal between 10/100 Base-TX and 100Base-FX fast Ethernet. It supports 10/100Base-TX and 100Base-FX applications. The data signal converted by such high performance media converter can be transmitted up to 120Km maximum by fiber-optical cable. The Converter is equipped one optic port and four RJ45 Jacks and one external power supply receptacle. LED indicators are built-in for easy diagnosing and monitoring the status of. It can be configured automatically for Full Duplex or Half Duplex operation.

Features

1.   Accord to IEEE802.1 10Base-T, IEEE802.3u 100Base-TX, IEEE802.3 100Base-FX

2.   MDI/MDI-X auto negotiation, 10M/100M auto negotiation

3.   Supports full /half duplex, Point-to-point transparent transfer

4.   Power External 5VDC input

5.   Plug-and-play, easy to installation

6.   High-performance 155Mbps bandwidth.

7.   Complies with FCC, 15 CLASS A ,RoHs and CE MARK

8.   Can insert to 2U 19″, 14 slots Rackmount(power external)

Interface
Standards comply  with IEEE802.1 10Base-T, IEEE802.3u 100Base-TX, IEEE802.3 100Base-FX
RJ45 port rate 10/100Mbps  auto negotiation
Optic port rate 100Mbps
Working Asynchronous,  point to point
Transfer distance RJ45port: 100m,Fiber optic:20,40,60,80,100,120km(SM),  2 km(MM) optional
RJ45 port cable UTP 5E
Fiber connector SC,ST,FC optional
Fiber optic cables Single Mode:8.3/125,8.7/125,9/125  or 10/125 um, Muti-Mode:50/125,62.5/125 um
Wavelength 850nm,1310nm,1550nm
Power
Power supply External 5VDC input
Consumption 4W
Operating temperature -25°C to50°C
Storage temperature -35°C to 70°C
Operating humidity 5% to 95%(no condensation)
Dimensions: 110×70×25mm(Power External)
Shell Iron
Color Black
Weight 180g(power external)
Warranty 3 years
Approvals FCC,CE, RoHS approvals

Model NO. Description
MC104-M-2 multi-mode, 2Km, 5VDC, SC, FC or ST, optional
MC104-S-20 single-mode,  20Km,5VDC, SC, FC or ST, optional
MC104-S-40 single-mode, 40Km, 5VDC, SC, FC or ST, optional
MC104-S-60 single-mode, 60Km,  5VDC, SC, FC or ST, optional
MC104-S-80 single-mode, 80Km, 5VDC, SC, FC or ST, optional
MC104-S-100 single-mode,  100Km,5VDC, SC, FC or ST, optional
MC104-S-120 single-mode, 120Km, 5VDC, SC, FC or ST, optional
MC104-SS-20 single-mode, single  fiber, 20Km, 5VDC, SC, FC or ST, optional
MC104-SS-40 single-mode, single fiber, 40Km, 5VDC, SC, FC or ST,  optional
MC104-SS-60 single-mode, single  fiber, 60Km, 5VDC, SC, FC or ST, optional
MC104-SS-80 single-mode, single fiber, 80Km, 5VDC, SC, FC or ST,  optional
