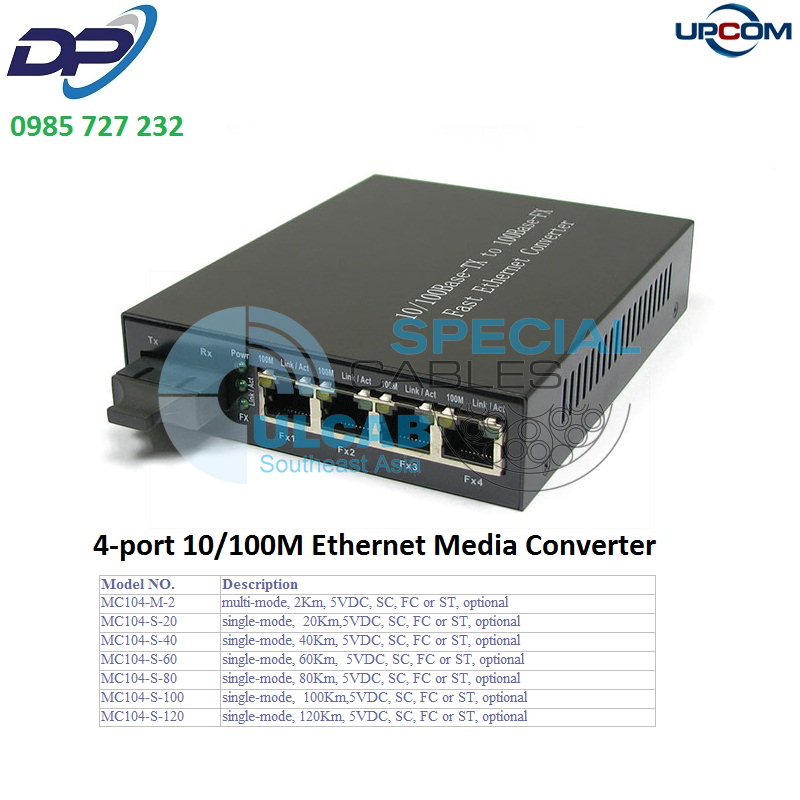

- 4-port 10/100M Ethernet Media ConverterMC104MC104 complies with IEEE802.3, IEEE802.3u, IEEE802.3x Standards. It is designed to convert data signal between 10/100 Base-TX and 100Base-FX fast Ethernet. It supports 10/100Base-TX and 100Base-FX applications. The data signal converted by such high performance media converter can be transmitted up to 120Km maximum by fiber-optical cable. The Converter is equipped one optic port and four RJ45 Jacks and one external power supply receptacle.
Introduction
MC104 complies with IEEE802.3, IEEE802.3u, IEEE802.3x Standards. It is designed to convert data signal between 10/100 Base-TX and 100Base-FX fast Ethernet. It supports 10/100Base-TX and 100Base-FX applications. The data signal converted by such high performance media converter can be transmitted up to 120Km maximum by fiber-optical cable. The Converter is equipped one optic port and four RJ45 Jacks and one external power supply receptacle. LED indicators are built-in for easy diagnosing and monitoring the status of. It can be configured automatically for Full Duplex or Half Duplex operation.
Features
1. Accord to IEEE802.1 10Base-T, IEEE802.3u 100Base-TX, IEEE802.3 100Base-FX
2. MDI/MDI-X auto negotiation, 10M/100M auto negotiation
3. Supports full /half duplex, Point-to-point transparent transfer
4. Power External 5VDC input
5. Plug-and-play, easy to installation
6. High-performance 155Mbps bandwidth.
7. Complies with FCC, 15 CLASS A ,RoHs and CE MARK
8. Can insert to 2U 19″, 14 slots Rackmount(power external)
| Model NO. | Description |
| MC104-M-2 | multi-mode, 2Km, 5VDC, SC, FC or ST, optional |
| MC104-S-20 | single-mode, 20Km,5VDC, SC, FC or ST, optional |
| MC104-S-40 | single-mode, 40Km, 5VDC, SC, FC or ST, optional |
| MC104-S-60 | single-mode, 60Km, 5VDC, SC, FC or ST, optional |
| MC104-S-80 | single-mode, 80Km, 5VDC, SC, FC or ST, optional |
| MC104-S-100 | single-mode, 100Km,5VDC, SC, FC or ST, optional |
| MC104-S-120 | single-mode, 120Km, 5VDC, SC, FC or ST, optional |
| MC104-SS-20 | single-mode, single fiber, 20Km, 5VDC, SC, FC or ST, optional |
| MC104-SS-40 | single-mode, single fiber, 40Km, 5VDC, SC, FC or ST, optional |
| MC104-SS-60 | single-mode, single fiber, 60Km, 5VDC, SC, FC or ST, optional |
| MC104-SS-80 | single-mode, single fiber, 80Km, 5VDC, SC, FC or ST, optional |
DATA SHEET
