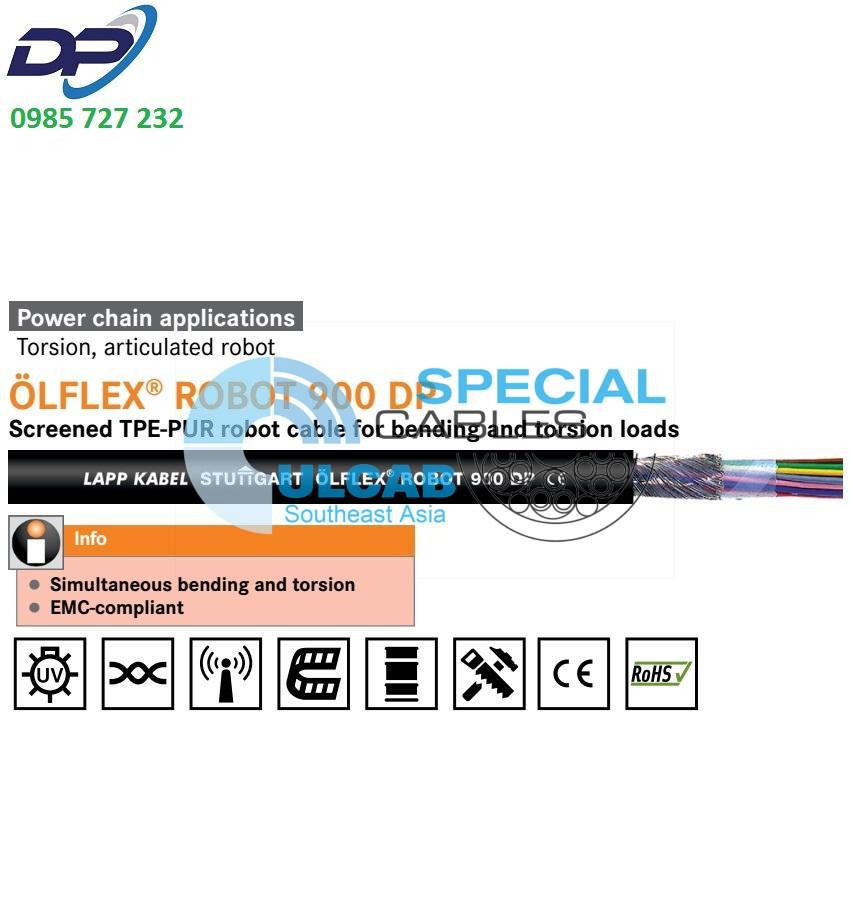

ÖLFLEX® ROBOT 900 DP
Shielded TPE-PUR robot cable for bending and torsion loads
ÖLFLEX® ROBOT 900 DP – power and control cable for bending and torsional applications in harsh environmental conditions in EMC critical areas.
- Simultaneous bending and twisting
- Torsion angle up to +/- 180°/m
- Copper shielding
Benefits
- Allows much faster motion sequences which increases the economic efficiency of machines
- Space-saving due to small cable diameters
- Durable under harsh conditions thanks to robust PUR sheath material
- Resistant to contact with many mineral oil-based lubricants, diluted acids, aqueous alkaline solutions and other chemical media
- Wide temperature range for applications in harsh climatic environments
Application range
- Plant construction
- Industrial machinery and machine tools
- Automated handling equipment
- Inside of dresspacks of buckling arm robots and for use for gantry robots
- In power chains or mobile machine parts
Product features
- Abrasion-resistant and notch-resistant
- Flame-retardant
- High oil resistance
- Flexible at cold temperatures
- Low-adhesive surface
Norm references / approvals
- For use in power chains: Please comply with assembly guideline appendix T3
- For distances up to 10 m
Design
- Fine or extra-fine strands made of bare copper wire
- Core insulation made of TPE
- Cores twisted in layers
- Wrapping: PTFE tape
- Shield wrapping made of tin-plated copper wires
- Polyurethane sheath, black (RAL 9005)
Classification
- ETIM 5.0 Class-ID: EC000104
- ETIM 5.0 Class-Description: Control cable
Core identification code
- Up to 0.34 mm²: Cores DIN 47100
- From 0.5 mm²: black cores with white printed numbers
Operating capacitance
- C/C approx. 100 nF/km
- C/S approx. 120 nF/km
Peak operating voltage
- 0.34 mm²: 350 V (not for power applications)
Inductance
- approx. 0.7 mH/km
Conductor design
- Fine wire or extra-fine wire
Torsion
- Torsion load max. ± 180°/m
Minimum bending radius
- Flexing: 15 x outer diameter
- Fixed installation: 4 x outer diameter
Nominal voltage
- up to 0.34 mm²: 48 V AC
- from 0.5 mm² U0/U: 300/500 V
Test voltage
- Up to 0.34 mm²: 1500 V
- from 0.5 mm²: 3000 V
Protective conductor
- G = with GN-YE protective conductor
- X = without protective conductor
Temperature range
- Flexing: -40°C to +80°C
Fixed installation: -50°C to +80°C
| Article number | Number of cores and mm² per conductor | Outer diameter (mm) | Copper index (kg/km) | Weight (kg/km) |
| 0028100 | 12 x 0,14 | 6.7 | 42.5 | 69 |
| 0028105 | 3 x 2 x 0,14 | 6.2 | 17 | 44 |
| 0028126 | 25 x 0,25 | 11. 1 | 103.5 | 183 |
| 0028135 | 4 x 0,34 | 5.7 | 21.3 | 46 |
| 0028136 | 5 x 2 x 0,34 | 9.1 | 64.4 | 114 |
| 0028195 | 12 G 1,5 | 14 | 259 | 395 |
