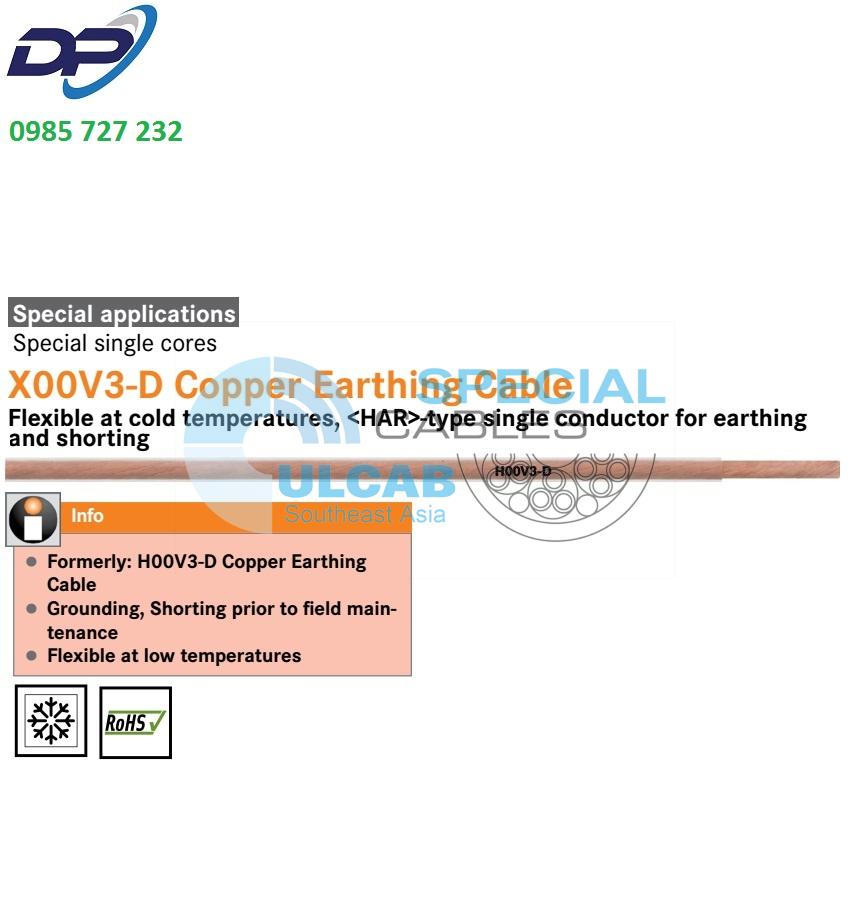

X00V3-D copper earthing cable
<HAR>-type single core that is flexible at cold temperatures for earthing and shorting
X00V3-D, special single core, earthing cable for grounding and shorting or as potential equalisation, based on H00V3-D, flexible at low temperatures -25°C, PVC sheath, transparent
- Grounding, shorting prior to maintenance
- Flexible at cold temperatures
Application range
- Provides protection during repairs
- For earthing in high-voltage power installations of power companies and in traction current installations for railways
- For earthing devices and potential equalisation on machine parts and EDP systems
- For applications in cold environments
Norm references / approvals
- Based on VDE 0283 part 3 or EN 61138
Design
- Conductor made of bare copper wires
- Outer sheath: Based on PVC, transparent
Classification
- ETIM 5.0 Class-ID: EC000993
- ETIM 5.0 Class-Description: Single-core cable
Conductor design
- Based on VDE 0283 part 3 or EN 61138
Minimum bending radius
- Flexible use: 12 x outer diameter
Test voltage
- 1000 V
Temperature range
- Flexible use: -25°C to +55°C
| Article number | Conductor cross-section (mm²) | Outer diameter (mm) | Copper index (kg/km) | Weight (kg/km) |
| 4571110 | 16 | 8.1 | 153.6 | 223 |
| 4571111 | 25 | 9.5 | 240 | 330 |
| 4571112 | 35 | 11 | 336 | 455 |
| 4571113 | 50 | 13.2 | 480 | 648 |
| 4571114 | 70 | 15.8 | 672 | 913 |
| 4571115 | 95 | 18.3 | 912 | 1,234.00 |
