Power and control cables
Various applications
PVC sheath, approved

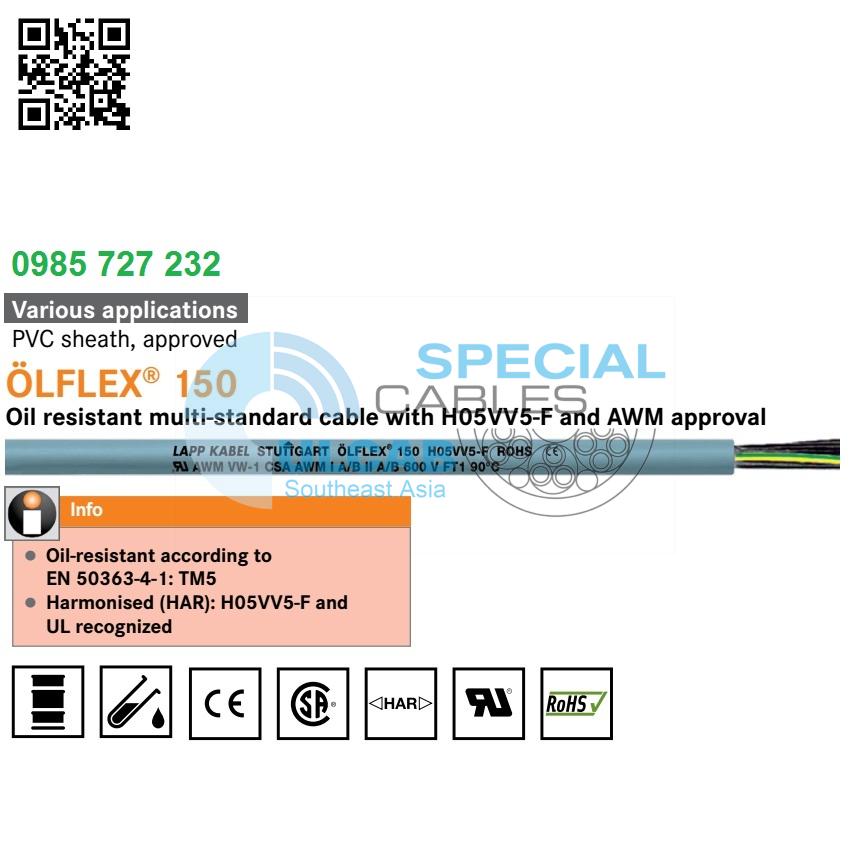

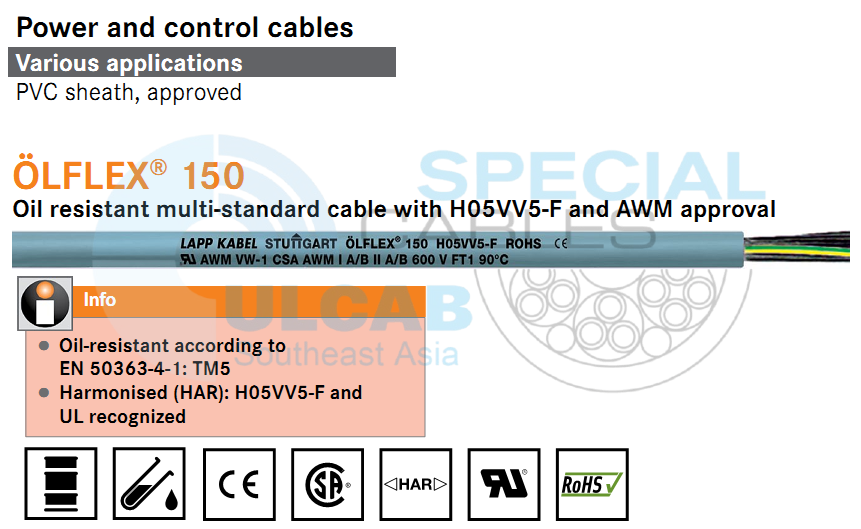

LAPP KABEL ÖLFLEX® 150
Oil resistant multi-standard cable with H05VV5-F and AWM approval
ÖLFLEX® 150 – H05VV5-F harmonised PVC control cable with UL/CSA AWM, oil-resistant and flexible for various applications, UL 600V, HAR 300/500V
- Oil-resistant according to EN 50363-4-1: TM5
- Harmonised (HAR): H05VV5-F and UL recognized
Benefits
- Wide application range due to multiple certifications
Application range
- Plant construction
Machine building
Heating and air-conditioning systems - Machine tools
- Mainly used in dry, damp and wet interiors (including water-oil mixtures), but not for outdoor use
- For fixed installation under medium mechanical loads and applications with occasional flexing with free, non-continuously recurring movement without tension load or compulsory guidance
- Note: For use of AWM (Appliance Wiring Material) cables in industrial machinery (USA) according to NFPA 79 ed. 2015: please see the catalogue appendix table T29
Product features
- Flame-retardant according to IEC 60332-1-2
and UL 1581 §1061 Cable Flame Test - Oil-resistant according to EN 50363-4-1: TM5
Norm references / approvals
- H05VV5-F (EN 50525-2-51)
- UL AWM Style 21098
CSA AWM I A/B II A/B - Multi-standard cables are designed in metric nominal cross sections in mm² or AWG/kcmil nominal sizes. The leading cross-section is specified in the table below, while the corresponding cross-section of the other system can be found in the appendix table T16 of this catalogue. For this corresponding secondary size, the conductor cross-section is generally larger.
Design
- Finely stranded bare copper wires
- PVC core insulation
- Cores twisted in layers
- PVC sheath, high oil-resistance, grey (RAL 7001)
■ Technical data
Classification
- ETIM 5.0 Class-ID: EC000104
- ETIM 5.0 Class-Description: Control cable
Core identification code
- Black with white numbers acc. to VDE 0293-1
Conductor design
- Fine wire according to VDE 0295,
class 5 / IEC 60228 class 5
Minimum bending radius
- Occasional flexing: 12.5 x outer diameter
- Fixed installation: 4 x outer diameter
Nominal voltage
- HAR U0/U: 300/500 V
- UL/CSA: 600 V
Test voltage
- 3000 V
Protective conductor
- G = with GN-YE protective conductor
- X = without protective conductor
Temperature range
- Occasional flexing:
HAR: -5°C to +70°C
UL/CSA: -5°C to +90°C - Fixed installation:
HAR: -40°C to +70°C
UL/CSA: -40°C to +90°C
| Article number |
Number of cores and mm² per conductor |
Outer diameter (mm) |
Copper index (kg/km) |
Weight (kg/km) |
| ÖLFLEX® 150 | ||||
| 0015002 | 2 X 0.5 | 5,9 | 9,6 | 47 |
| 0015003 | 3 G 0.5 | 6,2 | 14,4 | 62,4 |
| 0015004 | 4 G 0.5 | 6,8 | 19,2 | 68,2 |
| 0015005 | 5 G 0.5 | 7,4 | 24 | 87,1 |
| 0015007 | 7 G 0.5 | 9 | 33,6 | 118,7 |
| 0015012 | 12 G 0.5 | 11,1 | 58 | 198 |
| 0015018 | 18 G 0.5 | 13,2 | 86,4 | 328 |
| 0015025 | 25 G 0.5 | 16 | 120 | 380,4 |
| 0015034 | 34 G 0.5 | 18,1 | 164 | 509 |
| 0015041 | 41 G 0.5 | 19,7 | 197 | 595 |
| 0015102 | 2 X 0.75 | 6,3 | 14,4 | 61 |
| 0015103 | 3 G 0.75 | 6,7 | 21,6 | 75,6 |
| 0015104 | 4 G 0.75 | 7,2 | 28,8 | 83,9 |
| 0015105 | 5 G 0.75 | 8,1 | 36 | 113,3 |
| 0015107 | 7 G 0.75 | 9,9 | 50 | 145 |
| 0015112 | 12 G 0.75 | 12 | 86 | 244,9 |
| 0015118 | 18 G 0.75 | 14,4 | 130 | 327,7 |
| 0015125 | 25 G 0.75 | 17,1 | 180 | 466,4 |
| 0015134 | 34 G 0.75 | 19,7 | 245 | 626,5 |
| 0015141 | 41 G 0.75 | 21,6 | 296 | 748 |
| 0015202 | 2 X 1.0 | 6,6 | 19,2 | 80 |
| 0015203 | 3 G 1.0 | 7 | 28,8 | 79 |
| 0015204 | 4 G 1.0 | 7,8 | 38,4 | 98,6 |
| 0015205 | 5 G 1.0 | 8,6 | 48 | 132,1 |
| 0015206 | 6 G 1.0 | 9,5 | 57,6 | 150 |
| 0015207 | 7 G 1.0 | 10,4 | 67 | 169,3 |
| 0015212 | 12 G 1.0 | 12,8 | 115 | 285,9 |
| 0015218 | 18 G 1.0 | 15,1 | 173 | 405,2 |
| 0015225 | 25 G 1.0 | 18 | 240 | 569,5 |
| 0015234 | 34 G 1.0 | 20,9 | 326 | 741,7 |
| 0015241 | 41 G 1.0 | 22,8 | 394 | 886 |
| 0015250 | 50 G 1.0 | 25 | 480 | 1072,2 |
| 0015302 | 2 X 1.5 | 7,6 | 28,8 | 95 |
| 0015303 | 3 G 1.5 | 8,3 | 43 | 109,8 |
| 0015304 | 4 G 1.5 | 9 | 58 | 145 |
| 0015305 | 5 G 1.5 | 10,1 | 72 | 168 |
| 0015307 | 7 G 1.5 | 12,5 | 101 | 224,2 |
| 0015312 | 12 G 1.5 | 15,1 | 173 | 361,7 |
| 0015318 | 18 G 1.5 | 18 | 259 | 518,3 |
| 0015325 | 25 G 1.5 | 21,4 | 360 | 729,9 |
| 0015334 | 34 G 1.5 | 25 | 490 | 946,6 |
| 0015341 | 41 G 1.5 | 27,2 | 591 | 1136 |
| 0015402 | 2 X 2.5 | 9,2 | 48 | 159 |
| 0015403 | 3 G 2.5 | 9,9 | 72 | 170 |
| 0015404 | 4 G 2.5 | 10,8 | 96 | 210 |
| 0015405 | 5 G 2.5 | 12,1 | 120 | 257 |
| 0015407 | 7 G 2.5 | 14,7 | 168 | 340 |
| 0015412 | 12 G 2.5 | 17,9 | 288 | 580 |
| 0015418 | 18 G 2.5 | 21,6 | 432 | 850 |
| 0015425 | 25 G 2.5 | 25,6 | 600 | 1166 |
