Star Quad Microphone Cable
Model Number
L-4E5AT

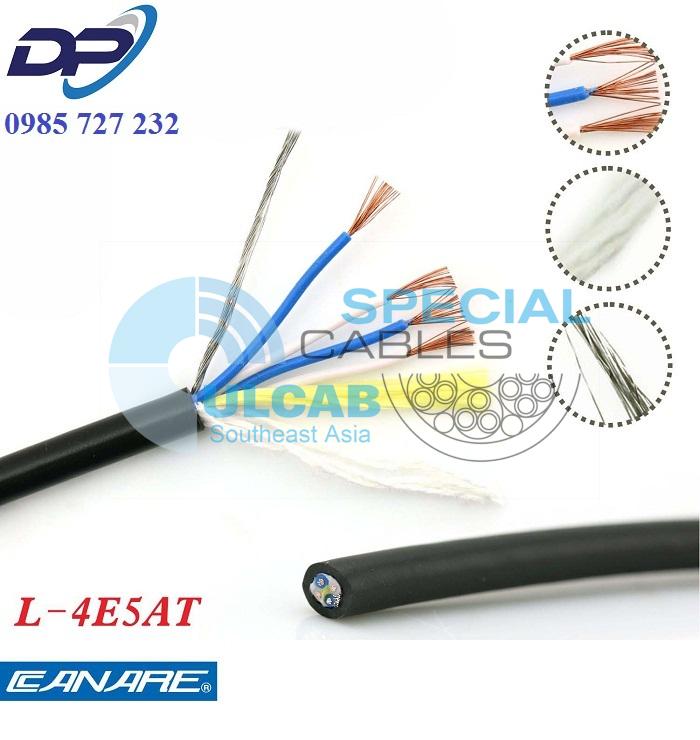

A 22 AWG nallow profile Star Quad audio cable with the same shield, drain wire and Kevlar construction style as L-4E6AT.
● Microphones.
● Permanent Installations.
● Audio Rack Wiring.
● PA Systems.
● Aluminium Foil Shield, 100% coverage.
● Built in Dupont® Kevlar 29.
● Drain Wire.
● Cross Linked PE Insulation.
● Reduced Handling Noise.
● Rejects EMI and RFI.
The Star Quad Story (Catalog PDF)
● Microphones.
● Permanent Installations.
● Audio Rack Wiring.
● PA Systems.
● Aluminium Foil Shield, 100% coverage.
● Built in Dupont® Kevlar 29.
● Drain Wire.
● Cross Linked PE Insulation.
● Reduced Handling Noise.
● Rejects EMI and RFI.
The Star Quad Story (Catalog PDF)
| Model | Std. Lng. ft. |
Wt Std. Lng. lbs |
Nom. O.D. in. |
Jacket Nom. Thick. in. |
Brittle Point F° |
No. of Cond. |
Insul.
Type* |
Cond-AWG (Qty./mil) Cross Sec. Area mil.² **Quad AWG |
Pitch Twist Quad in. |
Shield Cover- age |
| L-4E5AT | 656 (200) |
16 (7) |
.197 (5.00) |
PVC .039 (1.03) |
-22 (-30) |
4 2 Blue 2Wht |
IPE 12.6 |
AC – #25 16/4.73 279 #22 |
.83 (21) |
100% Alum Tape |
*Dielectric Strength = 500V AC/1min. Insulation Resistance/3Mft = >1000M ohm.
**Effective AWG of combined twin conductors.
**Effective AWG of combined twin conductors.
| Model | Cond. D.C.R. ohm/1000ft |
Shield D.C.R. ohm/1000ft |
Nom. Cap. *** pF/m |
Nom. Cap. † pF/m |
Nom. Imp. (ohm) |
Nom. Atten. V/1000ft |
Group Delay Time nS/ft (nS/m) |
| L-4E5AT | <32.7 (<10.7) |
– | 164 | 222 | 37 | 0.9 (0.3) |
1.71 (5.6) |
***Capacitance between twin Blue and twin White conductors.
†Capacitance between conductors to shield.
†Capacitance between conductors to shield.
| Model | Black | Blue | Brown | Gray | Green | Orange | Purple | Red | White | Yellow | |
| L-4E5AT | [+] | – – | – – | [o] | – – | – – | – – | – – | – – | – – | |
[+]=Standard Color, [o]=Available Color, “- -“=n/a
