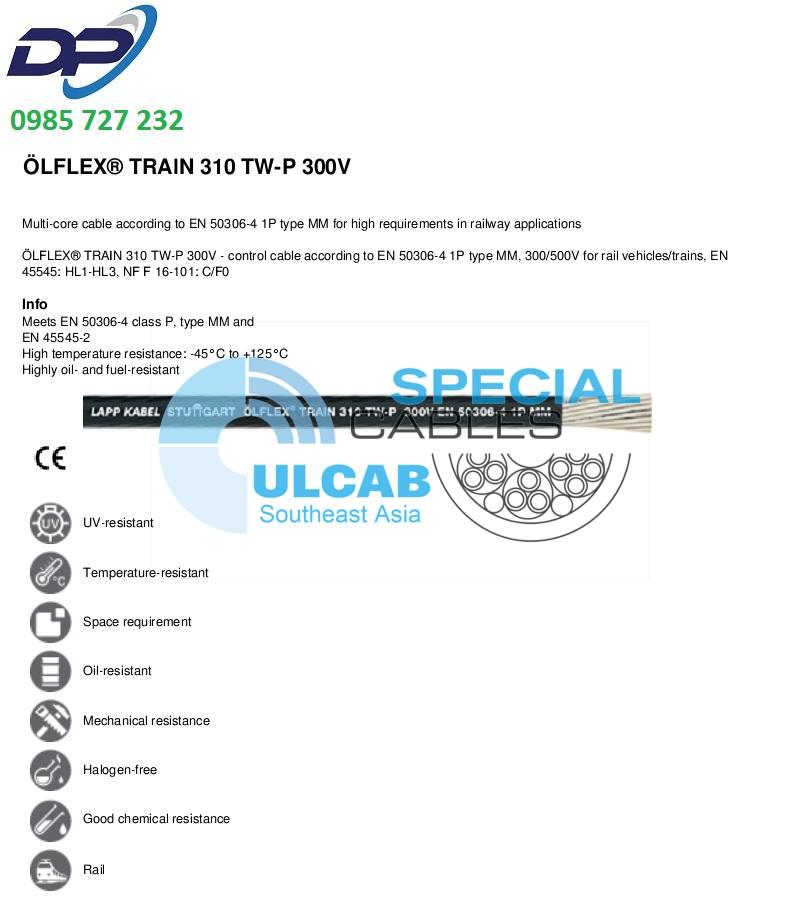

ÖLFLEX® TRAIN 310 TW-P 300V

Multi-core cable according to EN 50306-4 1P type MM for high requirements in railway applications

ÖLFLEX® TRAIN 310 TW-P 300V – control cable according to EN 50306-4 1P type MM, 300/500V for rail vehicles/trains, EN 45545: HL1-HL3, NF F 16-101: C/F0

  • Meets EN 50306-4 class P, type MM and
    EN 45545-2
  • High temperature resistance: -45°C to +125°C
  • Highly oil- and fuel-resistant

UV-resistant Temperature-resistant Space requirement Oil-resistant Mechanical resistance Halogen-free Good chemical resistance Rail Flame-retardant Cold-resistant

Benefits

  • Reduced insulation wall thickness, therefore a space-saving installation
  • Good chemical resistance
  • Resistant to mechanical influences in harsh environmental conditions
  • Extended temperature range
  • Reduced flame spreading for protection against damage to persons and property in the event of a fire

Application range

  • For use in railway vehicles and buses, for fixed and protected installation and applications where limited movement is to be expected
  • Suitable for control and monitoring circuits as well as locking circuits and internal wiring of equipment in trains and locomotives
  • Can also be used in oily environments and areas with increased ambient temperature

Product features

  • Fire behaviour in accordance with EN/IEC:
    – Halogen-free according to EN 60754-1
    – No corrosive gases according to EN 60754-2
    – No fluorine according to EN 60684-2
    – No toxic gases according to EN 50305
    – Low smoke density according to EN 61034-2
    – Flame-retardant according to EN 60332-1-2
    – No flame propagation according to EN 60332-3-24 / EN 60332-3-25 / EN 50305
  • Fire behaviour in accordance with NF:
    – Toxicity of combustion gases according to NF X 70-100
    – Low smoke density according to NF X 10-702
    – No flame propagation according to NF C 32-070, cat. C1 and C2
  • Chemical properties:
    – Oil-resistant according to EN 50306
    – Fuel-resistant according to EN 50306
    – Acid-resistant according to EN 50306
    – Alkali-resistant according to EN 50306
    – Ozone-resistant according to EN 50306

Norm references / approvals

  • EN 50306-4 class P, type MM
  • EN 45545-2 HL1, HL2, HL3
  • NF F 16-101 – classification: C / F0
    (flame propagation / smoke)

Design

  • Tin-plated copper strand, 19- or 37-wire, SRC (Special Round Conductor)
  • Insulation: Electron beam cross-linked polymer compound according to EN 50306
  • Core colour: White with black numbers
  • Sheath: Electron beam cross-linked polymer-compound S2 according to EN 50306
  • Sheath colour: Black

Classification

  • ETIM 5.0 Class-ID: EC000104
  • ETIM 5.0 Class-Description: Control cable

Core identification code

  • White with black numbers

Conductor design

  • SRC (special round conductor) 19- or 37-wire according. to EN 50306-1

Minimum bending radius

  • Fixed installation:
    ≤ 12 mm: 4 x OD / 3 x OD*
    > 12 mm: 5 x OD / 4 x OD*
    * for careful bending, once at connecting terminal
  • Occasional flexing:
    ≤ 12 mm: 5 x OD
    > 12 mm: 6 x OD
    (OD = outer diameter)

Nominal voltage

  • U0/U AC 300/500 V
    Um AC 550 V
    V0 DC 410 V
  • Fixed installation:
    U0/U AC 0.6/1 kV
    Um AC 1.2 kV
    V0 DC 0.9 kV

Test voltage

  • 3,5 kV AC; 8,4 kV DC

Protective conductor

  • G = with GN-YE protective conductor
    X = without protective conductor

Temperature range

  • Fixed installation:
    -45°C to +125°C (20,000 h)
  • Occasional flexing:
    -35°C to +105°C
    Short circuit: +160°C (5s)
Article number Number of cores and mm² per
conductor		 Outer diameter [mm] Copper index (kg/km) Weight (kg/km)
15310000 4 X 0.5 4.6 19.2 41.7
15310001 7 X 0.5 5.4 33.6 63.51
15310002 13 X 0.5 7.8 62.4 120.45
15310003 19 X 0.5 8.6 91.2 157.19
15310004 37 X 0.5 11.4 177.6 285.06
15310005 4 X 0.75 5.1 28.8 55.29
15310006 7 X 0.75 6 50.4 83.91
15310007 13 X 0.75 8.7 93.6 161.87
15310008 19 X 0.75 9.6 136.8 213.91
15310009 37 X 0.75 12.8 266.4 392.13
15310011 4 X 1 5.4 38.4 67.78
15310012 7 X 1 6.5 67.2 105.98
15310013 13 X 1 9.3 124.8 200.43
15310014 19 X 1 10.4 182.4 267.49
15310015 37 X 1 13.9 355.2 497.75
15310016 4 X 1.5 6.5 57.6 98.42
15310017 7 X 1.5 8.2 108 170.32
15310018 13 X 1.5 11.3 187.2 294.53
15310019 19 X 1.5 12.6 273.6 395.64
15310020 37 X 1.5 17 532.8 727.91
15310021 2 X 2.5 7.2 49.2 106.11
15310022 3 X 2.5 7.6 73.8 130.81
15310023 4 X 2.5 8.4 98.4 165.38
