Power and control cables
Various applications
PVC sheath, approved

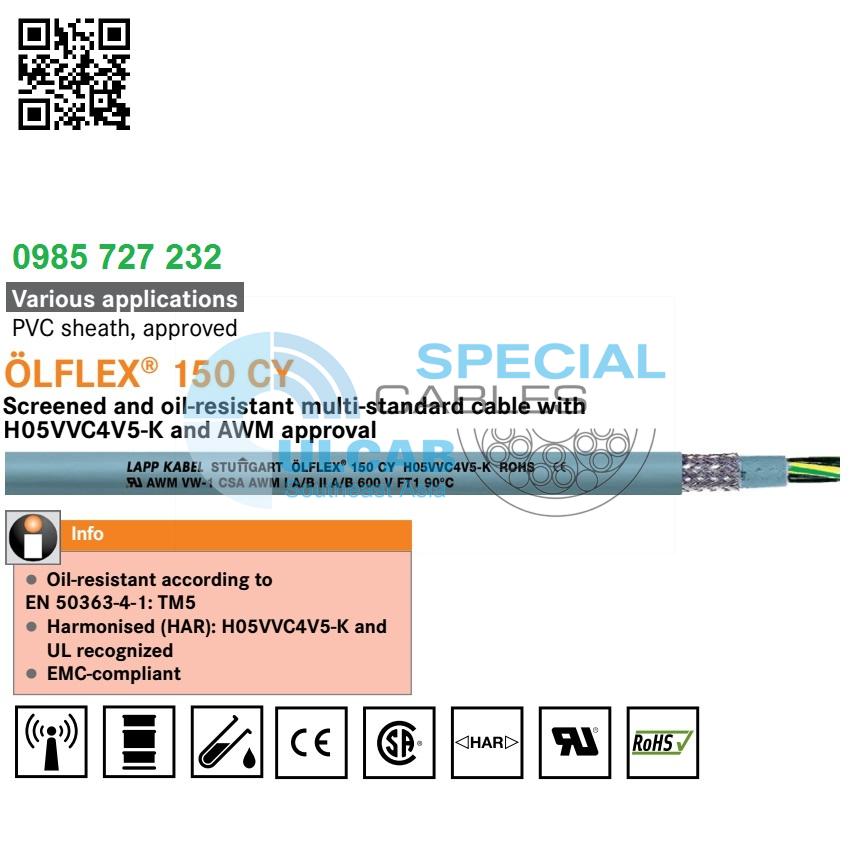

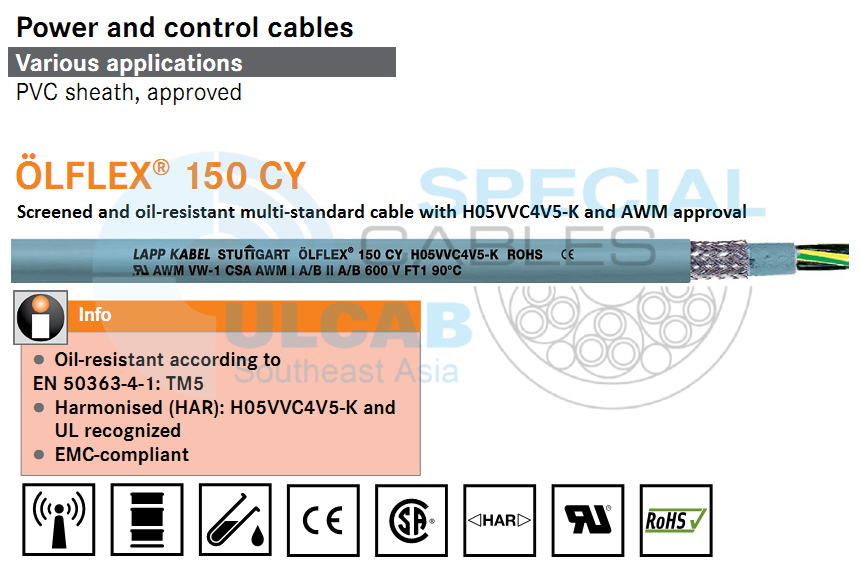

LAPP KABEL ÖLFLEX® 150 CY
Screened and oil-resistant multi-standard cable with H05VVC4V5-K and AWM approval
ÖLFLEX® 150 CY – H05VVC4V5-K harmonised PVC control cable with UL/CSA AWM, oil-resistant, shielded, flexible for various applications, UL 600V, HAR 300/500V
- Oil-resistant according to EN 50363-4-1: TM5
- Harmonised (HAR): H05VVC4V5-K and UL recognized
- EMC-compliant
Benefits
- Wide application range due to multiple certifications
Application range
- Plant construction
Machine building
Heating and air-conditioning systems - In EMC-sensitive environments
(electromagnetic compatibility) - Mainly used in dry, damp and wet interiors (including water-oil mixtures), but not for outdoor use
- For fixed installation under medium mechanical loads and applications with occasional flexing with free, non-continuously recurring movement without tension load or compulsory guidance
- Note: For use of AWM (Appliance Wiring Material) cables in industrial machinery (USA) according to NFPA 79 ed. 2015: please see the catalogue appendix table T29
Product features
- Flame-retardant according to IEC 60332-1-2
and UL 1581 §1061 Cable Flame Test - Oil-resistant according to EN 50363-4-1: TM5
- High level of screening
Low coupling resistance
(max. 250 Ω/km at 30 MHz)
Norm references / approvals
- H05VVC4V5-K (EN 50525-2-51)
- UL AWM Style 21098
CSA AWM I A/B II A/B - Multi-standard cables are designed in metric nominal cross sections in mm² or AWG/kcmil nominal sizes. The leading cross-section is specified in the table below, while the corresponding cross-section of the other system can be found in the appendix table T16 of this catalogue. For this corresponding secondary size, the conductor cross-section is generally larger.
Design
- Finely stranded bare copper wires
- PVC core insulation
- Cores twisted in layers
- PVC inner sheath, grey
- Tin-plated copper braiding
- PVC sheath, high oil-resistance, grey (RAL 7001)
■ Technical data
Classification
- ETIM 5.0 Class-ID: EC000104
- ETIM 5.0 Class-Description: Control cable
Core identification code
- Black with white numbers acc. to VDE 0293-1
Conductor design
- Fine wire according to VDE 0295,
class 5 / IEC 60228 class 5
Minimum bending radius
- Occasional flexing: 20 x outer diameter
- Fixed installation: 6 x outer diameter
Nominal voltage
- HAR U0/U: 300/500 V
- UL/CSA: 600 V
Test voltage
- 3000 V
Protective conductor
- G = with GN-YE protective conductor
- X = without protective conductor
Temperature range
- Occasional flexing:
HAR: -5°C to +70°C
UL/CSA: -5°C to +90°C - Fixed installation:
HAR: -40°C to +70°C
UL/CSA: -40°C to +90°C
| Article number | Number of cores and mm² per conductor | Outer diameter (mm) | Copper index (kg/km) | Weight (kg/km) |
| ÖLFLEX® 150 CY | ||||
| 0015602 | 2 X 0.75 | 8.5 | 40.0 | 109 |
| 0015603 | 3 G 0.75 | 8.9 | 51.0 | 125 |
| 0015604 | 4 G 0.75 | 9.6 | 70.0 | 157 |
| 0015605 | 5 G 0.75 | 10.3 | 77.0 | 180 |
| 0015607 | 7 G 0.75 | 12.3 | 93.0 | 226 |
| 0015612 | 12 G 0.75 | 14.8 | 155.0 | 325 |
| 0015702 | 2 X 1.0 | 8.8 | 46.4 | 121 |
| 0015703 | 3 G 1.0 | 9.4 | 76.0 | 145 |
| 0015704 | 4 G 1.0 | 10.0 | 80.0 | 180 |
| 0015705 | 5 G 1.0 | 11.0 | 95.0 | 203 |
| 0015707 | 7 G 1.0 | 13.0 | 118.0 | 273 |
| 0015712 | 12 G 1.0 | 15.6 | 195.0 | 425 |
| 0015802 | 2 X 1.5 | 10.0 | 59.2 | 151 |
| 0015803 | 3 G 1.5 | 10.5 | 84.0 | 159 |
| 0015804 | 4 G 1.5 | 11.4 | 94.8 | 211 |
| 0015805 | 5 G 1.5 | 12.7 | 122.0 | 241 |
| 0015807 | 7 G 1.5 | 15.1 | 143.0 | 306 |
| 0015812 | 12 G 1.5 | 17.8 | 254.0 | 480 |
| 0015903 | 3 G 2.5 | 11.9 | 120.0 | 245 |
| 0015904 | 4 G 2.5 | 13.2 | 170.0 | 295 |
| 0015905 | 5 G 2.5 | 14.7 | 205.0 | 365 |
| 0015907 | 7 G 2.5 | 17.5 | 241.0 | 480 |
