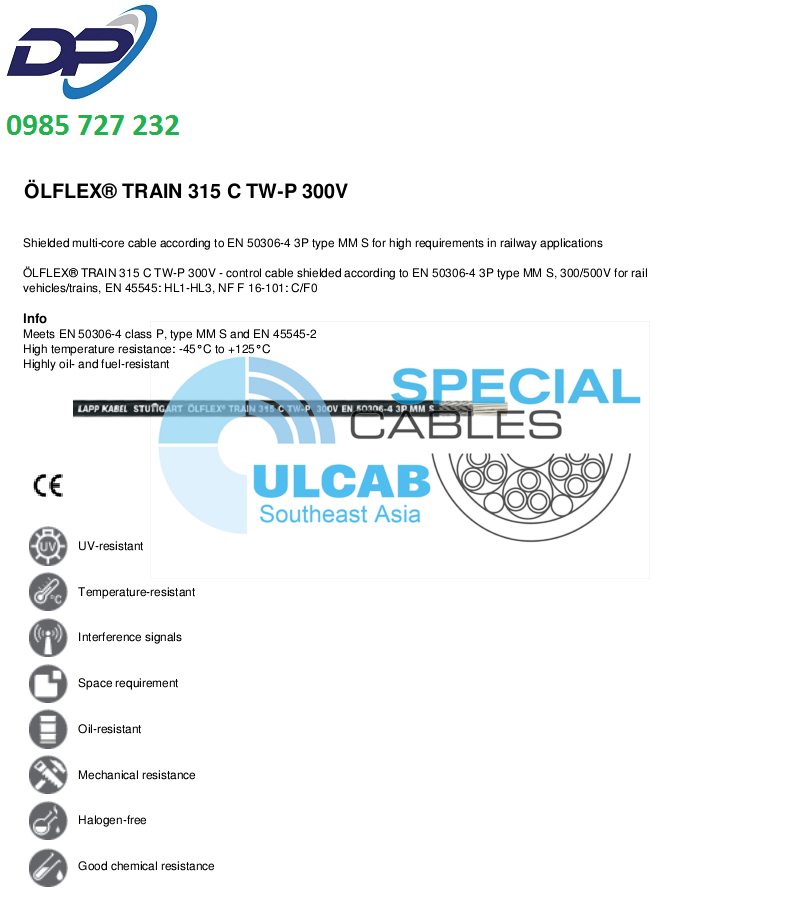

ÖLFLEX® TRAIN 315 C TW-P 300V

Shielded multi-core cable according to EN 50306-4 3P type MM S for high requirements in railway applications

ÖLFLEX® TRAIN 315 C TW-P 300V – control cable shielded according to EN 50306-4 3P type MM S, 300/500V for rail vehicles/trains, EN 45545: HL1-HL3, NF F 16-101: C/F0

  • Meets EN 50306-4 class P, type MM S and EN 45545-2
  • High temperature resistance: -45°C to +125°C
  • Highly oil- and fuel-resistant

UV-resistant Temperature-resistant Interference signals Space requirement Oil-resistant Mechanical resistance Halogen-free Good chemical resistance Rail Flame-retardant Cold-resistant

Benefits

  • Reduced insulation wall thickness, therefore a space-saving installation
  • Copper shielded complies with EMC requirements and protects against electromagnetic interference
  • Resistant to mechanical influences in harsh environmental conditions
  • Extended temperature range
  • Reduced flame spreading for protection against damage to persons and property in the event of a fire

Application range

  • In EMC-sensitive environments
  • For use in railway vehicles and buses, for fixed and protected installation and applications where limited movement is to be expected
  • Suitable for control and monitoring circuits as well as locking circuits and internal wiring of equipment in trains and locomotives
  • Can also be used in oily environments and areas with increased ambient temperature

Product features

  • Fire behaviour in accordance with EN/IEC:
    – Halogen-free according to EN 60754-1
    – No corrosive gases according to EN 60754-2
    – No fluorine according to EN 60684-2
    – No toxic gases according to EN 50305
    – Low smoke density according to EN 61034-2
    – Flame-retardant according to EN 60332-1-2
    – No flame propagation according to EN 60332-3-24 / EN 60332-3-25 / EN 50305
  • Fire behaviour in accordance with NF:
    – Toxicity of combustion gases according to NF X 70-100
    – Low smoke density according to NF X 10-702
    – No flame propagation according to NF C 32-070, cat. C1 and C2
  • Chemical properties:
    – Oil-resistant according to EN 50306
    – Fuel-resistant according to EN 50306
    – Acid-resistant according to EN 50306
    – Alkali-resistant according to EN 50306
    – Ozone-resistant according to EN 50306

Norm references / approvals

  • EN 50306-4 class P, type MM S
  • EN 45545-2 HL1, HL2, HL3
  • NF F 16-101 – classification: C / F0
    (flame propagation / smoke)

Design

  • Tin-plated copper strand, 19- or 37-wire, SRC (Special Round Conductor)
  • Insulation: Electron beam cross-linked polymer compound according to EN 50306
  • Core colour: White with black numbers
  • Wrapping: Halogen-free plastic film
  • Shield: Tin-plated copper braiding
  • Sheath: Electron beam cross-linked polymer-compound S2 according to EN 50306
  • Sheath colour: Black

Classification

  • ETIM 5.0 Class-ID: EC000104
  • ETIM 5.0 Class-Description: Control cable

Core identification code

  • White with black numbers

Conductor design

  • SRC (special round conductor) 19- or 37-wire according. to EN 50306-1

Minimum bending radius

  • Fixed installation:
    10 x outer diameter
  • Occasional flexing: 10 x outer diameter

Nominal voltage

  • U0/U AC 300/500 V
    Um AC 550 V
    V0 DC 410 V
  • Fixed installation:
    U0/U AC 0.6/1 kV
    Um AC 1.2 kV
    V0 DC 0.9 kV

Test voltage

  • Core/core: 3,5 kV AC; 8,4 kV DC
  • Core/screen: 3,5 kV AC; 8,4 kV DC

Protective conductor

  • G = with GN-YE protective conductor
    X = without protective conductor

Temperature range

  • Fixed installation:
    -45°C to +125°C (20,000 h)
  • Occasional flexing:
    -35°C to +105°C
    Short circuit: +160°C (5s)
Article number Number of cores and mm² per
conductor		 Outer diameter [mm] Copper index (kg/km) Weight (kg/km)
15315000 2 X 0.5 4.6 19366 37.82
15315001 3 X 0.5 4.8 24.88 44.57
15315002 4 X 0.5 5.2 30.87 54.47
15315003 6 X 0.5 6 42954 72.3
15315004 8 X 0.5 6.5 61263 94.36
15315005 2 X 0.75 5 25671 46.49
15315006 3 X 0.75 5.2 33711 56.09
15315007 4 X 0.75 5.7 42182 69.18
15315008 6 X 0.75 6.6 65359 96.16
15315009 8 X 0.75 7.1 83995 123.14
15315010 2 X 1 5.2 31415 54.04
15315011 3 X 1 5.5 41.97 66.42
15315012 4 X 1 6 52896 80.98
15315013 6 X 1 7.1 81745 117.48
15315014 8 X 1 8.2 105404 157.11
15315015 2 X 1.5 6.2 44094 73.57
15315016 3 X 1.5 6.5 65526 94.52
15315017 4 X 1.5 7.1 82137 118.46
15315018 6 X 1.5 8.8 117216 171.64
15315019 8 X 1.5 9.5 151.94 222.26
15315020 2 X 2.5 7.8 75424 119.8
15315021 3 X 2.5 8.2 102072 150.37
15315022 4 X 2.5 9 129754 190.63
