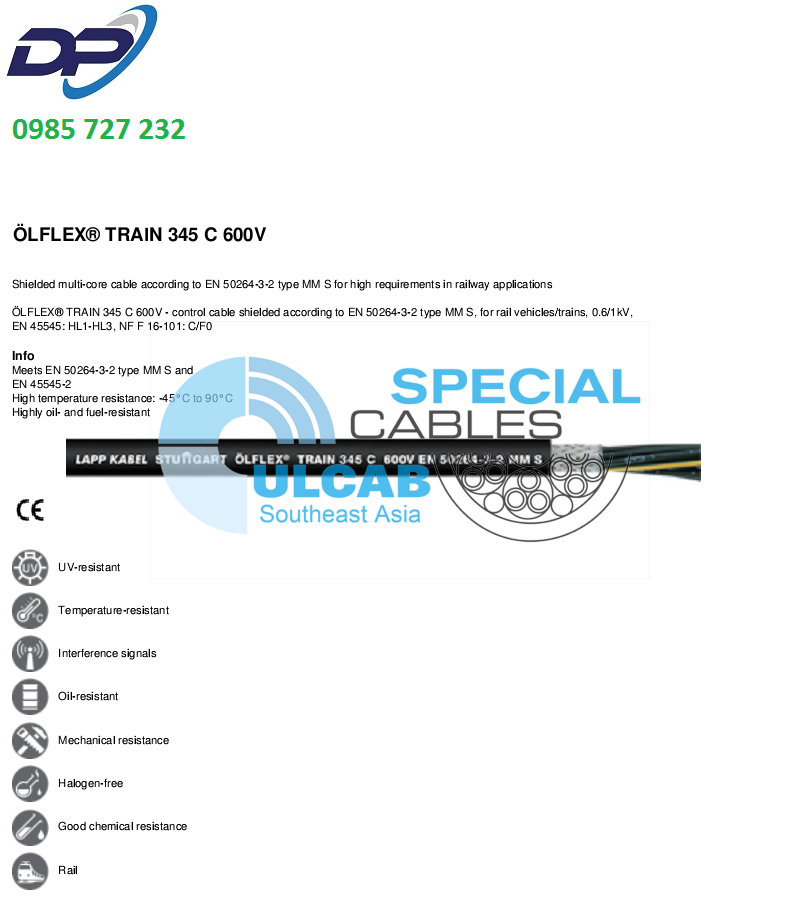

ÖLFLEX® TRAIN 345 C 600V

Shielded multi-core cable according to EN 50264-3-2 type MM S for high requirements in railway applications

ÖLFLEX® TRAIN 345 C 600V – control cable shielded according to EN 50264-3-2 type MM S, for rail vehicles/trains, 0.6/1kV, EN 45545: HL1-HL3, NF F 16-101: C/F0

  • Meets EN 50264-3-2 type MM S and
    EN 45545-2
  • High temperature resistance: -45°C to 90°C
  • Highly oil- and fuel-resistant

UV-resistant Temperature-resistant Interference signals Oil-resistant Mechanical resistance Halogen-free Good chemical resistance Rail Flame-retardant Cold-resistant

Benefits

  • Copper shielded complies with EMC requirements and protects against electromagnetic interference
  • Good chemical resistance
  • Resistant to mechanical influences in harsh environmental conditions
  • Extended temperature range
  • Reduced flame spreading for protection against damage to persons and property in the event of a fire

Application range

  • For use in railway vehicles and buses, for fixed installation and applications where limited movement is to be expected
  • Suitable for connecting lamps, heating equipment, switchgear, terminal boxes and power supply
  • Can also be used in oily environments and areas with increased ambient temperature

Product features

  • Fire behaviour in accordance with EN/IEC:
    – Halogen-free according to EN 60754-1
    – No corrosive gases according to EN 60754-2
    – No fluorine according to EN 60684-2
    – No toxic gases according to EN 50305
    – Low smoke density according to EN 61034-2
    – Flame-retardant according to EN 60332-1-2
    – No flame propagation according to EN 60332-3-24 / EN 60332-3-25 / EN 50305
  • Fire behaviour in accordance with NF:
    – Toxicity of combustion gases according to NF X 70-100
    – Low smoke density according to NF X 10-702
    – No flame propagation according to NF C 32-070, cat. C1 and C2
  • Chemical properties:
    – Oil-resistant according to EN 50264-3-2
    – Fuel-resistant according to EN 50264-3-2
    – Acid-resistant according to EN 50264-3-2
    – Alkali-resistant according to EN 50264-3-2
    – Ozone-resistant according to EN 50264-3-2/
    EN 50305)

Norm references / approvals

  • EN 50264-3-2 type MM S
  • EN 45545-2 HL1, HL2, HL3
  • NF F 16-101 – classification: C / F0
    (flame propagation / smoke)

Design

  • Conductor: Finely stranded wire made of tin-plated copper
  • Insulation: Electron beam cross-linked polymer compound EI 109
  • Core colour: Black with white numbers
  • Wrapping: Halogen-free plastic film
  • Shield: Tin-plated copper braiding
  • Sheath: Electron beam cross-linked polymer-compound EM 104
  • Sheath colour: Black

Classification

  • ETIM 5.0 Class-ID: EC000104
  • ETIM 5.0 Class-Description: Control cable

Core identification code

  • Black with white numbers

Conductor design

  • Fine-wired according to IEC 60228 / VDE 0295, braided conductor class 5

Minimum bending radius

  • Fixed installation:
    ≤ 12 mm: 3 x OD
    > 12 mm: 4 x OD
  • Occasional flexing:
    ≤ 12 mm: 4 x OD
    > 12 mm ≤ 20 mm: 5 x OD
    > 20 mm: 6 x OD
    (OD = outer diameter)

Nominal voltage

  • U0/U AC 0.6/1 kV
  • Um AC 1.2 kV
    V0 DC 0.9 kV

Test voltage

  • Core/core: 3,5 kV AC; 8,4 kV DC
  • Core/screen: 3,5 kV AC; 8,4 kV DC

Protective conductor

  • G = with GN-YE protective conductor
    X = without protective conductor

Temperature range

  • Fixed installation: -45°C to +90°C
  • Occasional flexing:
    -35°C to +90°C
    Short circuit: +200°C (5s)
Article number Number of cores and mm² per
conductor		 Outer diameter [mm] Copper index (kg/km) Weight (kg/km)
15345000 2 X 1.5 8.2 57.35 125.3
15345001 3 X 1.5 8.7 73.27 149.1
15345025 3 G 1.5 8.7 73.27 149.1
15345002 4 X 1.5 9.4 90.92 180.3
15345026 4 G 1.5 9.4 90.92 180.3
15345003 2 X 2.5 9 80.38 160
15345004 3 X 2.5 9.5 107.46 196.2
15345027 3 G 2.5 9.5 107.46 196.2
15345005 4 X 2.5 10.8 147.08 258.5
15345028 4 G 2.5 10.8 147.08 258.5
15345006 2 X 4 10.8 126.68 237.2
15345007 3 X 4 11.4 167.66 289.6
15345008 4 X 4 12.4 210.89 353.9
15345009 2 X 6 11.8 171.91 294.3
15345010 3 X 6 12.5 233.52 368.3
15345011 4 X 6 14 297.39 470.2
15345012 2 X 10 14.2 258.83 427.9
15345013 3 X 10 15.2 378.94 571.9
15345014 4 X 10 16.6 485.83 711.2
15345015 2 X 16 16.4 411.94 637.3
15345016 3 X 16 17.8 574.29 836.3
15345017 4 X 16 19.4 741.03 1,040.40
15345018 2 X 25 20.2 608.98 939.8
15345019 3 X 25 21.4 861.67 1,219.10
15345020 4 X 25 24.1 1,147.27 1,601.30
15345021 2 X 35 23.2 852.85 1,286.70
15345022 3 X 35 24.6 1,203.78 1,668.20
15345023 2 X 50 27.6 1,175.17 1,732.80
15345024 3 X 50 29.8 1,710.69 2,336.30
