Power and control cables
Various applications
PVC sheath, approved

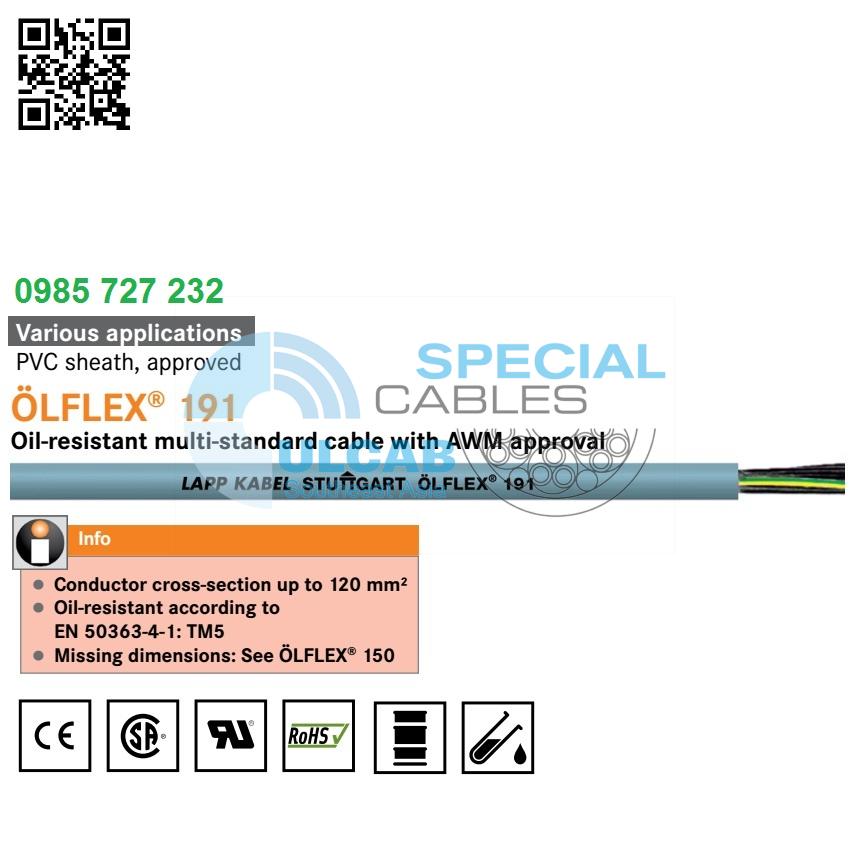

LAPP KABEL ÖLFLEX® 191
Oil-resistant multi-standard cable with AWM approval
ÖLFLEX® 191 – PVC control cable with UL/CSA AWM, oil-resistant and flexible for various applications, UL/CSA: 600V, HAR: 300/500V
- Conductor cross-section up to 120 mm²
- Further dimensions with 0.5 and 0.75 mm²: see ÖLFLEX® 150
- Oil-resistant according to EN 50363-4-1: TM5
Benefits
- High electrical safety due to 4 kV test voltage
- For various applications
Application range
- Plant construction
Machine building
Heating and air-conditioning systems - Machine tools
- Mainly used in dry, damp and wet interiors (including water-oil mixtures), but not for outdoor use
- For fixed installation under medium mechanical loads and applications with occasional flexing with free, non-continuously recurring movement without tension load or compulsory guidance
- Note: For use of AWM (Appliance Wiring Material) cables in industrial machinery (USA) according to NFPA 79 ed. 2015: please see the catalogue appendix table T29
Product features
- Flame-retardant according to IEC 60332-1-2
and UL 1581 §1061 Cable Flame Test - Oil-resistant according to EN 50363-4-1: TM5
Norm references / approvals
- UL AWM Style 21098
CSA AWM I A/B II A/B - Multi-standard cables are designed in metric nominal cross sections in mm² or AWG/kcmil nominal sizes. The leading cross-section is specified in the table below, while the corresponding cross-section of the other system can be found in the appendix table T16 of this catalogue. For this corresponding secondary size, the conductor cross-section is generally larger.
Design
- Finely stranded bare copper wires
- PVC core insulation
- Cores twisted in layers
- PVC sheath, high oil-resistance, grey (RAL 7001)
■ Technical data
Classification
- ETIM 5.0 Class-ID: EC000104
- ETIM 5.0 Class-Description: Control cable
Core identification code
- Black with white numbers acc. to VDE 0293-1
Conductor design
- Fine wire according to VDE 0295,
class 5 / IEC 60228 class 5
Minimum bending radius
- Occasional flexing: 15 x outer diameter
- Fixed installation: 4 x outer diameter
Nominal voltage
- HAR U0/U: 300/500 V
- UL/CSA: 600 V
Test voltage
- 4000 V
Protective conductor
- G = with GN-YE protective conductor
- X = without protective conductor
Temperature range
- Occasional flexing: -5°C to +70°C
UL/CSA: -5°C to +90°C - Fixed installation: -40°C to +70°C
UL/CSA: -40°C to +90°C
| Article number |
Number of cores and mm² per conductor |
Outer diameter (mm) |
Copper index (kg/km) |
Weight (kg/km) |
| 0011222 | 7 G 0.75 | 8,3 | 50,4 | 116 |
| 0011223 | 9 G 0.75 | 10,5 | 64,8 | 152 |
| 0011224 | 12 G 0.75 | 11,2 | 86,4 | 194 |
| 0011113 | 3 G 1.0 | 6,7 | 28,8 | 66 |
| 0011114 | 4 G 1.0 | 7,2 | 38,4 | 81 |
| 0011115 | 5 G 1.0 | 8,1 | 48 | 95 |
| 0011116 | 7 G 1.0 | 8,9 | 67,2 | 125 |
| 0011117 | 12 G 1.0 | 12 | 115,2 | 211 |
| 0011118 | 18 G 1.0 | 14,4 | 172,8 | 309 |
| 0011119 | 25 G 1.0 | 17,3 | 240 | 413 |
| 0011136 | 2 X 1.5 | 6,9 | 28,8 | 74 |
| 0011137 | 3 G 1.5 | 7,3 | 44 | 91 |
| 0011138 | 4 G 1.5 | 8,2 | 58 | 112 |
| 0011139 | 5 G 1.5 | 9 | 72 | 136 |
| 0011140 | 7 G 1.5 | 10 | 101 | 179 |
| 0011125 | 9 G 1.5 | 12,6 | 129,6 | 230 |
| 0011142 | 12 G 1.5 | 13,4 | 173 | 313 |
| 0011143 | 18 G 1.5 | 16,1 | 260 | 444 |
| 0011144 | 25 G 1.5 | 19,5 | 360 | 620 |
| 0011150 | 3 G 2.5 | 8,4 | 72 | 138 |
| 0011151 | 4 G 2.5 | 9,1 | 96 | 182 |
| 0011152 | 5 G 2.5 | 10,2 | 120 | 216 |
| 0011153 | 7 G 2.5 | 11,3 | 168 | 286 |
| 0011160 | 3 G 4 | 9,9 | 115,2 | 202 |
| 0011161 | 4 G 4 | 10,8 | 154 | 245 |
| 0011162 | 5 G 4 | 12,1 | 192 | 310 |
| 0011167 | 7 G 4 | 13,4 | 268,8 | 470 |
| 0011165 | 4 G 6 | 13 | 231 | 398 |
| 0011166 | 5 G 6 | 14,5 | 288 | 479 |
| 0011169 | 4 G 10 | 16,5 | 384 | 559 |
| 0011170 | 5 G 10 | 18,4 | 480 | 782 |
| 0011172 | 4 G 16 | 22,1 | 615 | 904 |
| 0011173 | 5 G 16 | 24,3 | 768 | 1171 |
| 0011175 | 4 G 25 | 25,2 | 960 | 1299 |
| 0011176 | 5 G 25 | 28 | 1,200.0 | 1640 |
| 0011178 | 4 G 35 | 28,1 | 1,344.0 | 2119 |
| 0011179 | 5 G 35 | 31,5 | 1,680.0 | 2606 |
| 0011205 | 4 G 50 | 35,7 | 1,920.0 | 2898 |
| 0011206 | 4 G 70 | 43 | 2,688.0 | 4052 |
| 0011207 | 4 G 95 | 47,2 | 3,648.0 | 5430 |
| 0011208 | 4 G 120 | 54,2 | 4,608.0 | 6290 |
