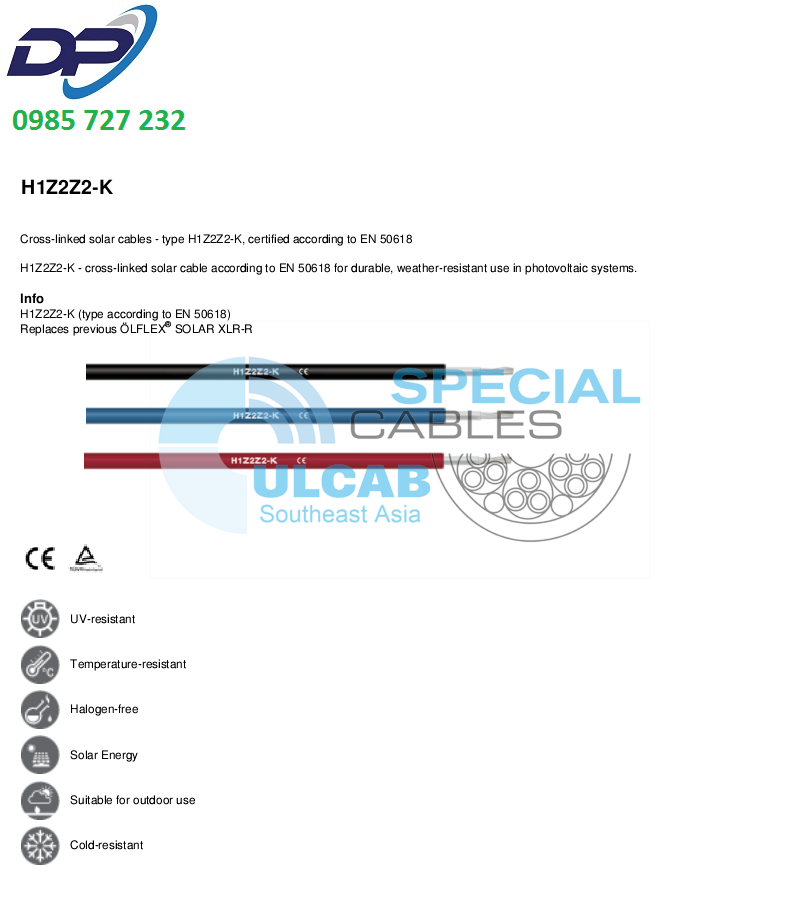

H1Z2Z2-K
Cross-linked solar cables – type H1Z2Z2-K, certified according to EN 50618
H1Z2Z2-K – cross-linked solar cable according to EN 50618 for durable, weather-resistant use in photovoltaic systems.
- H1Z2Z2-K (type according to EN 50618)
- Replaces previous ÖLFLEX® SOLAR XLR-R
Benefits
- Reduction of flame propagation and of toxic gases in the event of fire
- Robust against mechanical impacts
- For outdoor applications
Application range
- For use in PV systems with a rated voltage of 1500 V DC
- For the cabling solar modules and for connecting the module series with the inverter
- Gable and flat roof photovoltaic systems
- Photovoltaic and solar parks
- Flexible or building-integrated PV systems
Product features
- Flame-retardant according to IEC 60332-1-2
- Weather-/UV-resistant according to EN 50618, appendix E
- Ozone-resistant according to EN 50396
- Good notch and abrasion resistance
- Halogen-free according to IEC 60754-1
(amount of halogen acidic gas)
Corrosiveness of combustion gases according to IEC 60754-2 (degree of acidity)
Norm references / approvals
- H1Z2Z2-K (type according to EN 50618)
- Versions with other cross-sections on request
Design
- Fine-wire, tin-plated copper conductor
- Coreinsulation made of cross-linked copolymer
- Core colour: white
- Outer sheath made of cross-linked copolymer
- Sheath colour: black, red or blue
Classification
- ETIM 5.0 Class-ID: EC001578
- ETIM 5.0 Class-Description: Flexible cable
Conductor design
- Fine wire according to VDE 0295,
class 5 / IEC 60228 class 5
Minimum bending radius
- Fixed installation: 4 x outer diameter
Nominal voltage
- AC U0/U: 1.0/1.0 kV
DC U0/U: 1.5/1.5 kV
Max. permissible operating voltage:
DC 1.8 kV
Test voltage
- AC 6500 V
Current load capacity
- In compliance with EN 50618, table A.3
Temperature range
- -40°C to +120°C max. conductor temperature based on EN 60216-1
Ambient temperature range according to EN 50618: -40°C to +90°C
| Article number | Conductor cross-section (mm²) | Outer diameter [mm] | Copper index (kg/km) | Weight (kg/km) |
| Core insulation: white / outer sheath: black | ||||
| 1023552 | 4 | 5.8 | 38.4 | 62 |
| 1023553 | 6 | 6.3 | 57.6 | 84 |
| 1023554 | 10 | 7.4 | 96 | 126 |
| 1023555 | 16 | 8.1 | 153.6 | 197 |
| 1023590 | 25 | 10.3 | 240 | 270 |
| 1023591 | 35 | 11.8 | 336 | 370 |
| Core insulation: white / outer sheath: red | ||||
| 1023572 | 4 | 5.8 | 38.4 | 62 |
| 1023573 | 6 | 6.3 | 57.6 | 84 |
| 1023574 | 10 | 7.4 | 96 | 126 |
| 1023575 | 16 | 8.1 | 153.6 | 197.00 |
| Core insulation: white / outer sheath: blue | ||||
| 1023582 | 4 | 5.8 | 38.4 | 62.00 |
| 1023583 | 6 | 6.3 | 57.6 | 84.00 |
| 1023584 | 10 | 7.4 | 96 | 126.00 |
| 1023585 | 16 | 8.1 | 153.6 | 197.00 |
