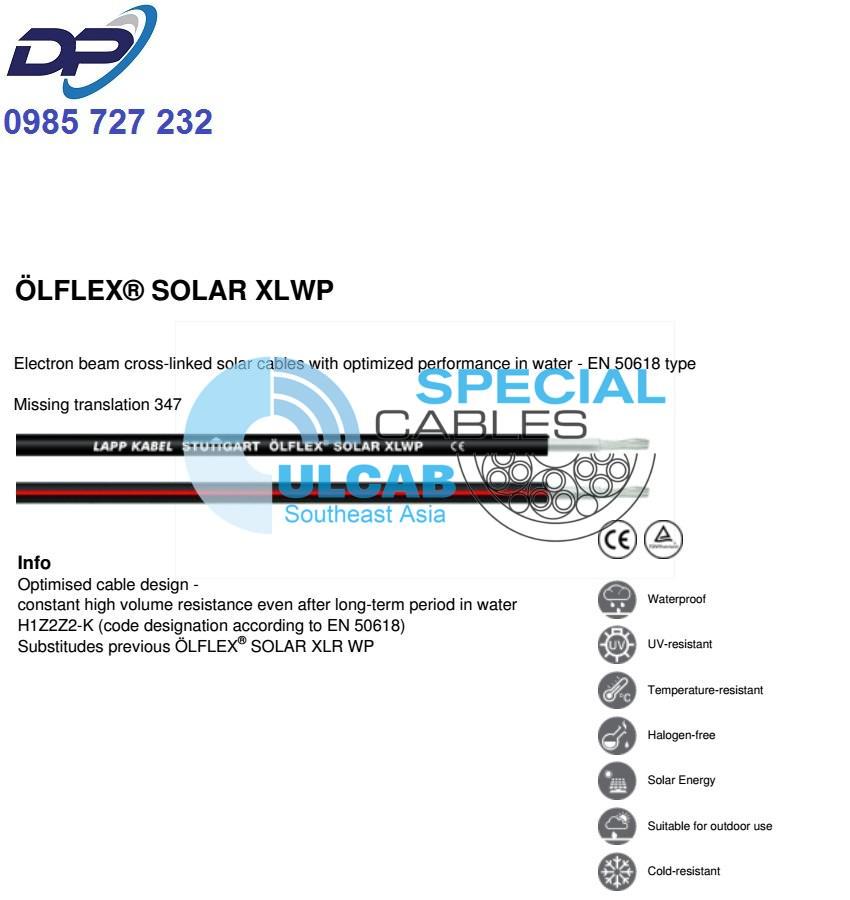

ÖLFLEX® SOLAR XLWP
Electron beam cross-linked solar cables with improved performance in water – EN 50618 type
ÖLFLEX® SOLAR XLWP, electron beam cross-linked solar cable with optimized performance in water
- Optimised cable design –
constant high contact resistance even after a long period in water - H1Z2Z2-K (type according to EN 50618)
- Replaces previous ÖLFLEX® SOLAR XLR WP
Benefits
- The alternative for long-term storage in water, e.g. as may be the case after flooding or in buried conduits
- Reduction of flame propagation and of toxic gases in the event of fire
- Robust against mechanical impacts
- Extruded colour stripe serves as reverse polarity protection during installation
- Exact quantity control during installation by meter marking on the cable sheath
Application range
- For underground installation in protective pipes, in which water, heat and moisture can accumulate
- For floating PV / canal top installations where cables are in contact with water or exposed to high humidity (see data sheet for more details)
- Gable and flat roof photovoltaic systems
- Photovoltaic and solar parks
- Suitable for direct burial: see data sheet
Product features
- Weather-/UV-resistant according to EN 50618, appendix E
- Ozone-resistant according to EN 50396
- Halogen-free and flame-retardant
- Good notch and abrasion resistance
- XLWP = X-Linked Water-Proof
Proven electron beam cross-linked quality
Norm references / approvals
- H1Z2Z2-K (type according to EN 50618)
- Versions with other cross-sections on request
Design
- Fine-wire, tin-plated copper conductor
- Core insulation made of electron beam cross-linked copolymer
- Core colour: white
- Outer sheath made of electron beam cross-linked copolymer
- Outer sheath colour: black or black with red stripe
Classification
- ETIM 5.0 Class-ID: EC001578
- ETIM 5.0 Class-Description: Flexible cable
Conductor design
- Fine wire according to VDE 0295,
class 5 / IEC 60228 class 5
Minimum bending radius
- Fixed installation: 4 x outer diameter
Nominal voltage
- AC U0/U: 1.0/1.0 kV
DC U0/U: 1.5/1.5 kV
Max. permissible operating voltage:
DC 1.8 kV
Test voltage
- AC 6500 V
Current load capacity
- In compliance with EN 50618, table A.3
Temperature range
- -40°C to +120°C max. conductor temperature based on EN 60216-1
Ambient temperature range according to EN 50618: -40°C to +90°C
| Article number | Conductor cross-section (mm²) | Outer diameter [mm] | Copper index (kg/km) | Weight (kg/km) |
| Core insulation: white / outer sheath: black | ||||
| 1023601 | 4 | 5.8 | 38.4 | 68.1 |
| 1023602 | 6 | 6.4 | 57.6 | 91.6 |
| 1023603 | 10 | 7.6 | 96 | 138.6 |
| 1023604 | 16 | 9.1 | 153.6 | 209.7 |
| Core insulation: white / outer sheath: black with red stripe | ||||
| 1023621 | 4 | 5.8 | 38.4 | 68.1 |
| 1023622 | 6 | 6.4 | 57.6 | 91.6 |
| 1023623 | 10 | 7.6 | 96 | 138.6 |
| 1023624 | 16 | 9.1 | 153.6 | 209.70 |
