ÖLFLEX® SOLAR XLS-R

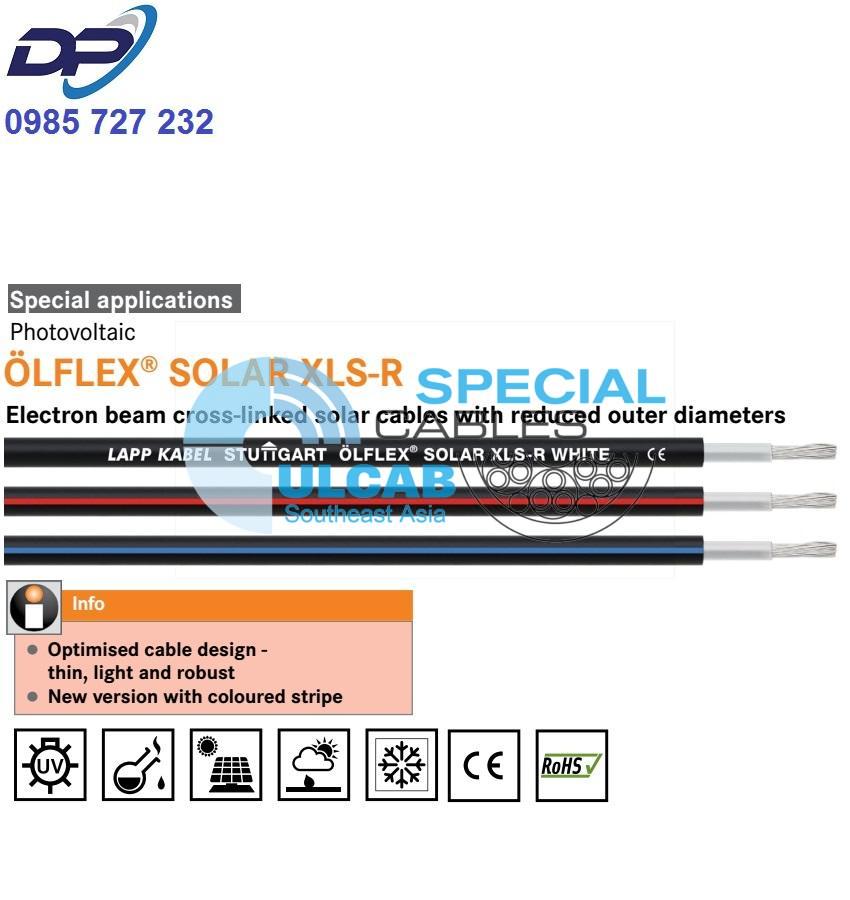

Electron beam cross-linked solar cables with reduced outer diameters
ÖLFLEX® SOLAR XLS-R – halogen-free electron beam cross-linked solar cable for durable and weather-resistant use in photovoltaic systems
Optimised cable design –
thin, light and robust
Benefits
- Reduced outer diameters enable space- and weight-saving installation
- Robust against mechanical impacts
- Reduction of flame propagation and of toxic gases in the event of fire
- Extruded colour stripe serves as reverse polarity protection during installation
- Exact quantity control during installation by meter marking on the cable sheath
Application range
- For the cabling solar modules and for connecting the module series with the inverter
- Gable and flat roof photovoltaic systems
- Photovoltaic and solar parks
- Flexible or building-integrated PV systems
- Not suitable for direct burial, installation according to IEC 60364-5-52 or HD 60364-5-52
Product features
- Weather-/UV-resistant according to HD 605/A1
- Ozone-resistant according to EN 50396
- Halogen-free and flame-retardant
- Good notch and abrasion resistance
- XLS-R = X-Linked Standard – Reduced
Proven electron beam cross-linked quality
Design
- Fine-wire, tin-plated copper conductor
- Core insulation made of electron beam cross-linked copolymer
- Core colour: white
- Outer sheath made of electron beam cross-linked copolymer
- Outer sheath colour: black or black with red or blue stripe
Classification
- ETIM 5.0 Class-ID: EC001578
- ETIM 5.0 Class-Description: Flexible cable
Conductor design
- Fine wire according to VDE 0295,
class 5 / IEC 60228 class 5
Minimum bending radius
- Fixed installation: 4 x outer diameter
Nominal voltage
- AC U0/U: 600/1000 V
DC U0/U: 900/1500 V
Max. permissible operating voltage:
DC 1.8 kV (conductor-conductor, non-earthed system)
Test voltage
- AC 6500 V
Temperature range
- Fixed installation: -40°C to +100°C max. conductor temperature
| Article number | Conductor cross-section (mm²) | Outer diameter [mm] | Copper index (kg/km) | Weight (kg/km) |
| ÖLFLEX®SOLAR XLS-R | ||||
| Core insulation: white / Outer sheath: black | ||||
| 0023100 | 1.5 | 4.4 | 14.4 | 34 |
| 0023136 | 2.5 | 4.8 | 24 | 46 |
| 0023137 | 4 | 5.2 | 38.4 | 63 |
| 0023138 | 6 | 5.8 | 57.6 | 86 |
| 0023104 | 10 | 7 | 96 | 132 |
| 0023105 | 16 | 8.3 | 153.6 | 197 |
| Core insulation: white / Outer sheath: black with red stripe | ||||
| 0023390 | 2.5 | 4.8 | 24 | 46 |
| 0023391 | 4 | 5.2 | 38.4 | 63.00 |
| 0023392 | 6 | 5.8 | 57.6 | 86.00 |
| 0023393 | 10 | 7 | 96 | 132.00 |
| 0023394 | 16 | 8.3 | 153.6 | 197.00 |
| Core insulation: white / Outer sheath: black with blue stripe | ||||
| 0023395 | 2.5 | 4.8 | 24 | 46.00 |
| 0023396 | 4 | 5.2 | 38.4 | 63.00 |
| 0023397 | 6 | 5.8 | 57.6 | 86.00 |
| 0023398 | 10 | 7 | 96 | 132 |
| 0023399 | 16 | 8.3 | 153.6 | 197 |
