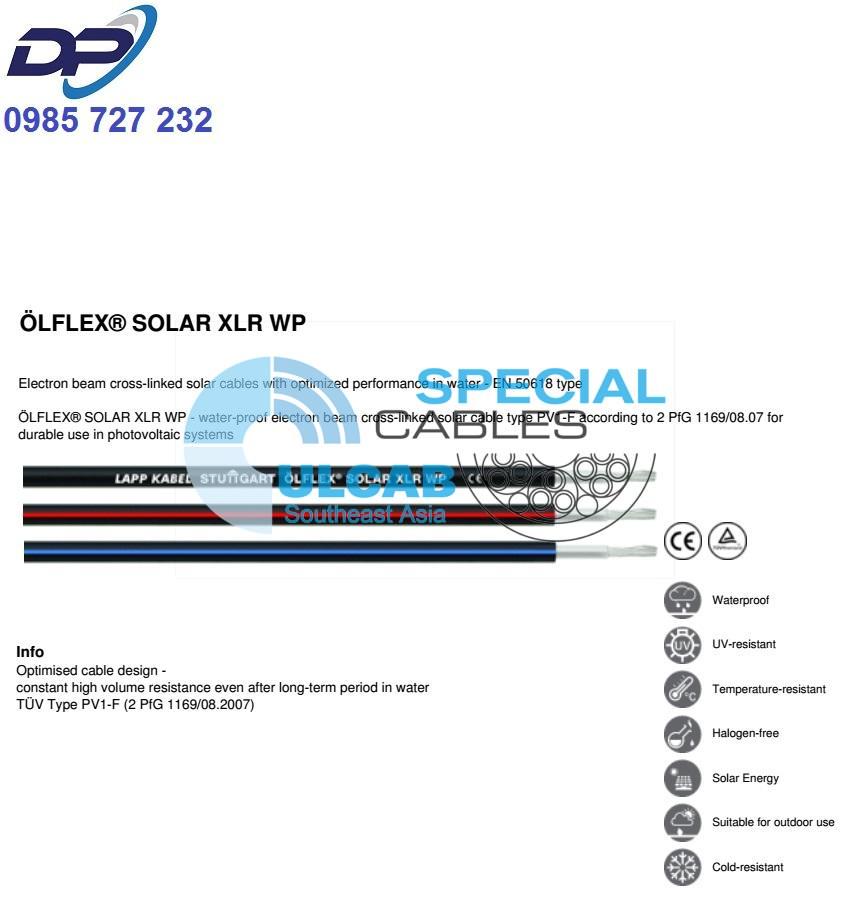

ÖLFLEX® SOLAR XLR WP
Electron beam cross-linked solar cables with improved performance in water – EN 50618 type
ÖLFLEX® SOLAR XLR WP – electron beam cross-linked solar cable type PV1-F according to TÜV 2PfG 1169/08.07 for durable, weather-resistant use in photovoltaic systems
- Optimised cable design –
constant high contact resistance even after a long period in water - TÜV type PV1-F (2 PfG 1169/08.2007)
Benefits
- The alternative for long-term storage in water, e.g. as may be the case after flooding or in buried conduits
- Reduction of flame propagation and of toxic gases in the event of fire
- Robust against mechanical impacts
- Extruded colour stripe serves as reverse polarity protection during installation
- Exact quantity control during installation by meter marking on the cable sheath
Application range
- For underground installation in protective pipes, in which water, heat and moisture can accumulate
- For the cabling solar modules and for connecting the module series with the inverter
- Gable and flat roof photovoltaic systems
- Photovoltaic and solar parks
- Suitable for direct burial: see data sheet
Product features
- Weather-/UV-resistant according to HD 605/A1
- Ozone-resistant according to EN 50396
- Halogen-free and flame-retardant
- Good notch and abrasion resistance
- XLR WP = X-Linked Radiated Water-Proof
Proven electron beam cross-linked quality
Norm references / approvals
- PV1-F (TÜV type tested according to2 PfG 1169/08.2007)
Design
- Fine-wire, tin-plated copper conductor
- Core insulation made of electron beam cross-linked copolymer
- Core colour: white
- Outer sheath made of electron beam cross-linked copolymer
- Outer sheath colour: black or black with red or blue stripe
Classification
- ETIM 5.0 Class-ID: EC001578
- ETIM 5.0 Class-Description: Flexible cable
Conductor design
- Fine wire according to VDE 0295,
class 5 / IEC 60228 class 5
Minimum bending radius
- Fixed installation: 4 x outer diameter
Nominal voltage
- AC U0/U: 600/1000 V
DC U0/U: 900/1500 V
Max. permissible operating voltage:
DC 1.8 kV (conductor-conductor, non-earthed system)
Test voltage
- AC 6500 V
Current load capacity
- In compliance with TÜV 2 PfG 1169/08.2007, table 1
Temperature range
- -40°C to +120°C max. conductor temperature based on EN 60216-1
Ambient temperature according to TÜV 2 PfG 1169/08.07: -40°C to +90°C
| Article number | Conductor cross-section (mm²) | Outer diameter [mm] | Copper index (kg/km) | Weight (kg/km) |
| Core insulation: white / outer sheath: black | ||||
| 1023501 | 2.5 | 5.2 | 24 | 48 |
| 1023502 | 4 | 5.6 | 38.4 | 65 |
| 1023504 | 10 | 7.4 | 96 | 135 |
| 1023505 | 16 | 8.7 | 153.6 | 207 |
| Core insulation: white / outer sheath: black with red stripe | ||||
| 1023521 | 2.5 | 5.2 | 24 | 48 |
| 1023522 | 4 | 5.6 | 38.4 | 65.00 |
| 1023523 | 6 | 6.2 | 57.6 | 88.00 |
| 1023524 | 10 | 7.4 | 96 | 135.00 |
| 1023525 | 16 | 8.7 | 153.6 | 207.00 |
| Core insulation: white / outer sheath: black with blue stripe | ||||
| 1023526 | 2.5 | 5.2 | 24 | 48.00 |
| 1023527 | 4 | 5.6 | 38.4 | 65.00 |
| 1023528 | 6 | 6.2 | 57.6 | 88.00 |
| 1023529 | 10 | 7.4 | 96 | 135 |
| 1023530 | 16 | 8.7 | 153.6 | 207 |
