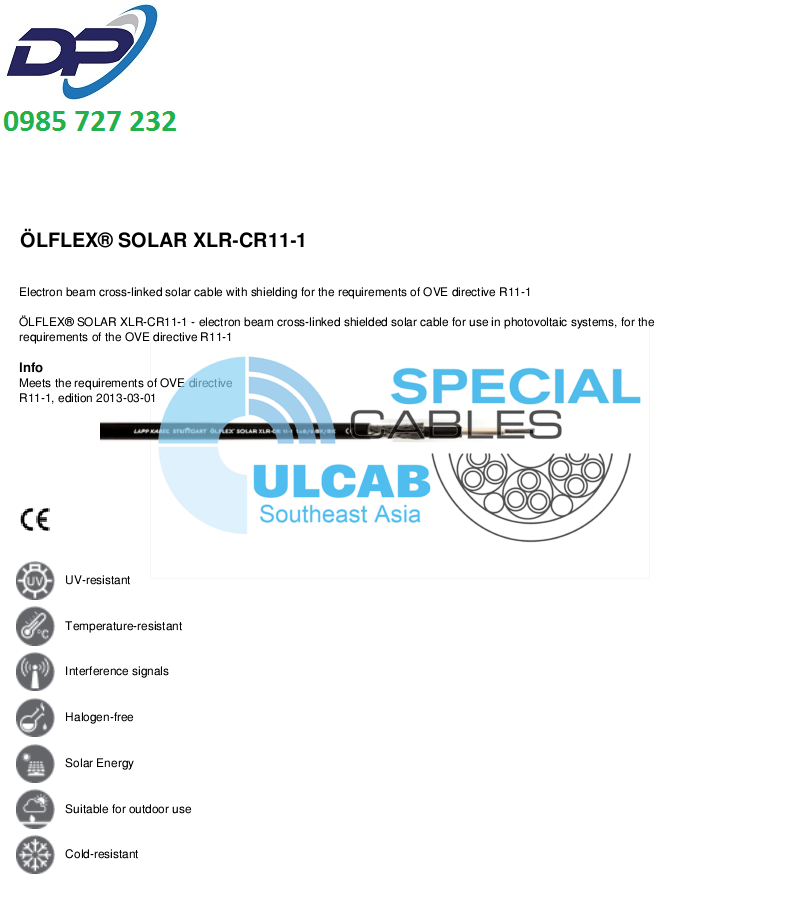

ÖLFLEX® SOLAR XLR-CR11-1
Electron beam cross-linked solar cable with shielding for the requirements of OVE directive R11-1
ÖLFLEX® SOLAR XLR-CR11-1 – electron beam cross-linked shielded solar cable for use in photovoltaic systems, for the requirements of the OVE directive R11-1
Meets the requirements of OVE directive
R11-1, edition 2013-03-01
Benefits
- Meets the requirements of OVE directive
R11-1, edition 2013-03-01 - Reduction of flame propagation and of toxic gases in the event of fire
- Robust against mechanical impacts
Application range
- For installation as a DC solar cable with shielding
- For the cabling solar modules and for connecting the module series with the inverter
- Gable and flat roof photovoltaic systems
- Flexible or building-integrated PV systems
Product features
- Minimum cross-section of the braided shield corresponds to the conductor cross-section taking into account the conductivity
- Shield conductivity ≥ conductor conductivity
- Weather-/UV-resistant according to HD 605/A1
Ozone-resistant according to EN 50396 - Halogen-free and flame-retardant
- Good notch and abrasion resistance
Norm references / approvals
- Based on TÜV specification 2 PfG 1169/08.2007
Design
- Fine-wire, tin-plated copper conductor
- Core insulation made of electron beam cross-linked copolymer
- Core colour: white
- Tin-plated copper braiding
- Outer sheath made of electron beam cross-linked copolymer
- Sheath colour: Black
Classification
- ETIM 5.0 Class-ID: EC001578
- ETIM 5.0 Class-Description: Flexible cable
Conductor design
- Fine wire according to VDE 0295,
class 5 / IEC 60228 class 5
Minimum bending radius
- Fixed installation: 4 x outer diameter
Nominal voltage
- AC U0/U: 600/1000 V
DC U0/U: 900/1500 V
Max. permissible operating voltage:
DC 1.8 kV (conductor-conductor, non-earthed system)
Test voltage
- AC 6500 V
Current load capacity
- In compliance with TÜV 2 PfG 1169/08.2007, table 1
Temperature range
- -40°C to +120°C max. conductor temperature based on EN 60216-1
Ambient temperature: -40°C to +90°C
| Article number | Article designation | Outer diameter [mm] | Copper index (kg/km) | Weight (kg/km) |
| ÖLFLEX® SOLAR XLR-CR11-1 | ||||
| 1023539 | ÖLFLEX® SOLAR XLR-CR11-1 1×6/6 BK/BK |
10.2 | 122.77 | 194 |
