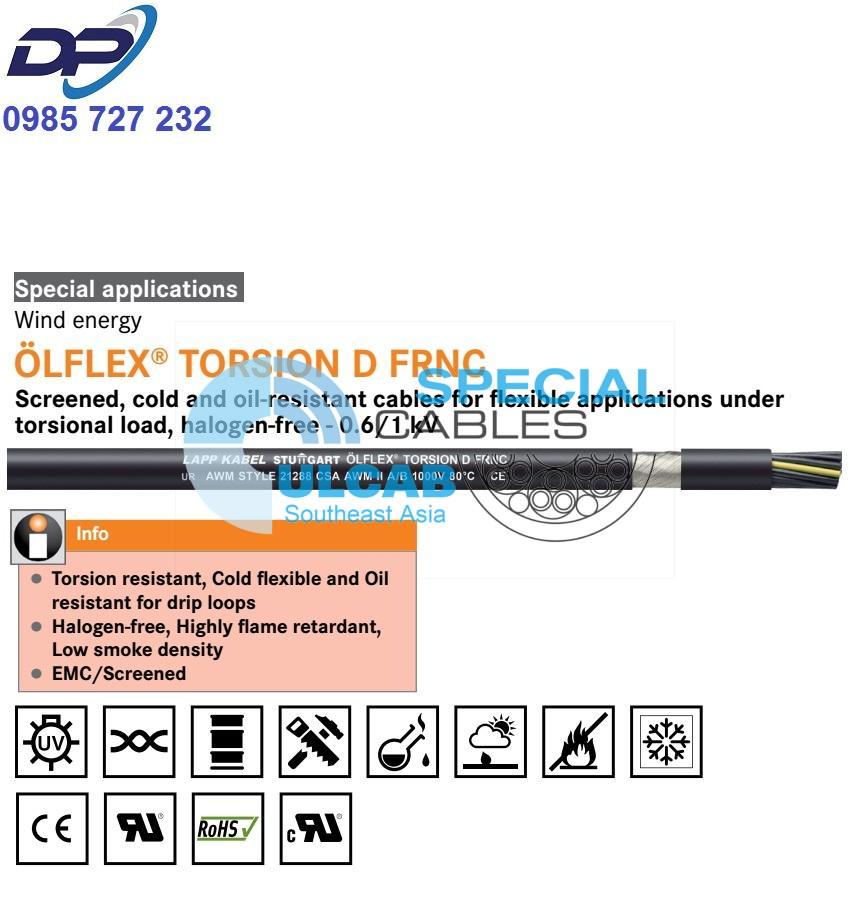

ÖLFLEX® TORSION D FRNC
Cold- and oil-resistant cables for flexible applications under torsional load, halogen-free – 0.6/1 kV
ÖLFLEX® TORSION D FRNC, cULus AWM (II A/B) OIL RES I+II, power and control cable 0.6/1 kV, drip loop/wind energy torsion -40°C/+90°C, HFFR/ LS0H, shielded
- Torsion-resistant, flexible at cold temperatures and oil-resistant for drip loops
- Halogen-free, highly flame-retardant, low smoke density
Classification
- ETIM 5.0 Class-ID: EC000104
- ETIM 5.0 Class-Description: Control cable
Core identification code
- HD 308 coloured up to 5 cores, from 6 cores all black with white numbers (except PE)
- Pair signal cables: DIN 47100
Conductor design
- IEC 60228, Cl. 6
Torsion application in WTG
- TW-0 & TW-2, refer to appendix T0
Minimum bending radius
- Flexible: 10x Outer diameter
- Stationary: 6x Outer diameter
Nominal voltage
- IEC U0/U=0.6/1kV; UL 1kV
Test voltage
- C/C: 4000 V
C/S: 2000 V
Temperature range
- -40°C to +90°C (UL +80°C)
| Article number | Number of cores and mm² per conductor |
Outer diameter [mm] | Copper index (kg/km) | Weight (kg/km) |
| ÖLFLEX® TORSION D FRNC – shielded | ||||
| 1150111 | 4 x 2.0 x 0.5 | 11.9 | 71 | 205 |
| 1150115 | 12 x 2.0 x 0.5 | 18.3 | 188 | 518 |
| 1150121 | 4 x 2.0 x 0.75 | 12.7 | 90 | 232 |
| 1150125 | 12 x 2.0 x 0.75 | 19.8 | 258 | 603 |
| 1150221 | 18 G 0.75 | 15.2 | 180 | 402 |
| 1150228 | 50 G 0.75 | 24.9 | 470 | 1,079.00 |
