Extension- and compensating cables, single-paired

PVC, silicone, FEP or glass fibre insulated

Extension and compensating cables, single-paired version – suitable for use in temperature measurement and manufacturing process control

  • Available in many different designs
  • New: Thermocouple cables type K

Norm references / approvals

  • Space-saving and flexible
  • For more detailed information, see appendix T8 and data sheets

Application range

  • Allows temperature measurement even in places where non-contact temperature measurement is not possible or expedient
  • In combination with a sheath thermocouple in the area of temperature measurement or production process control. The insulation material should be selected with reference to the maximum ambient temperature at the connection head of the thermocouple.
  • Conductor materials (alloys): Fe/CuNi (LX, JX)
    Conductor alloys are identical to thermocouple alloys
  • NiCr/Ni (K, KX, KCA)
    K and KX version – conductor alloys are identical to thermocouple alloys
    KCA version: Compensating alloys (for KCA: Fe/CuNi), not identical to thermocouple alloys
  • PtRh/Pt (RCB, SCB)
    Compensating alloys (for RCB, SCB: Cu/CuNi) are not identical to thermocouple alloys

Norm references / approvals

  • Colour code DIN 43710 Negative conductor and outer sheath:Fe/CuNi: blueNiCr/Ni: greenPtRh/Pt: whitePositive conductor: always rotIEC 60 584Positive conductor and sheath:Fe/CuNi: blackNiCr/Ni: greenPtRh/Pt: orangeNegative conductor: always white

Design

  • Design abbreviations:PVC: polyvinylchloride
    SIL: silicone rubber
    GL: glass silk
    FEP: fluorinated ethylene propylene
    EGL: E-glass
    C: Copper braiding
    ST: aluminium foil shield
    S: Steel wire braiding
  • Design example PVC-PVC-S-PVC:
    – PVC core insulation
    – PVC inner sheath
    – Steel wire braiding
    – PVC outer sheath

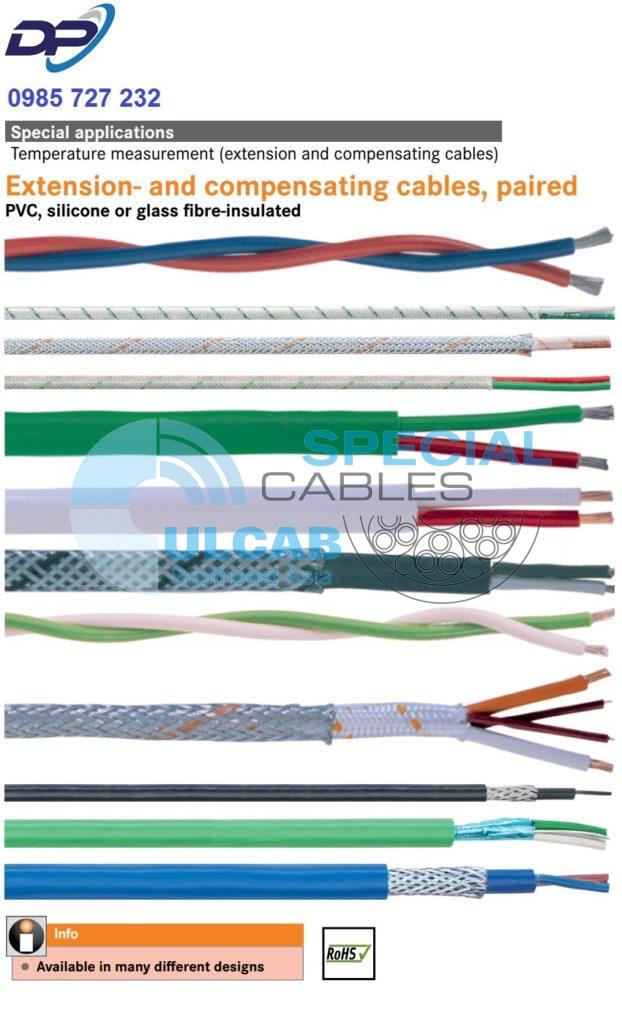

  • Examples shown (top to bottom):
    Fe/CuNi DIN 2×1.5 PVC
    NiCr/Ni IEC 2×1.5 GL-GL
    PtRh/Pt IEC 2×1.5 GL-GL-S
    NiCr/Ni DIN 2×1.5 SIL-GL
    NiCr/Ni DIN 2×1.5 PVC-PVC
    PtRh/Pt DIN 2×1.5 SIL-SIL
    Fe/CuNi IEC 2×1.5 SIL-SIL-S
    NiCr/Ni IEC 2×1.5 SIL
    PtRh/Pt IEC 2×1.5 SIL-GL-S
    Fe/CuNi IEC 2×0.22 PVC-PVC-C-PVC
    NiCr/Ni IEC 2×1.5 PVC-ST-PVC
    Fe/CuNi DIN 2×1.5 PVC-PVC-S-PVC

Classification

  • ETIM 5.0 Class-ID: EC000838
  • ETIM 5.0 Class-Description: Thermo-compensation cable

Based on

  • Limit deviation in accordance with DIN and IEC in accordance with class 2

Conductor design

  • 1.5 mm²: approx. 48 x 0.20 mm
    0.75 mm²: approx. 24 x 0.20 mm
    0.5 mm²: approx. 16 x 0.20 mm
    0.22 mm²: approx. 7 x 0.20 mm

Minimum bending radius

  • Without metal braiding:
    12 x cable diameter
  • with metal braiding:
    15 x cable diameter

Temperature range

  • (referring to insulation and sheath materials)
    PVC: -5°C to +80°C
    Silicone: -25°C to +180°C
    Glass fibre: -25°C to +200°C
    FEP: -100°C to +205°C
    E-glass: -25°C to +400°C
Article number Reference/article
designation		 Thermocouple Design Cable design Number of cores and
mm² per conductor		 Outer diameter [mm] Weight (kg/km)
0.22 mm² extension and compensating cables
0151051 KE 9-022 L Fe/CuNi DIN LX PVC-PVC 2 x 0.22 4 22
0161051 KE 9-022 L Fe/CuNi IEC JX PVC-PVC 2 x 0.22 4 22
0152051 KN 9-022 L NiCr/Ni DIN KCA PVC-PVC 2 x 0.22 4 22
0162051 KN 9-022 L NiCr/Ni IEC KCA PVC-PVC 2 x 0.22 4 22
0153051 KP 9-022 L PtRh/Pt DIN RCB, SCB PVC-PVC 2 x 0.22 4 22
0163051 KP 9-022 L PtRh/Pt IEC RCB, SCB PVC-PVC 2 x 0.22 4 22
0151052 KE 5-022 L-CY Fe/CuNi DIN LX PVC-PVC-C-PVC 2 x 0.22 4.9 31
0161052 KE 5-022 L-CY Fe/CuNi IEC JX PVC-PVC-C-PVC 2 x 0.22 4.9 31
0152052 KN 5-022 L-CY NiCr/Ni DIN KCA PVC-PVC-C-PVC 2 x 0.22 4.9 31
0162052 KN 5-022 L-CY NiCr/Ni IEC KCA PVC-PVC-C-PVC 2 x 0.22 4.9 31
0153052 KP 5-022 L-CY PtRh/Pt DIN RCB, SCB PVC-PVC-C-PVC 2 x 0.22 4.9 31
0163052 KP 5-022 L-CY PtRh/Pt IEC RCB, SCB PVC-PVC-C-PVC 2 x 0.22 4.9 31
1161011 KN FEP-SIL NiCr/Ni IEC KCA FEP-SIL 2 x 0.22 3.8 22
1161007 K FEP-C-FEP NiCr/Ni IEC K FEP-C-FEP 2 x 0.22 3 22
Thermocouple cables type K, 0.5 mm
1161008 K FEP-FEP NiCr/Ni IEC K FEP-FEP oválný 2 x 0.5 2.4 x 1.5 45
1161009 K GL-GL NiCr/Ni IEC K EGL-EGL oválný 2 x 0.5 2.3 x 1.3 45
0.5 mm² extension and compensating cables
0151030 KE 91 L Fe/CuNi DIN LX PVC-PVC 2 x 0.5 5.4 45
0161030 KE 91 L Fe/CuNi IEC JX PVC-PVC 2 x 0.5 5.4 45
0152040 KN 91 L NiCr/Ni DIN KCA PVC-PVC 2 x 0.5 5.4 45
0162040 KN 91 L NiCr/Ni IEC KCA PVC-PVC 2 x 0.5 5.4 45
0151040 KE 41 L-SIL Fe/CuNi DIN LX SIL-SIL-S oval 2 x 0.5 6.4 x 4.4 51
0161040 KE 41 L-SIL Fe/CuNi IEC JX SIL-SIL-S oval 2 x 0.5 6.4 x 4.4 51
0152030 KN 41 L-SIL NiCr/Ni DIN KCA SIL-SIL-S oval 2 x 0.5 6.4 x 4.4 51
0162030 KN 41 L-SIL NiCr/Ni IEC KCA SIL-SIL-S oval 2 x 0.5 6.4 x 4.4 51
0.75 mm² extension and compensating cables
0151035 KE 92 L Fe/CuNi DIN LX PVC-PVC 2 x 0.75 6 56
0161035 KE 92 L Fe/CuNi IEC JX PVC-PVC 2 x 0.75 6 56
0152045 KN 92 L NiCr/Ni DIN KCA PVC-PVC 2 x 0.75 6 56
0162045 KN 92 L NiCr/Ni IEC KCA PVC-PVC 2 x 0.75 6 56
0151050 KE 42 L-SIL Fe/CuNi DIN LX SIL-SIL-S oval 2 x 0.75 6.4 x 4.4 58
0161050 KE 42 L-SIL Fe/CuNi IEC JX SIL-SIL-S oval 2 x 0.75 6.4 x 4.4 58
0152035 KN 42 L-SIL NiCr/Ni DIN KCA SIL-SIL-S oval 2 x 0.75 6.4 x 4.4 58
0162035 KN 42 L-SIL NiCr/Ni IEC KCA SIL-SIL-S oval 2 x 0.75 6.4 x 4.4 58
PVC-insulated versions 1.5 mm²
0151001 KE 1 L Fe/CuNi DIN LX PVC 2 x 1.5 5.4 40
0161001 KE 1 L Fe/CuNi IEC JX PVC 2 x 1.5 5.4 40
0152001 KN 1 L NiCr/Ni DIN KCA PVC 2 x 1.5 5.4 40
0162001 KN 1 L NiCr/Ni IEC KCA PVC 2 x 1.5 5.4 40
0151010 KE 9 L Fe/CuNi DIN LX PVC-PVC round 2 x 1.5 7.1 79
0161010 KE 9 L Fe/CuNi IEC JX PVC-PVC round 2 x 1.5 7.1 79
0152010 KN 9 L NiCr/Ni DIN KCA PVC-PVC round 2 x 1.5 7.1 79
0162010 KN 9 L NiCr/Ni IEC KCA PVC-PVC round 2 x 1.5 7.1 79
0154010 KXN 9 L NiCr/Ni DIN KX PVC-PVC round 2 x 1.5 7.1 79
0164010 KXN 9 L NiCr/Ni IEC KX PVC-PVC round 2 x 1.5 7.1 79
0153010 KP 9 L PtRh/Pt DIN RCB, SCB PVC-PVC round 2 x 1.5 7.1 79
0163010 KP 9 L PtRh/Pt IEC RCB, SCB PVC-PVC round 2 x 1.5 7.1 79
0151017 KE 12 L Fe/CuNi DIN LX PVC-PVC oval 2 x 1.5 7.2 x 4.4 69
0161017 KE 12 L Fe/CuNi IEC JX PVC-PVC oval 2 x 1.5 7.2 x 4.4 69
0152017 KN 12 L NiCr/Ni DIN KCA PVC-PVC oval 2 x 1.5 7.2 x 4.4 69
0162017 KN 12 L NiCr/Ni IEC KCA PVC-PVC oval 2 x 1.5 7.2 x 4.4 69
0154011 KE 20 L Fe/CuNi DIN LX PVC-ST-PVC 2 x 1.5 7.6 85
0164011 KE 20 L Fe/CuNi IEC JX PVC-ST-PVC 2 x 1.5 7.6 85
0154012 KN 20 L NiCr/Ni DIN KCA PVC-ST-PVC 2 x 1.5 7.6 85
0164012 KN 20 L NiCr/Ni IEC KCA PVC-ST-PVC 2 x 1.5 7.6 85
0154013 KXN 20 L NiCr/Ni DIN KX PVC-ST-PVC 2 x 1.5 7.6 85
0164013 KXN 20 L NiCr/Ni IEC KX PVC-ST-PVC 2 x 1.5 7.6 85
0154014 KP 20 L PtRh/Pt DIN RCB, SCB PVC-ST-PVC 2 x 1.5 7.6 85
0164014 KP 20 L PtRh/Pt IEC RCB, SCB PVC-ST-PVC 2 x 1.5 7.6 85
0151011 KE 9 L-S Fe/CuNi DIN LX PVC-PVC-S 2 x 1.5 8 140
0161011 KE 9 L-S Fe/CuNi IEC JX PVC-PVC-S 2 x 1.5 8 140
0152011 KN 9 L-S NiCr/Ni DIN KCA PVC-PVC-S 2 x 1.5 8 140
0162011 KN 9 L-S NiCr/Ni IEC KCA PVC-PVC-S 2 x 1.5 8 140
0157514 KE 9 L-SY Fe/CuNi DIN LX PVC-PVC-S-PVC 2 x 1.5 10.3 160
0167514 KE 9 L-SY Fe/CuNi IEC JX PVC-PVC-S-PVC 2 x 1.5 10.3 160
0157513 KN 9 L-SY NiCr/Ni DIN KCA PVC-PVC-S-PVC 2 x 1.5 10.3 160
0167513 KN 9 L-SY NiCr/Ni IEC KCA PVC-PVC-S-PVC 2 x 1.5 10.3 160
0157515 KP 9 L-SY PtRh/Pt DIN RCB, SCB PVC-PVC-S-PVC 2 x 1.5 10.3 160
0167515 KP 9 L-SY PtRh/Pt IEC RCB, SCB PVC-PVC-S-PVC 2 x 1.5 10.3 160
Silicone-insulated versions 1.5 mm²
0151003 KE 1 L-SIL Fe/CuNi DIN LX SIL 2 x 1.5 5.4 40
0161003 KE 1 L-SIL Fe/CuNi IEC JX SIL 2 x 1.5 5.4 40
0152003 KN 1 L-SIL NiCr/Ni DIN KCA SIL 2 x 1.5 5.4 40
0162003 KN 1 L-SIL NiCr/Ni IEC KCA SIL 2 x 1.5 5.4 40
0151022 KE 15 L-SIL Fe/CuNi DIN LX SIL-SIL round 2 x 1.5 7 76
0161022 KE 15 L-SIL Fe/CuNi IEC JX SIL-SIL round 2 x 1.5 7 76
0152022 KN 15 L-SIL NiCr/Ni DIN KCA SIL-SIL round 2 x 1.5 7 76
0162022 KN 15 L-SIL NiCr/Ni IEC KCA SIL-SIL round 2 x 1.5 7 76
0153022 KP 15 L-SIL PtRh/Pt DIN RCB, SCB SIL-SIL round 2 x 1.5 7 76
0163022 KP 15 L-SIL PtRh/Pt IEC RCB, SCB SIL-SIL round 2 x 1.5 7 76
0151023 KE 15 L-SIL-S Fe/CuNi DIN LX SIL-SIL-S round 2 x 1.5 7.8 105
0161023 KE 15 L-SIL-S Fe/CuNi IEC JX SIL-SIL-S round 2 x 1.5 7.8 105
0152023 KN 15 L-SIL-S NiCr/Ni DIN KCA SIL-SIL-S round 2 x 1.5 7.8 105
0162023 KN 15 L-SIL-S NiCr/Ni IEC KCA SIL-SIL-S round 2 x 1.5 7.8 105
0153023 KP 15 L-SIL-S PtRh/Pt DIN RCB, SCB SIL-SIL-S round 2 x 1.5 7.8 105
0163023 KP 15 L-SIL-S PtRh/Pt IEC RCB, SCB SIL-SIL-S round 2 x 1.5 7.8 105
0151007 KE 4 L-SIL-S Fe/CuNi DIN LX SIL-SIL-S oval 2 x 1.5 8 x 5.2 85
0161007 KE 4 L-SIL-S Fe/CuNi IEC JX SIL-SIL-S oval 2 x 1.5 8 x 5.2 85
0152007 KN 4 L-SIL-S NiCr/Ni DIN KCA SIL-SIL-S oval 2 x 1.5 8 x 5.2 85
0162007 KN 4 L-SIL-S NiCr/Ni IEC KCA SIL-SIL-S oval 2 x 1.5 8 x 5.2 85
0153007 KP 4 L-SIL-S PtRh/Pt DIN RCB, SCB SIL-SIL-S oval 2 x 1.5 8 x 5.2 85
0163007 KP 4 L-SIL-S PtRh/Pt IEC RCB, SCB SIL-SIL-S oval 2 x 1.5 8 x 5.2 85
0151019 KE 13 L-SIL Fe/CuNi DIN LX SIL-GL oval 2 x 1.5 6 x 3.3 50
0161019 KE 13 L-SIL Fe/CuNi IEC JX SIL-GL oval 2 x 1.5 6 x 3.3 50
0152019 KN 13 L-SIL NiCr/Ni DIN KCA SIL-GL oval 2 x 1.5 6 x 3.3 50
0162019 KN 13 L-SIL NiCr/Ni IEC KCA SIL-GL oval 2 x 1.5 6 x 3.3 50
0153019 KP 13 L-SIL PtRh/Pt DIN RCB, SCB SIL-GL oval 2 x 1.5 6 x 3.3 50
0151015 KE 11 L-SIL-S Fe/CuNi DIN LX SIL-GL-S 2 x 1.5 6.7 82
0161015 KE 11 L-SIL-S Fe/CuNi IEC JX SIL-GL-S 2 x 1.5 6.7 82
0152015 KN 11 L-SIL-S NiCr/Ni DIN KCA SIL-GL-S 2 x 1.5 6.7 82
0162015 KN 11 L-SIL-S NiCr/Ni IEC KCA SIL-GL-S 2 x 1.5 6.7 82
0153015 KP 11 L-SIL-S PtRh/Pt DIN RCB, SCB SIL-GL-S 2 x 1.5 6.7 82
0163015 KP 11 L-SIL-S PtRh/Pt IEC RCB, SCB SIL-GL-S 2 x 1.5 6.7 82
1161012 KP 11 L-SIL-S NiCr/Ni IEC KCA SIL-GL-S oválný 2 x 1.5 6.8 x 4.1 82
Glass fibre-insulated versions 1.5 mm²
0151005 KE 3 L Fe/CuNi DIN LX GL-GL oval 2 x 1.5 5.1 x 2.7 64
0161005 KE 3 L Fe/CuNi IEC JX GL-GL oval 2 x 1.5 5.1 x 2.7 64
0152005 KN 3 L NiCr/Ni DIN KCA GL-GL oval 2 x 1.5 5.1 x 2.7 64
0162005 KN 3 L NiCr/Ni IEC KCA GL-GL oval 2 x 1.5 5.1 x 2.7 64
0153005 KP 3 L PtRh/Pt DIN RCB, SCB GL-GL oval 2 x 1.5 5.1 x 2.7 64
0163005 KP 3 L PtRh/Pt IEC RCB, SCB GL-GL oval 2 x 1.5 5.1 x 2.7 64
0151006 KE 4 L-S Fe/CuNi DIN LX GL-GL-S oval 2 x 1.5 5.9 x 3.7 87
0161006 KE 4 L-S Fe/CuNi IEC JX GL-GL-S oval 2 x 1.5 5.9 x 3.7 87
0152006 KN 4 L-S NiCr/Ni DIN KCA GL-GL-S oval 2 x 1.5 5.9 x 3.7 87
0162006 KN 4 L-S NiCr/Ni IEC KCA GL-GL-S oval 2 x 1.5 5.9 x 3.7 87
0153006 KP 4 L-S PtRh/Pt DIN RCB, SCB GL-GL-S oval 2 x 1.5 5.9 x 3.7 87
0163006 KP 4 L-S PtRh/Pt IEC RCB, SCB GL-GL-S oval 2 x 1.5 5.9 x 3.7 87
