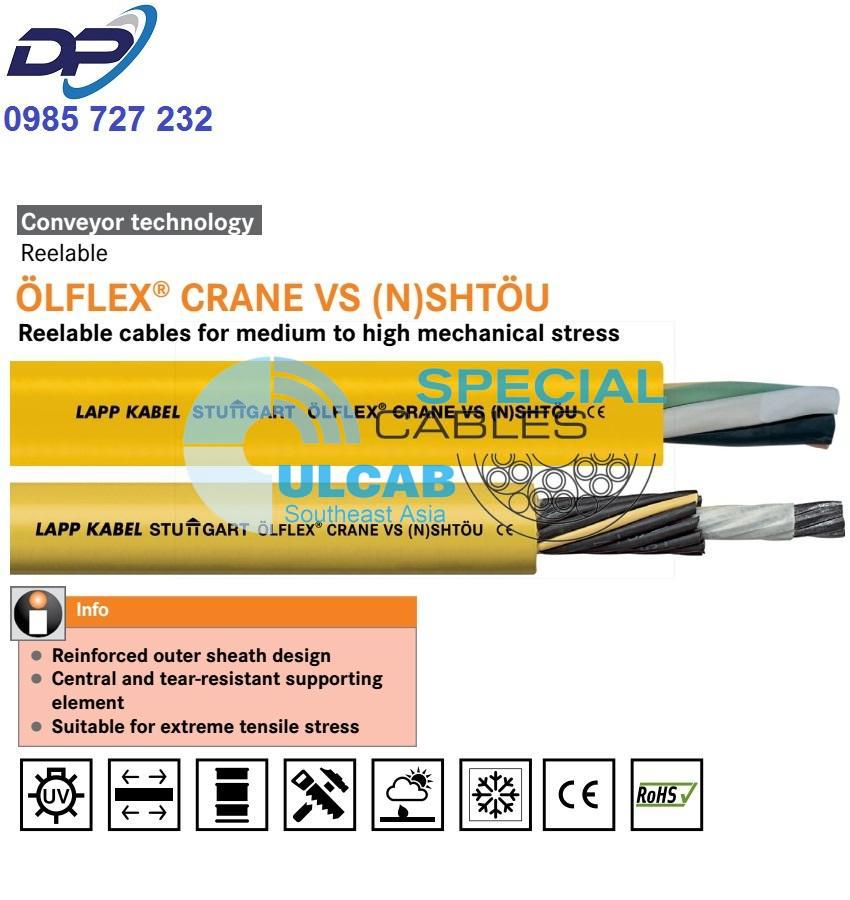

ÖLFLEX® CRANE VS (N)SHTÖU
Reelable cables for medium to high mechanical stress
ÖLFLEX® CRANE VS (N)SHTÖU – power and control cable for crane/lift, reinforced rubber 0.6/1kV, reelable/supporting braiding/supporting element, flame-/oil-resistant, outdoor use
- Reinforced outer sheath design
- Central and tear-resistant supporting element
- Suitable for extreme tension load
Benefits
- The central supporting element absorbs the tensile loads that occur, thereby allowing reeling, unreeling and deflection for free-hanging cables even over large distances.
- If tensile forces also act on the cable during the drum process or deflection
- The integrated supporting braid prevents undesirable cable twists, and the formation of so-called corkscrew effects
Application range
- For use in hoists, transport and conveyor
systems - Wherever cables are being reeled, unreeled or forcibly guided in operation
- In dry or damp interiors, outdoors, or no more than 2 weeks without interruption in industrial water
- The application profiles for ÖLFLEX® CRANE and ÖLFLEX® LIFT cables can be found in the appendix, selection table A3
- The assembly and handling guidelines for ÖLFLEX® CRANE cables can be found in the catalogue appendix, technical table T4; for ÖLFLEX® LIFT cables, please see the catalogue appendix, technical table T5
Product features
- Flame-retardant according to IEC 60332-1-2
- Oil-resistant according to EN 60811-404
- Good chemical, thermal and mechanical resistance
Norm references / approvals
- Based on VDE 0250-814 (NSHTÖU)
Design
- Strands made of tin-plated copper wires
- Core insulation: Rubber compound, type 3GI3
- Central supporting element
- Support braid integrated in the outer sheath
- Outer sheath made of rubber compound type 5GM5
Classification
- ETIM 5.0 Class-ID: EC000057
- ETIM 5.0 Class-Description: Power cable
Core identification code
- Up to 5 cores: according to VDE 0293-308 (appendix T9)
- From 6 cores: black with white numbers
Conductor design
- Fine wire according to VDE 0295 class 5 / IEC 60228 class 5
Minimum bending radius
- Flexible use: 7.5 x outer diameter
Nominal voltage
- U0/U: 600/1000 V
Test voltage
- 3000 V
Protective conductor
- G = with GN-YE protective conductor
- X = without protective conductor
Current load capacity
- VDE 298 part 4
Temperature range
- Flexible use: -25°C to +80°C
| Article number |
Number of cores and mm² per conductor |
Outer diameter (mm) |
Tensile strength (N) | Copper index (kg/km) | Weight (kg/km) |
| ÖLFLEX®CRANE VS (N)SHTÖU | |||||
| 0044008 | 7 G 1.5 | 18.8 | 2,000 | 100.8 | 430 |
| 0044009 | 12 G 1.5 | 25.3 | 2,000 | 172.8 | 820 |
| 0044010 | 18 G 1.5 | 25.3 | 2,000 | 259.2 | 930 |
| 0044011 | 24 G 1.5 | 30.1 | 2,000 | 345.6 | 1260 |
| 0044036 | 36 G 1.5 | 34 | 2,000 | 518.4 | 1650 |
| 0044015 | 7 G 2.5 | 21.6 | 2,000 | 168 | 630 |
| 0044016 | 12 G 2.5 | 29.4 | 2,000 | 288 | 1150 |
| 00440333 | 5 G 4 | 19.6 | 2,000 | 192 | 510 |
| 00440223 | 4 G 10 | 23.4 | 2,000 | 384 | 830 |
| 00440233 | 4 G 16 | 25.5 | 2,000 | 614.4 | 1170 |
| 00440323 | 5 G 16 | 27.5 | 2,400 | 768 | 1400 |
| 00440243 | 4 G 25 | 32.6 | 3,000 | 960 | 1850 |
| 00440253 | 4 G 35 | 34.8 | 4,000 | 1,344.00 | 2250 |
| 00440263 | 4 G 50 | 40.6 | 6,000 | 1,920.00 | 3200 |
| 00440283 | 4 G 70 | 44.8 | 8,000 | 2,688.00 | 4200 |
| 00440293 | 4 G 95 | 51.2 | 11,000 | 3,648.00 | 5550 |
