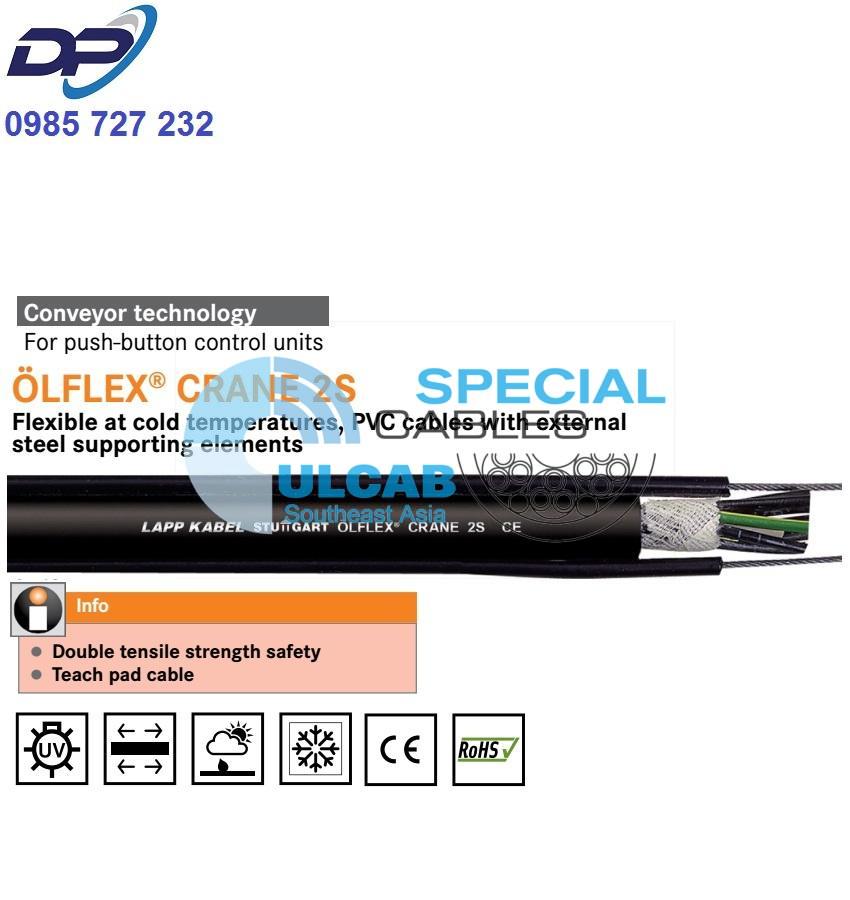

ÖLFLEX® CRANE 2S

Flexible at cold temperatures, PVC cables with external steel supporting elements

ÖLFLEX® CRANE 2S power and control cable made of PVC for push-button control units and high-rack facilities, outer steel supporting elements 4200 N, 300/500 V, flame-retardant, flexible at cold temperatures

  • Double load-bearing safety
  • Push-button control unit cable

UV-resistant Optimum strain relief Suitable for outdoor use Cold-resistant

Benefits

  • Two steel supporting elements that are integrated into the outer sheath on opposite sides absorb the tensile forces during operation
  • Tear-resistance of 2100 N per supporting element

Application range

  • For connecting mobile push-button control units and control panels
  • As a self-supporting shaft cable; in high rack systems
  • Suitable for outdoor applications
  • Do not use as a lift cable!
  • The application profiles for ÖLFLEX® CRANE and ÖLFLEX® LIFT cables can be found in the appendix, selection table A3

Product features

  • Flame-retardant according to IEC 60332-1-2
  • Flexible at cold temperatures

Norm references / approvals

  • Based on VDE 0250

Design

  • Conductor made of bare copper wires
  • Special PVC-based core insulation
  • Special textile wrapping to improve sliding movement between the sheathing and the cables cores
  • Special PVC-based outer sheath
  • Opposing, integrated steel supporting elements

Classification

  • ETIM 5.0 Class-ID: EC000104
  • ETIM 5.0 Class-Description: Control cable

Core identification code

  • Black with white numbers acc. to VDE 0293-1

Conductor design

  • Extra-fine wire according to VDE 0295, class 6/IEC 60228 class 6

Minimum bending radius

  • Flexible use: 20 x outer diameter

Nominal voltage

  • U0/U: 300/500 V

Test voltage

  • 3000 V

Protective conductor

  • G = with GN-YE protective conductor
  • X = without protective conductor

Temperature range

  • Flexible use: -15°C to +70°C
Article
number		 Number of cores and
mm² per conductor		 Cable Ø (mm)
(mm)		 Distance between strain wires
(mm)		 Copper index (kg/km) Weight (kg/km)
ÖLFLEX®CRANE 2S
0027503 8 G 1.5 14.7 20 115 372.5
0027504 12 G 1.5 16.2 21 172.8 439
0027505 20 G 1.5 20.1 25 288 674
