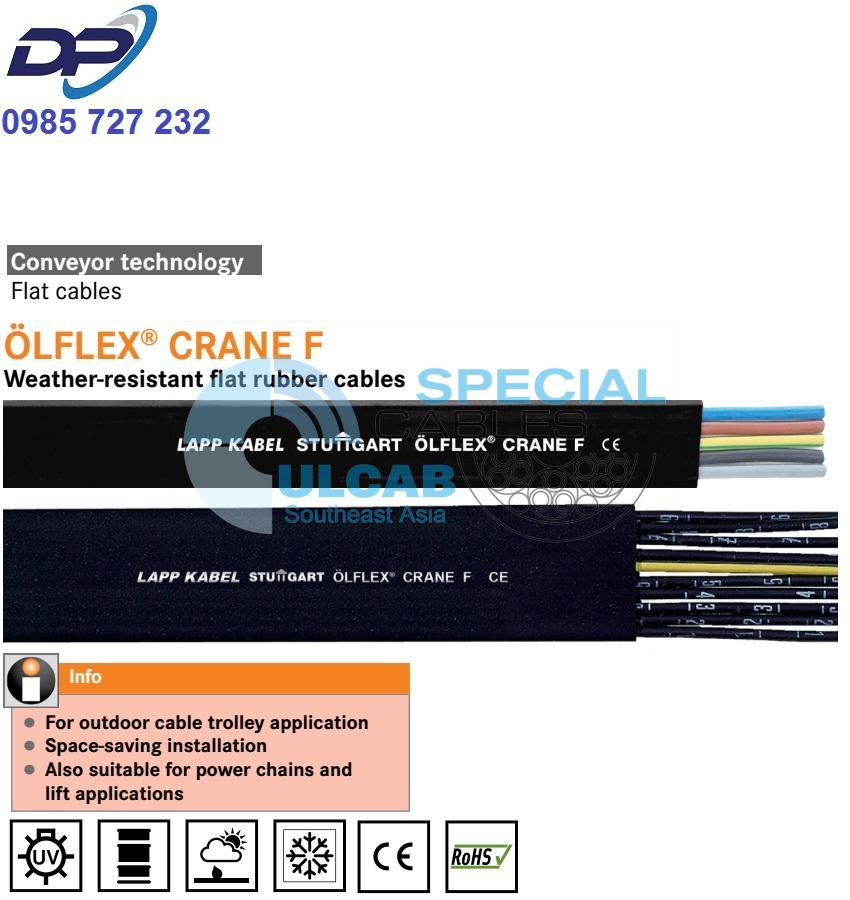

ÖLFLEX® CRANE F
Weather-resistant flat rubber cables
ÖLFLEX® CRANE F – power and control cable, flat cable for crane/lift/cable trolley systems, rubber, 300/500 V, flexible -25°C to +90°C, flame-retardant, outdoor use
- For use with outdoor cable trolley
- Space-saving installation
- Also suitable for power chains and
lift applications
Benefits
- Weather-resistant for harsh environmental conditions
- Flat cables need less space than round cables
- Significantly smaller bending radii are possible than with round cables
Application range
- In crane systems on building sites and shipyards for fixed installation and for flexible use in cable trolley systems
- Sewage treatment plants, steelworks and high-rack facilities
- The application profiles for ÖLFLEX® CRANE and ÖLFLEX® LIFT cables can be found in the appendix, selection table A3
Product features
- Flame-retardant according to IEC 60332-1-2
Norm references / approvals
- Based on VDE 0250 (NGFLGÖU)
Design
- Strands made of bare or tin-plated copper wires
- Core insulation: Rubber compound
- Outer sheath made of special rubber compound
Classification
- ETIM 5.0 Class-ID: EC000825
- ETIM 5.0 Class-Description: Flat cable
Core identification code
- Up to 5 cores: according to VDE 0293-308 (appendix T9)
- From 6 cores: black with white numbers
Conductor design
- Copper conductor according to VDE 0295/IEC 60228
up to 25 mm²: extra-fine wire, class 6
from 35 mm²: fine wire, class 5
Minimum bending radius
- Flexible use: 10 x cable thickness
- Fixed installation: 4 x cable thickness
Nominal voltage
- U0/U: 300/500 V
Test voltage
- 3000 V
Protective conductor
- G = with GN-YE protective conductor
- X = without protective conductor
Temperature range
- Flexible use: -25°C to +90°C
- Fixed installation: -40°C to +90°C
| Article number | Number of cores and mm² per conductor | Outer dimensions, width x height (mm) | Copper index (kg/km) | Weight (kg/km) |
| ÖLFLEX®CRANE F | ||||
| 0041041 | 4 G 1.5 | 17.5 x 6.2 | 57.6 | 200 |
| 0041042 | 5 G 1.5 | 21.5 x 6.2 | 72 | 240 |
| 0041043 | 7 G 1.5 | 29.0 x 6.2 | 100.8 | 360 |
| 0041044 | 8 G 1.5 | 31.5 x 6.2 | 115 | 370 |
| 0041045 | 10 G 1.5 | 40.0 x 6.5 | 144 | 520 |
| 0041046 | 12 G 1.5 | 47.0 x 6.5 | 172.8 | 620 |
| 0041047 | 4 G 2.5 | 21.0 x 7.5 | 96 | 280 |
| 0041048 | 5 G 2.5 | 27.0 x 7.5 | 120 | 400 |
| 0041049 | 7 G 2.5 | 35.0 x 7.5 | 168 | 520 |
| 0041050 | 8 G 2.5 | 39.0 x 7.5 | 192 | 550 |
| 0041051 | 12 G 2.5 | 56.0 x 8.0 | 288 | 800 |
| 0041052 | 4 G 4 | 26.0 x 9.0 | 153.6 | 410 |
| 0041053 | 7 G 4 | 42.0 x 9.0 | 268.8 | 700 |
| 0041054 | 4 G 6 | 29.0 x 9.5 | 230 | 600 |
| 0041055 | 5 G 6 | 35.0 x 9.5 | 288 | 650 |
| 0041056 | 7 G 6 | 42.0 x 9.5 | 403 | 850 |
| 0041057 | 4 G 10 | 33.0 x 11.0 | 384 | 800 |
| 0041058 | 5 G 10 | 44.0 x 11.0 | 480 | 1000 |
| 0041059 | 4 G 16 | 38.0 x 13.0 | 614 | 1150 |
| 0041060 | 4 G 25 | 49.5 x 15.0 | 960 | 1700 |
| 0041061 | 4 G 35 | 55.0 x 17.0 | 1,344.00 | 2360 |
| 0041062 | 4 G 50 | 63.0 x 19.0 | 1,920.00 | 3000 |
| 0041063 | 4 G 70 | 71.0 x 22.0 | 2,688.00 | 4000 |
