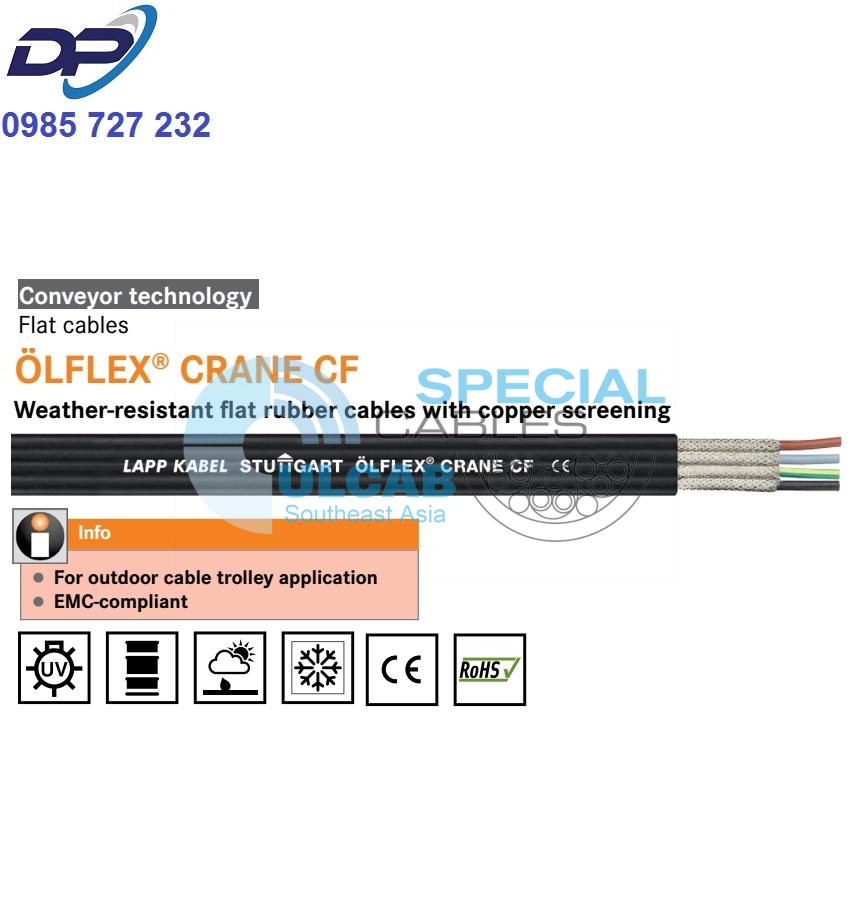

ÖLFLEX® CRANE CF
Weather-resistant flat rubber cables with copper shielding
ÖLFLEX® CRANE CF – power and control cable, flat cable, crane/lift/cable trolley systems, rubber, 300/500 V, -25°C/+90°C, flame-retardant, outdoor use, core-shielded
- For use with outdoor cable trolley
- EMC-compliant
Benefits
- Weather-resistant for harsh environmental conditions
- Flat cables need less space than round cables
- Significantly smaller bending radii are possible than with round cables
- Copper braiding complies with EMC requirements and screens the cable against electromagnetic interference
Application range
- In crane systems on building sites and shipyards for fixed installation and for flexible use in cable trolley systems
- Sewage treatment plants, steelworks and high-rack facilities
- The application profiles for ÖLFLEX® CRANE and ÖLFLEX® LIFT cables can be found in the appendix, selection table A3
Product features
- Flame-retardant according to IEC 60332-1-2
Norm references / approvals
- Based on VDE 0250 (NGFLGÖU)
Design
- Strands made of bare or tin-plated copper wires
- Core insulation: Rubber compound
- Individual core shielding consisting of
– Plastic foil wrapping
– Tin-plated copper braiding
– Plastic foil wrapping - Outer sheath made of special rubber compound
Classification
- ETIM 5.0 Class-ID: EC000825
- ETIM 5.0 Class-Description: Flat cable
Core identification code
- Up to 5 cores: according to VDE 0293-308 (appendix T9)
- From 6 cores: black with white numbers
Conductor design
- Copper conductor according to VDE 0295/IEC 60228
up to 25 mm²: extra-fine wire, class 6
from 35 mm²: fine wire, class 5
Minimum bending radius
- Flexible use: 10 x cable thickness
- Fixed installation: 4 x cable thickness
Nominal voltage
- U0/U: 300/500 V
Test voltage
- 2000 V
Protective conductor
- G = with GN-YE protective conductor
- X = without protective conductor
Temperature range
- Flexible use: -25°C to +90°C
- Fixed installation: -40°C to +90°C
| Article number | Number of cores and mm² per conductor | Outer dimensions, width x height (mm) | Copper index (kg/km) | Weight (kg/km) |
| ÖLFLEX®CRANE CF | ||||
| 0041075 | 4 G 1.5 | 18.5 x 6.5 | 79 | 220 |
| 0041076 | 8 G 1.5 | 36.0 x 7.5 | 155 | 470 |
| 0041077 | 12 G 1.5 | 54.5 x 8.5 | 238 | 745 |
| 0041078 | 4 G 2.5 | 22.5 x 7.5 | 141 | 320 |
| 0041079 | 12 G 2.5 | 69.5 x 9.5 | 499 | 1180 |
| 0041080 | 4 G 4 | 29.0 x 10.5 | 219 | 505 |
| 0041081 | 4 G 6 | 31.0 x 10.5 | 302 | 605 |
| 0041082 | 4 G 10 | 36.0 x 11.5 | 472 | 840 |
| 0041083 | 4 G 16 | 41.5 x 13.5 | 687 | 1180 |
| 0041084 | 4 G 25 | 47.0 x 15.0 | 1,114.00 | 1605 |
| 0041085 | 4 G 35 | 55.0 x 17.0 | 1,482.00 | 2520 |
| 0041086 | 4 G 50 | 66.0 x 20.5 | 2,238.00 | 3000 |
