ÖLFLEX® LIFT F

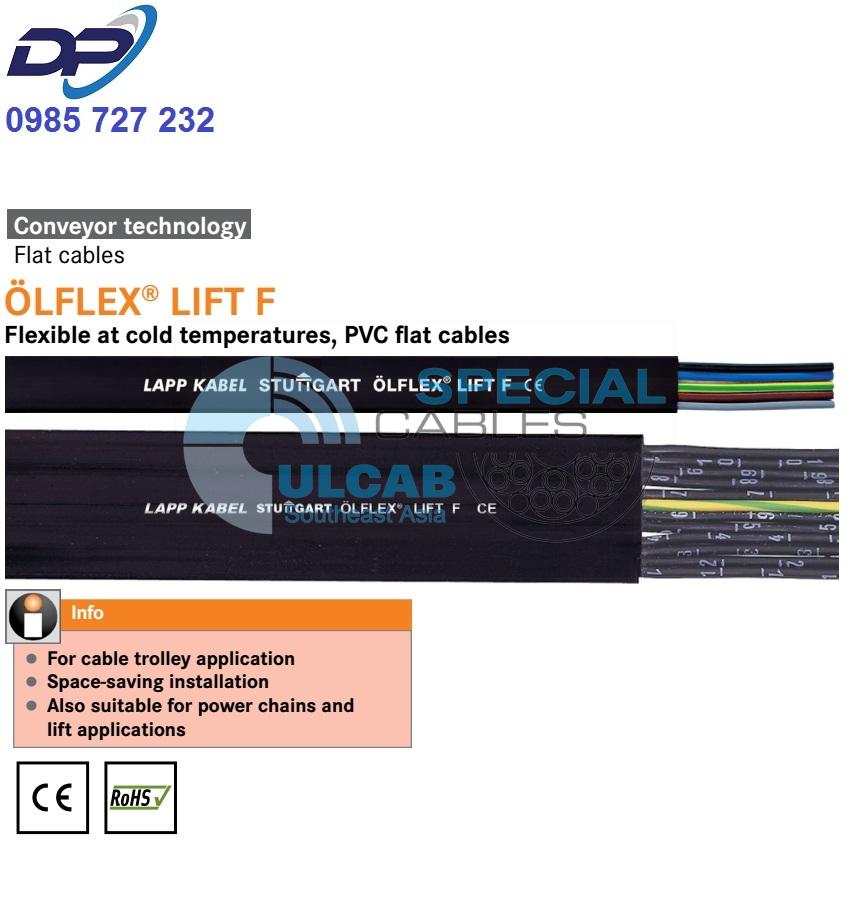

Flexible at cold temperatures, PVC flat cables
ÖLFLEX® LIFT F power and control cable for lift applications/cable trolley systems, made of PVC, flat, based on H07VVH6-F: up to 35 m and max. 1.6 m/s, flame-retardant
- For use with cable trolley
- Space-saving installation
- Also suitable for power chains and
lift applications
Benefits
- Flat cables need less space than round cables
- Significantly smaller bending radii are possible than with round cables
Application range
- For hoisting equipment and transport systems
- Indoor cranes and high-rack facilities
- As a supply line for moving machine parts
- According to VDE definition, this can also be used as a lift control cable with up to 35 m suspension length and a maximum speed of travel of 1.6 m/s
- The application profiles for ÖLFLEX® CRANE and ÖLFLEX® LIFT cables can be found in the appendix, selection table A3
Product features
- Flame-retardant according to IEC 60332-1-2
Norm references / approvals
- Based on EN 50214/VDE 0283-2 (H05VVH6-F or H07VVH6-F)
- Meets the requirements of the harmonised PVC flat cable H07VVH6-F
Design
- Conductor made of bare copper wires
- PVC-based core insulation
- Outer sheath based on PVC
Classification
- ETIM 5.0 Class-ID: EC000825
- ETIM 5.0 Class-Description: Flat cable
Core identification code
- Up to 5 cores: according to VDE 0293-308 (appendix T9)
- From 6 cores: black with white numbers
Conductor design
- U0/U 300/500 V versions, fine-wire according to VDE 0295 class 5 or IEC 60228 class 5
- U0/U 450/750 V versions, fine wire according to VDE 0295 class 6 or IEC 60228 class 6 (from nominal conductor cross-section 10 mm², fine wire again/class 5)
Minimum bending radius
- Flexible use: 10 x cable thickness
Nominal voltage
- Up to 1.0 mm²: U0/U: 300/500 V
- from 1.5 mm²: U0/U: 450/750 V
Test voltage
- 3000 V
Protective conductor
- G = with GN-YE protective conductor
- X = without protective conductor
Temperature range
- Flexible use:
0°C to +70°C (up to 1.0 mm²)
-15°C to +70°C (as from 1.5 mm²)
| Article number | Number of cores and mm² per conductor | Outer dimensions, width x height (mm) | Copper index (kg/km) | Weight (kg/km) |
| ÖLFLEX®LIFT F Nominal voltage U0/U: 300/500 V, temperature range: 0°C to +70°C |
||||
| 0042020 | 12 G 1.0 | 36.0 x 4.7 | 115 | 392 |
| 0042021 | 16 G 1.0 | 48.5 x 4.7 | 153.6 | 521 |
| 0042022 | 20 G 1.0 | 59.0 x 4.7 | 192 | 645 |
| 0042023 | 24 G 1.0 | 71.5 x 4.7 | 230 | 772 |
| Nominal voltage U0/U: 450/750 V, temperature range: -15°C to +70°C | ||||
| 00420013 | 4 G 1.5 | 15.5 x 5.2 | 57.6 | 132 |
| 00420023 | 5 G 1.5 | 19.7 x 5.2 | 72 | 170 |
| 0042003 | 7 G 1.5 | 27.0 x 5.2 | 100.8 | 236 |
| 0042004 | 8 G 1.5 | 29.0 x 5.2 | 115 | 266 |
| 0042005 | 10 G 1.5 | 36.5 x 5.2 | 144 | 333 |
| 0042006 | 12 G 1.5 | 42.0 x 5.2 | 172.80 | 422 |
| 00420073 | 4 G 2.5 | 19.0 x 5.9 | 96.00 | 206 |
| 00420083 | 5 G 2.5 | 24.0 x 5.9 | 120.00 | 257 |
| 0042009 | 7 G 2.5 | 32.5 x 5.9 | 168 | 345 |
| 0042010 | 8 G 2.5 | 35.0 x 5.9 | 192 | 390 |
| 0042050 | 12 G 2.5 | 52.5 x 5.9 | 288 | 580 |
| 00420113 | 4 G 4 | 21.0 x 6.8 | 153.6 | 343 |
| 0042012 | 7 G 4 | 38.0 x 6.8 | 268.8 | 589 |
| 00420133 | 4 G 6 | 24.0 x 7.3 | 230 | 425 |
| 00420143 | 4 G 10 | 30.5 x 9.5 | 384 | 709 |
| 00420153 | 4 G 16 | 35.0 x 10.8 | 614 | 1015 |
| 00420163 | 4 G 25 | 42.0 x 13.0 | 960.00 | 1366 |
