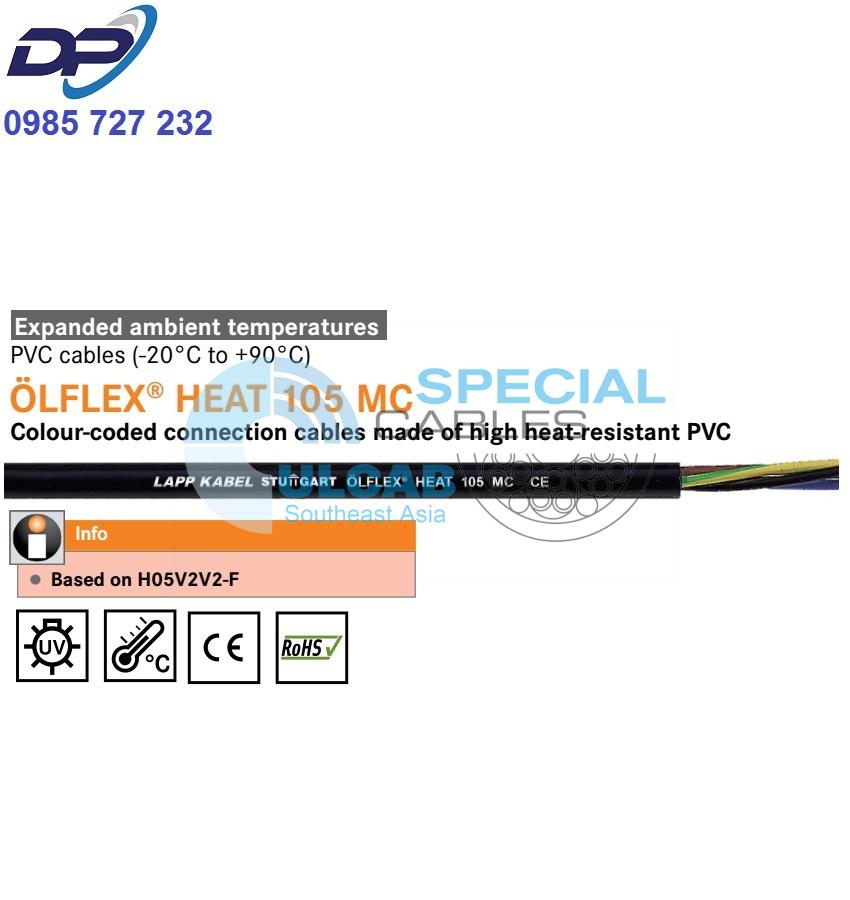

ÖLFLEX® HEAT 105 MC
Colour-coded connection cables made of highly heat-resistant PVC
ÖLFLEX® HEAT 105 MC – PVC connection cable based on type H05V2V2-F for use in machines, transformers, control cabinets and appliances up to +90°C
Based on H05V2V2-F
Benefits
- Possible to operate at higher peak temperature (almost 30% more) compared to conventional PVC cables
Application range
- For connecting motors, transformers, coils, plants, machines, appliances, control cabinets and installations with a higher operating or ambient temperature
- For indoor and outdoor use
Product features
- Highly resistant to a multitude of oils, acids and other chemical media at room temperature
- Flame-retardant according to IEC 60332-1-2
- Good UV resistance
Norm references / approvals
- Based on EN 50525-2-11
Design
- Finely stranded bare copper wires
- Core insulation made of heat-resistant PVC
- Cores twisted in layers
- Outer sheath made of heat-resistant PVC, black (RAL 9005)
Classification
- ETIM 5.0 Class-ID: EC001578
- ETIM 5.0 Class-Description: Flexible cable
Core identification code
- Up to 5 cores: according to VDE 0293-308 (appendix T9)
- From 6 cores: ÖLFLEX® colour code (appendix T7)
Conductor design
- Fine wire according to VDE 0295,
class 5 / IEC 60228 class 5
Minimum bending radius
- Occasional flexing: 15 x outer diameter
- Fixed installation: 4 x outer diameter
Nominal voltage
- U0/U: 300/500 V
Test voltage
- 2500 V
Protective conductor
- G = with GN-YE protective conductor
- X = without protective conductor
Temperature range
- Occasional flexing: +5°C to +90°C
Fixed installation: -20°C to +90°C - short-term: +105°C
| Article number | Number of cores and mm² per conductor | Outer diameter (mm) | Copper index (kg/km) | Weight (kg/km) |
| ÖLFLEX®HEAT 105 MC | ||||
| 0026001 | 2 X 0.75 | 6.2 | 14.4 | 53 |
| 0026002 | 3 G 0.75 | 6.5 | 21.6 | 62 |
| 00260033 | 4 G 0.75 | 7. 1 | 28.8 | 76 |
| 00260043 | 5 G 0.75 | 8 | 36 | 95 |
| 0026005 | 7 G 0.75 | 9.7 | 50 | 113 |
| 0026006 | 2 X 1 | 6.5 | 19.2 | 61 |
| 0026007 | 3 G 1 | 6.9 | 29 | 74 |
| 00260083 | 4 G 1 | 7.7 | 38.4 | 89 |
| 00260093 | 5 G 1 | 8.4 | 48 | 110 |
| 0026010 | 7 G 1 | 10.2 | 67.00 | 130 |
| 0026011 | 2 X 1.5 | 7.5 | 29.00 | 78 |
| 0026012 | 3 G 1.5 | 8.1 | 43.20 | 98 |
| 00260133 | 4 G 1.5 | 8.9 | 57.6 | 122 |
| 00260143 | 5 G 1.5 | 10 | 72 | 144 |
| 0026015 | 7 G 1.5 | 12.3 | 101 | 180 |
