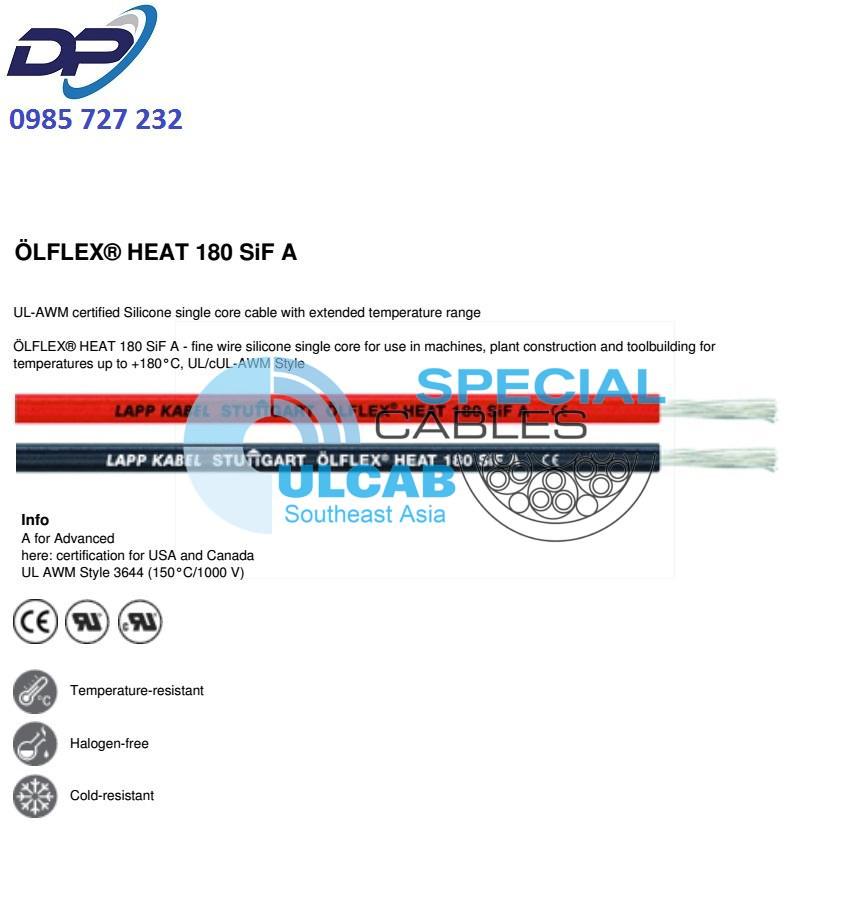

ÖLFLEX® HEAT 180 SiF A

UL-AWM certified silicone single core with wide temperature range

ÖLFLEX® HEAT 180 SiF A – silicone single core cable for use with increased temperature requirements up to +180°C, UL-AWM certified and VDE-tested

  • A for Advanced
    here: certification for USA and Canada
  • UL AWM Style 3644 (150°C/1000 V)

Temperature-resistant Halogen-free Cold-resistant

Benefits

  • Certified for the USA and Canada for export-oriented appliance and apparatus manufacturers
  • The remaining SiO2 ash has insulating properties after combustion

Application range

  • Areas with high ambient temperatures where conventional core insulation materials will become brittle after a short period
  • Typical fields of application
    – Control cabinet manufacturing
    – Appliances and apparatus engineering
    – Electric motor industry
    – Sauna/solarium construction
    – Thermal and heating elements
    – Lighting technology
    – Ventilator engineering
    – Air-conditioning technology
    – Furnace construction
    – Plastic processing
    – Generator and transformer manufacturing

Product features

  • Fire behaviour:
    – Flame-retardant (IEC 60332-1-2)
    – Halogen-free (IEC 60754-1)
    – Corrosiveness of gases (IEC 60754-2)
    – Smoke density (IEC 61034-2)
    – Low toxicity (EN 50305)
  • Flammability (UL): FT2 (Horizontal Flame Test)
  • Resistant to a multitude of oils, alcohols, vegetable and animal fats and chemical substances

Norm references / approvals

  • UL AWM Style 3644
  • UL File No. E63634

Design

  • Fine-wire, tin-plated copper conductor
  • Silicone-based insulation

Classification

  • ETIM 5.0 Class-ID: EC000993
  • ETIM 5.0 Class-Description: Single-core cable

Conductor design

  • Fine wire according to VDE 0295, class 5 / IEC 60228 class 5 from 0.5 mm²

Minimum bending radius

  • Fixed installation: 6 x outer diameter
    Single bend: 3 x cable diameter

Nominal voltage

  • UL: 1000 V
  • IEC: U0/U 600/1000 V

Test voltage

  • 3000 V

Temperature range

  • IEC: -50°C up to +180°C
    UL (AWM): up to +150°C
  • (adequate ventilation required)
Article number Conductor cross-section
(mm²)		 Outer diameter [mm] Core colour Copper index (kg/km) Weight (kg/km)
ÖLFLEX® HEAT 180 SiF A
1249500 0.25 2.25 green/yellow 2.4 6.8
1249520 0.25 2.25 black 2.4 6.8
1249540 0.25 2.25 blue 2.4 6.8
1249560 0.25 2.25 brown 2.4 6.8
1249580 0.25 2.25 red 2.4 6.8
1249600 0.25 2.25 white 2.4 6.8
1249620 0.25 2.25 grey 2.4 6.8
1249640 0.25 2.25 violet 2.4 6.8
1249660 0.25 2.25 dark blue 2.4 6.8
1249680 0.25 2.25 orange 2.4 6.8
1249700 0.25 2.25 yellow 2.4 6.8
1249720 0.25 2.25 green 2.4 6.8
1249502 0.5 2.45 green/yellow 4.8 10.9
1249522 0.5 2.45 black 4.8 10.9
1249542 0.5 2.45 blue 4.8 10.9
1249562 0.5 2.45 brown 4.8 10.9
1249582 0.5 2.45 red 4.8 10.9
1249602 0.5 2.45 white 4.8 10.9
1249622 0.5 2.45 grey 4.8 10.9
1249642 0.5 2.45 violet 4.8 10.9
1249662 0.5 2.45 dark blue 4.8 10.9
1249682 0.5 2.45 orange 4.8 10.9
1249702 0.5 2.45 yellow 4.8 10.9
1249722 0.5 2.45 green 4.8 10.9
1249503 0.75 2.75 green/yellow 7.2 14
1249523 0.75 2.75 black 7.2 14
1249543 0.75 2.75 blue 7.2 14
1249563 0.75 2.75 brown 7.2 14
1249583 0.75 2.75 red 7.2 14
1249603 0.75 2.75 white 7.2 14
1249623 0.75 2.75 grey 7.2 14
1249643 0.75 2.75 violet 7.2 14
1249663 0.75 2.75 dark blue 7.2 14
1249683 0.75 2.75 orange 7.2 14
1249703 0.75 2.75 yellow 7.2 14
1249723 0.75 2.75 green 7.2 14
1249504 1 2.85 green/yellow 9.6 17.2
1249524 1 2.85 black 9.6 17.2
1249544 1 2.85 blue 9.6 17.2
1249564 1 2.85 brown 9.6 17.2
1249584 1 2.85 red 9.6 17.2
1249604 1 2.85 white 9.6 17.2
1249624 1 2.85 grey 9.6 17.2
1249644 1 2.85 violet 9.6 17.2
1249664 1 2.85 dark blue 9.6 17.2
1249684 1 2.85 orange 9.6 17.2
1249704 1 2.85 yellow 9.6 17.2
1249724 1 2.85 green 9.6 17.2
1249505 1.5 3.15 green/yellow 14.4 22.2
1249525 1.5 3.15 black 14.4 22.2
1249545 1.5 3.15 blue 14.4 22.2
1249565 1.5 3.15 brown 14.4 22.2
1249585 1.5 3.15 red 14.4 22.2
1249605 1.5 3.15 white 14.4 22.2
1249625 1.5 3.15 grey 14.4 22.2
1249645 1.5 3.15 violet 14.4 22.2
1249665 1.5 3.15 dark blue 14.4 22.2
1249685 1.5 3.15 orange 14.4 22.2
1249705 1.5 3.15 yellow 14.4 22.2
1249725 1.5 3.15 green 14.4 22.2
1249506 2.5 3.55 green/yellow 24 33.1
1249526 2.5 3.55 black 24 33.1
1249546 2.5 3.55 blue 24 33.1
1249566 2.5 3.55 brown 24 33.1
1249586 2.5 3.55 red 24 33.1
1249606 2.5 3.55 white 24 33.1
1249626 2.5 3.55 grey 24 33.1
1249646 2.5 3.55 violet 24 33.1
1249666 2.5 3.55 dark blue 24 33.1
1249686 2.5 3.55 orange 24 33.1
1249706 2.5 3.55 yellow 24 33.1
1249726 2.5 3.55 green 24 33.1
1249507 4 4.15 green/yellow 38 49.5
1249527 4 4.15 black 38 49.5
1249547 4 4.15 blue 38 49.5
1249567 4 4.15 brown 38 49.5
1249587 4 4.15 red 38 49.5
1249607 4 4.15 white 38 49.5
1249627 4 4.15 grey 38 49.5
1249508 6 5.5 green/yellow 58 78.3
1249528 6 5.5 black 58 78.3
1249548 6 5.5 blue 58 78.3
1249568 6 5.5 brown 58 78.3
1249588 6 5.5 red 58 78.3
1249608 6 5.5 white 58 78.3
1249628 6 5.5 grey 58 78.3
1249509 10 7.65 green/yellow 96 132.7
1249529 10 7.65 black 96 132.7
1249549 10 7.65 blue 96 132.7
1249569 10 7.65 brown 96 132.7
1249589 10 7.65 red 96 132.7
1249609 10 7.65 white 96 132.7
1249510 16 8.45 green/yellow 154 192
1249530 16 8.45 black 154 192
1249550 16 8.45 blue 154 192
1249570 16 8.45 brown 154 192
1249590 16 8.45 red 154 192
1249610 16 8.45 white 154 192
1249511 25 9.85 green/yellow 240 288.9
1249531 25 9.85 black 240 288.9
1249551 25 9.85 blue 240 288.9
1249591 25 9.85 red 240 288.9
1249611 25 9.85 white 240 288.9
1249532 35 10.95 black 336 386
1249592 35 10.95 red 336 386
1249533 50 13.5 black 480 557.6
1249593 50 13.5 red 480 557.6
1249534 70 15.5 black 672.2 775.2
1249535 95 17.5 black 912 1,004.40
