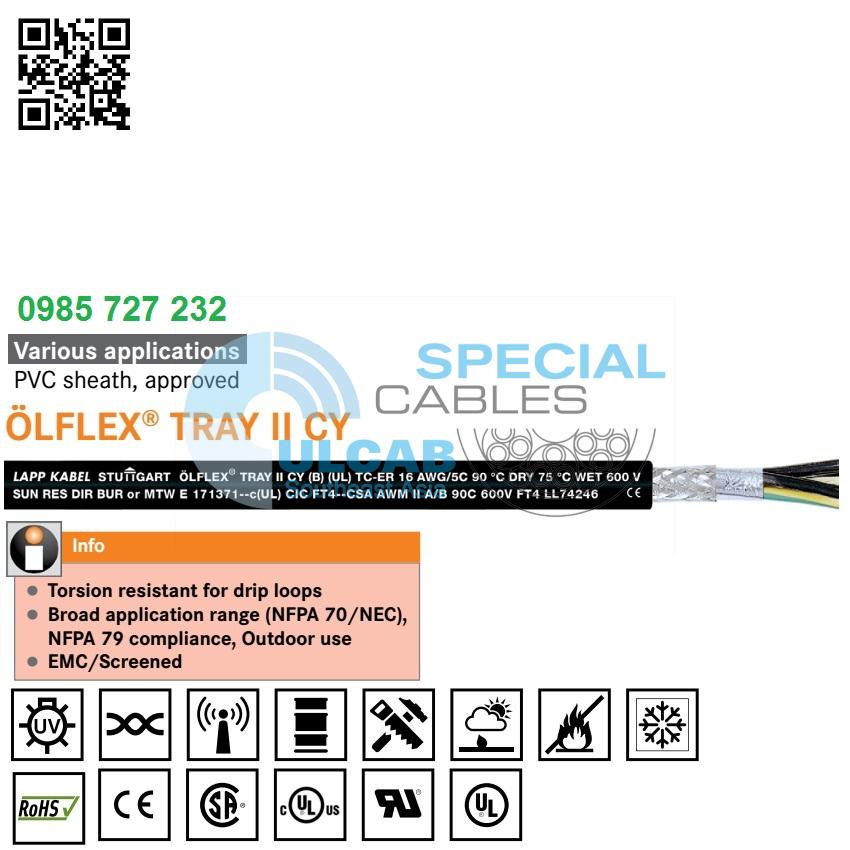

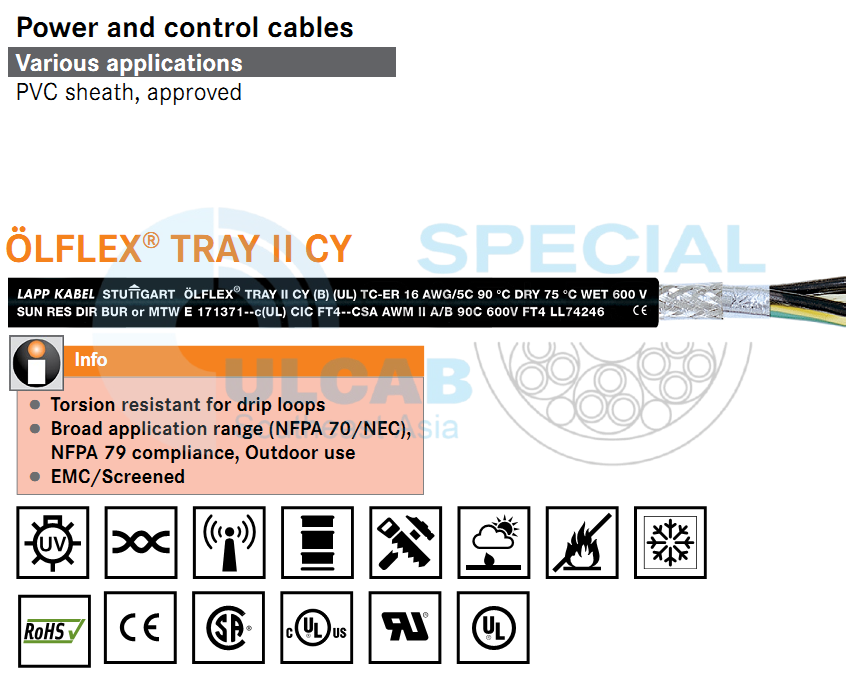

Cáp LAPP KABEL ÖLFLEX® TRAY II CY | Chính Hãng – Chống Nhiễu – Giá Tốt Nhất

Benefits

• Wide application range due to multiple certifications
• Cost-saving, easy installation due to omission of closed cable systems (suitable for open wiring)

Application range

• Industrial machinery; plant engineering
• TC-ER (Tray Cable Exposed Run) approval for open wiring between cable tray and industrial machines/plants according to NEC article 336.10(7)
• Wind turbines: USA Wind Turbine Tray Cable (WTTC)
• According to NEC/NFPA 70 (2014), ARTICLE 501, for areas at risk of explosion in accordance with Class I, Division 2 locations determined in NEC ARTICLE 500
• Suitable for outdoor use and direct burial

Product features

• Flame-retardant according to CSA FT4
  UL Vertical-Tray Flame Test
• Oil-resistant according to UL OIL RES I & II
• Water-resistant, UL 75°C wet rating
• UV-resistant UL SUN RES
• Suitable for torsional applications which are typical for the loop in wind turbine generators (WTG)

Norm references / approvals

• Multi-standard cables are designed in metric nominal cross sections in mm² or AWG/kcmil nominal sizes. The leading cross-section is specified in the table below, while the corresponding cross-section of the other system can be found in the appendix table T16 of this catalogue. For this corresponding secondary size, the conductor cross-section is generally larger.
• UL certifications for US use:
  – (UL) TC-ER according to UL 1277 [UL file no.: E171371];
  – (UL) MTW according to UL 1063 [UL file no.: E155920];
  – (UL) WTTC according to UL 2277 [UL file no.: E323700];
  – Submersible pump (from 2.5 mm²/ 14 AWG, only up to max. 7 cores);
  – (UL) PLTC-ER according to UL 13 (4 mm²/ 12 AWG up to and incl. 10 mm²/ 8 AWG) [E216027];
  – (UL) ITC-ER according to UL 2250 (1 mm²/ 18 AWG up to and incl. 4 mm²/ 12 AWG) [UL file no.: E196134];
  – DP-1 according to UL 1690 [UL file no.: E233406];
  – UL AWM style 20886 according to UL 758 [UL file no.: E100338].
  Special properties:
  – UL oil resistance UL OIL RES I/II;
  – 75°C wet, 90°C dry (max. conductor temp. according to humidity);
  – Sunlight-resistant (UL UV-resistance);
  – Direct burial (unprotected burial according to US standard specifications);
  – NFPA 79, editions 2012/2015 (suitability for industrial machines in USA);
  – FT4 flame retardance.
  NEC (NFPA 70):
  – Class 1 division 2 according to NEC article 501.
  UL/CSA certifications for use in Canada:
  – cUL CIC/ TC FT4 [UL file no.: E171371];
  – CSA AWM I/II A/B FT4.

Design

• Finely stranded bare copper wires
• Insulation: PVC+nylon cover (PA skin)
• Aluminium-coated foil
• Tin-plated copper braiding
• Outer sheath: Specially formulated thermoplastic polymer
• Outer sheath colour: Black

■ Technical data
