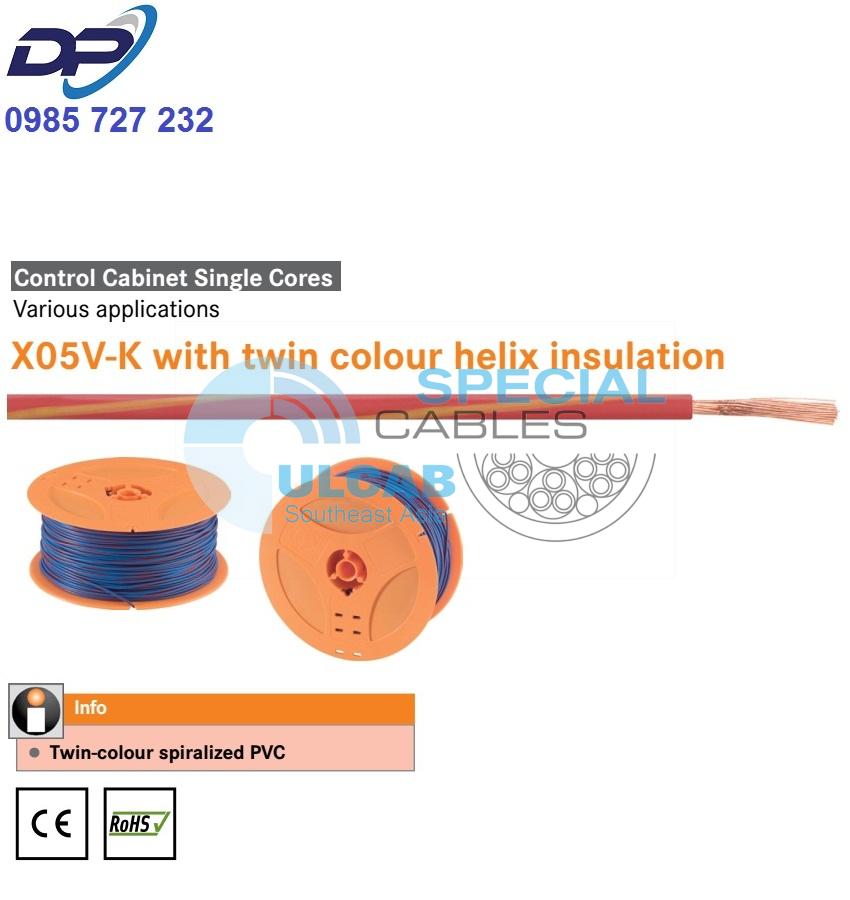

X05V-K with twin colour helix insulation

X05V-K, power and control cable for internal fixed wiring/assembling, PVC, 300/500 V, class 5, twin colour helix insulation, flame-retardant, on a reel

Twin-colour helically wound PVC

product information (PDF)

Application range

Internal wiring of devices
Protected installation in and on lighting
Signal systems on and under plaster in tubes

Product features

Flame-retardant according to IEC 60332-1-2
Coil: d1 = 18 mm; d2 = 200mm; b = 85 mm

Norm references / approvals

Based on EN 50525-2-31

Design

Fine-wired copper conductor made of bare copper wires in line with braided conductor class 5 according to IEC 60228 / VDE 0295
PVC-based core insulation
Marked with coloured stripes

Classification

ETIM 5.0 Class-ID: EC000993
ETIM 5.0 Class-Description: Single-core cable

Conductor design

Fine wire according to VDE 0295 class 5 / IEC 60228 class 5

Minimum bending radius

4 x outer diameter (OD) if used as defined for H05V-K; 2 x OD for careful bending

Nominal voltage

U₀/U: 300/500 V

Test voltage

2000 V

Current load capacity

VDE 0298 part 4
EN 50565-1/ VDE 0298-565-1

Temperature range

Fixed installation: -40°C to +80°C
Flexing: +5°C to +70°C

Article number	Conductor cross-section (mm²)	Outer diameter [mm]	Core colour	m/spool	Copper index (kg/km)	Weight (kg/km)
4512261S	0.5	2.1 – 2.5	blue/white	250	4.8	9
4512921S	0.5	2.1 – 2.5	dark blue/white	250	4.8	9
4512231S	0.5	2.1 – 2.5	blue/black	250	4.8	9
4512241S	0.5	2.1 – 2.5	blue/green	250	4.8	9
4512251S	0.5	2.1 – 2.5	blue / red	250	4.8	9
4512291S	0.5	2.1 – 2.5	brown/white	250	4.8	9
4512371S	0.5	2.1 – 2.5	violet/white	250	4.8	9
4512381S	0.5	2.1 – 2.5	orange/black	250	4.8	9
4512391S	0.5	2.1 – 2.5	orange/white	250	4.8	9
4512401S	0.5	2.1 – 2.5	red/black	250	4.8	9
4512421S	0.5	2.1 – 2.5	red/white	250	4.8	9
4512441S	0.5	2.1 – 2.5	white/blue	250	4.8	9
4512221S	0.5	2.1 – 2.5	black/white	250	4.8	9
4512321S	0.5	2.1 – 2.5	yellow/white	250	4.8	9
4512351S	0.5	2.1 – 2.5	violet/black	250	4.8	9
4512431S	0.5	2.1 – 2.5	white/black	250	4.8	9
4512471S	0.5	2.1 – 2.5	grey-black	250	4.8	9
4512262S	0.75	2.2 – 2.7	blue/white	250	7.2	12
4512922S	0.75	2.2 – 2.7	dark blue/white	250	7.2	12
4512232S	0.75	2.2 – 2.7	blue/black	250	7.2	12
4512242S	0.75	2.2 – 2.7	blue/green	250	7.2	12
4512252S	0.75	2.2 – 2.7	blue / red	250	7.2	12
4512252K	0.75	2.2 – 2.7	blue / red	4000	7.2	12
4512272S	0.75	2.2 – 2.7	brown/black	250	7.2	12
4512292S	0.75	2.2 – 2.7	brown/white	250	7.2	12
4512372S	0.75	2.2 – 2.7	violet/white	250	7.2	12
4512382S	0.75	2.2 – 2.7	orange/black	250	7.2	12
4512392S	0.75	2.2 – 2.7	orange/white	250	7.2	12
4512402S	0.75	2.2 – 2.7	red/black	250	7.2	12
4512422S	0.75	2.2 – 2.7	red/white	250	7.2	12
4512442S	0.75	2.2 – 2.7	white/blue	250	7.2	12
4512222S	0.75	2.2 – 2.7	black/white	250	7.2	12
4512322S	0.75	2.2 – 2.7	yellow/white	250	7.2	12
4512352S	0.75	2.2 – 2.7	violet/black	250	7.2	12
4512432S	0.75	2.2 – 2.7	white/black	250	7.2	12
4512472S	0.75	2.2 – 2.7	grey-black	250	7.2	12
4512263S	1	2.4 – 2.8	blue/white	250	9.6	15
4512923S	1	2.4 – 2.8	dark blue/white	250	9.6	15
4512233S	1	2.4 – 2.8	blue/black	250	9.6	15
4512243S	1	2.4 – 2.8	blue/green	250	9.6	15
4512253S	1	2.4 – 2.8	blue / red	250	9.6	15
4512293S	1	2.4 – 2.8	brown/white	250	9.6	15
4512373S	1	2.4 – 2.8	violet/white	250	9.6	15
4512383S	1	2.4 – 2.8	orange/black	250	9.6	15
4512393S	1	2.4 – 2.8	orange/white	250	9.6	15
4512393K	1	2.4 – 2.8	orange/white	2000	9.6	15
4512403S	1	2.4 – 2.8	red/black	250	9.6	15
4512423S	1	2.4 – 2.8	red/white	250	9.6	15
4512423K	1	2.4 – 2.8	red/white	2000	9.6	15
4512443S	1	2.4 – 2.8	white/blue	250	9.6	15
4512223S	1	2.4 – 2.8	black/white	250	9.6	15
4512353S	1	2.4 – 2.8	violet/black	250	9.6	15
4512433S	1	2.4 – 2.8	white/black	250	9.6	15
4512473S	1	2.4 – 2.8	grey-black	250	9.6	15
