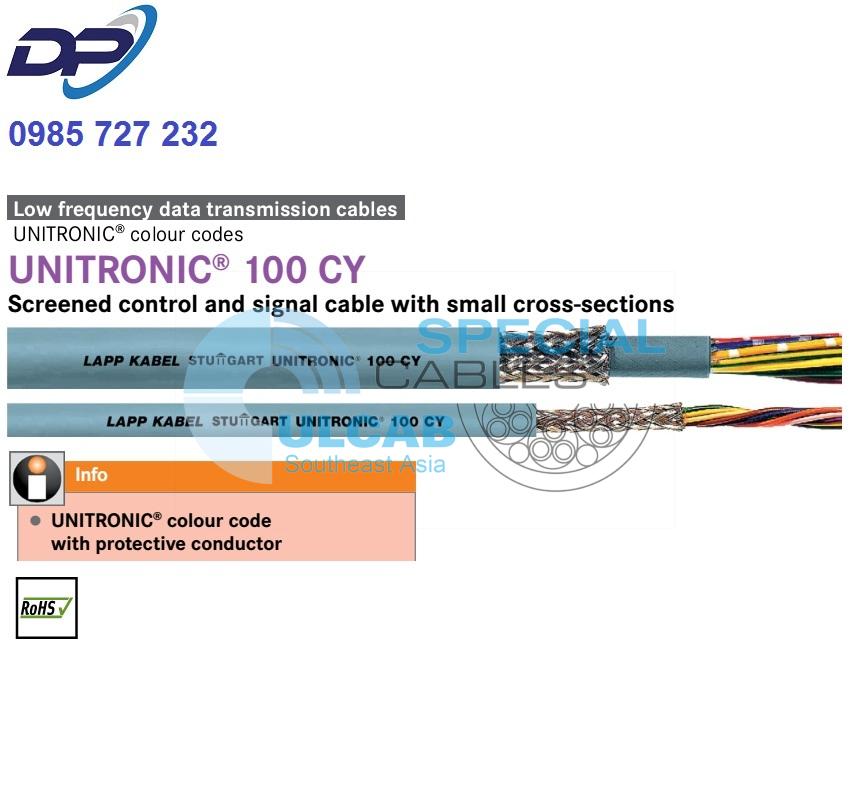

UNITRONIC® 100 CY
Shielded control and signal cable with small conductor cross-sections
UNITRONIC® 100 CY – shielded PVC data cable for versatile use for low-frequency data transmission with special UNITRONIC® colour code
Application range
- These control and signal cables are used in the milliampere range of electronics for computer systems, electronic control and regulation equipment, office machines, scales etc. and wherever the smallest possible control cables are required.
Product features
- Robust, flexible and resistant outer sheath
- Small outer diameter despite high number of cores
- Cable similar to UNITRONIC® 100, but with copper screening braid
- Flame-retardant according to IEC 60332-1-2
- From 3 cores with protective conductor (green/yellow)
2 cores (black/blue)
Norm references / approvals
- Based on: VDE 0814 or VDE 0812
Design
- Fine-wire/multi-wire (0.34 mm²) strand made of bare copper wires
- Core insulation made of PVC
- Inner sheath made of PVC
- For the conductor cross-section of 0.14 mm², a polyester film is used under the screening braid instead of the inner sheath.
- Tin-plated copper braiding
- Outer sheath made of PVC
Outer sheath colour: grey (RAL 7001)
Classification
- ETIM 5.0 Class-ID: EC000104
- ETIM 5.0 Class-Description: Control cable
Core identification code
- Refer to table T7 for the UNITRONIC® colour code
Operating capacitance
- approx. 120 nF/km
Peak operating voltage
- (not for power applications)
500 V
Inductance
- approx. 0.7 mH/km
Conductor design
- Strands, fine-wire
0.34 mm²: 7-wire
Minimum bending radius
- Occasional flexing: 20 x outer diameter
- Fixed installation: 6 x outer diameter
Test voltage
- Core/Core: 1500 V eff.
- Core/Shield: 1500 V
Protective conductor
- Green/yellow
Temperature range
- Occasional flexing: -5°C to +70°C
- Fixed installation: -40°C to +80°C
| Article number | Number of cores and mm² per conductor |
Outer diameter [mm] | Copper index (kg/km) | Weight (kg/km) |
| UNITRONIC® 100 CY | ||||
| 0034006 | 2 x 0.14 | 3.7 | 12 | 20 |
| 0034007 | 3 x 0.14 | 3.9 | 13 | 28 |
| 0034008 | 4 x 0.14 | 4.1 | 14.3 | 33 |
| 0034009 | 5 x 0.14 | 4.4 | 15.5 | 38 |
| 0034010 | 7 x 0.14 | 4.7 | 20.3 | 49 |
| 0034011 | 10 x 0.14 | 5.7 | 34.3 | 66 |
| 0034012 | 14 x 0.14 | 6.3 | 32 | 80 |
| 0034013 | 16 x 0.14 | 6.6 | 40.9 | 90 |
| 0034016 | 27 x 0.14 | 8.1 | 70.6 | 148 |
| 0031031 | 3 x 0.25 | 5.4 | 20.2 | 48 |
| 0031066 | 4 x 0.25 | 5.7 | 24 | 61 |
| 0031067 | 5 x 0.25 | 6.3 | 29 | 72 |
| 0031032 | 7 x 0.25 | 6.7 | 37.6 | 82 |
| 0031033 | 10 x 0.25 | 8.2 | 48.8 | 129 |
| 0031034 | 14 x 0.25 | 8.7 | 64.6 | 147 |
| 0031068 | 2 x 0.34 | 5.6 | 20 | 45 |
| 0031048 | 3 x 0.34 | 5.8 | 24.1 | 62 |
| 0031069 | 4 x 0.34 | 6.4 | 29 | 65 |
| 0031070 | 5 x 0.34 | 6.9 | 42 | 95 |
| 0031049 | 7 x 0.34 | 7.3 | 50 | 106 |
| 0031050 | 10 x 0.34 | 9 | 67.7 | 167 |
| 0031052 | 16 x 0.34 | 10.5 | 95 | 219 |
