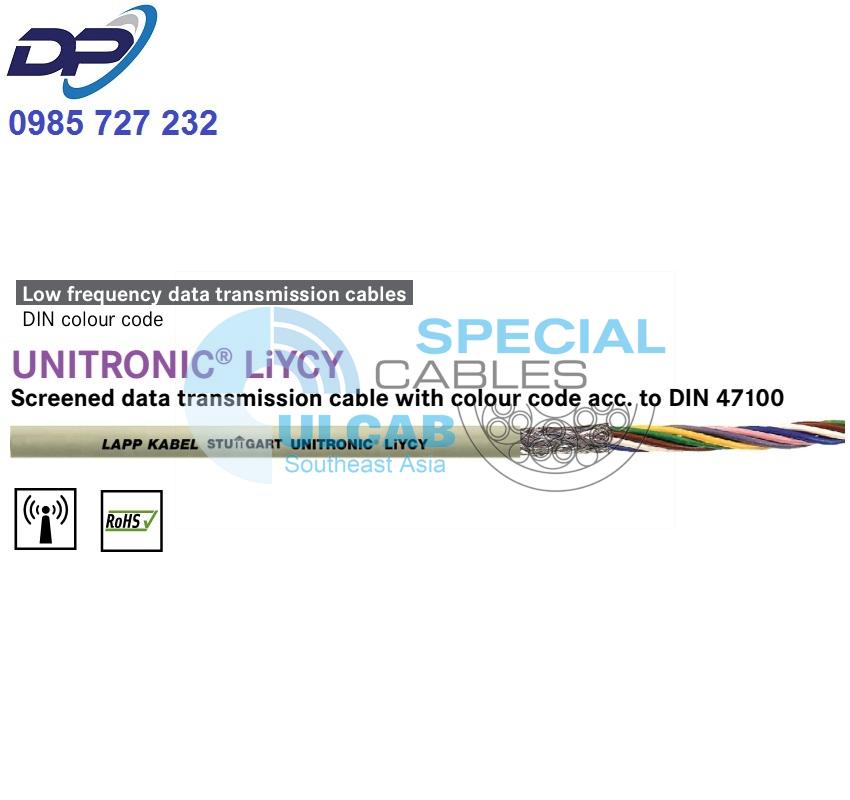

UNITRONIC® LiYCY
Shielded data cable with colour code according to DIN 47100
UNITRONIC® LiYCY – shielded PVC data cable with colour code DIN 47100 for use in machinery and apparatus construction and in measurement, control and regulation technology
Benefits
- Overall shield minimises electrical
interference - Versatile application possibilities
Application range
- Shielded cables with small dimensions are suitable for use in computer systems, measurement, control and regulation technology, office equipment, scales.
- Dry or damp rooms
Product features
- Flame-retardant according to IEC 60332-1-2
Norm references / approvals
- Based on VDE 0812
Design
- Fine-wire/multi-wire (0.34 mm²) strand made of bare copper wires
- Core insulation made of PVC
- Tin-plated copper braiding
- Outer sheath made of PVC
Outer sheath colour: pebble grey (RAL 7032)
Classification
- ETIM 5.0 Class-ID: EC000104
- ETIM 5.0 Class-Description: Control cable
Core identification code
- DIN 47100 without colour repetition, refer to table T9
Operating capacitance
- C/C approx. 120 nF/km
C/S: approx. 160 nF/km
Peak operating voltage
- (not for power applications)
at 0.14 mm²: 350 V
at ≥ 0.25 mm²: 500 V
Inductance
- approx. 0.65 mH/km
Conductor design
- Strands, fine-wire
0.34 mm²: 7-wire
Minimum bending radius
- Occasional flexing: 15 x outer diameter
- Fixed installation: 6 x outer diameter
Test voltage
- At 0.14 mm²: 1200 V
Temperature range
- Occasional flexing: -5°C to +70°C
- Fixed installation: -40°C to +80°C
| Article number | Number of cores and mm² per conductor |
Outer diameter [mm] | Copper index (kg/km) | Weight (kg/km) |
| UNITRONIC® LiYCY | ||||
| 0034302 | 2 x 0.14 | 3.9 | 12 | 20 |
| 0034303 | 3 x 0.14 | 4.1 | 13 | 28 |
| 0034304 | 4 x 0.14 | 4.3 | 14.3 | 33 |
| 0034305 | 5 x 0.14 | 4.6 | 15.5 | 38 |
| 0034306 | 6 x 0.14 | 4.9 | 18.2 | 38 |
| 0034307 | 7 x 0.14 | 4.9 | 19 | 49 |
| 0034308 | 8 x 0.14 | 5.8 | 21.2 | 56 |
| 0034310 | 10 x 0.14 | 6.1 | 28.5 | 66 |
| 0034312 | 12 x 0.14 | 6.3 | 30.4 | 78 |
| 0034314 | 14 x 0.14 | 6.7 | 32 | 80 |
| 0034315 | 15 x 0.14 | 6.9 | 37.8 | 86 |
| 0034316 | 16 x 0.14 | 7 | 43 | 90 |
| 0034318 | 18 x 0.14 | 7.3 | 48.8 | 104 |
| 0034320 | 20 x 0.14 | 7.7 | 53.9 | 116 |
| 0034321 | 21 x 0.14 | 7.9 | 55.5 | 121 |
| 0034324 | 24 x 0.14 | 8.4 | 61 | 132 |
| 0034325 | 25 x 0.14 | 8.5 | 63 | 149 |
| 0034328 | 28 x 0.14 | 8.5 | 66.1 | 153 |
| 0034330 | 30 x 0.14 | 8.7 | 69 | 158 |
| 0034336 | 36 x 0.14 | 9.3 | 83 | 183 |
| 0034340 | 40 x 0.14 | 10.4 | 87.5 | 210 |
| 0034344 | 44 x 0.14 | 10.7 | 110.5 | 225 |
| 0034350 | 50 x 0.14 | 11.1 | 122.5 | 253 |
| 0034402 | 2 x 0.25 | 4.5 | 16 | 32 |
| 0034403 | 3 x 0.25 | 4.7 | 21 | 37 |
| 0034404 | 4 x 0.25 | 5 | 24 | 41.3 |
| 0034405 | 5 x 0.25 | 5.6 | 29 | 51.2 |
| 0034406 | 6 x 0.25 | 6 | 30 | 58 |
| 0034407 | 7 x 0.25 | 6 | 37 | 65 |
| 0034408 | 8 x 0.25 | 7.1 | 42 | 73 |
| 0034410 | 10 x 0.25 | 7.5 | 46 | 82 |
| 0034412 | 12 x 0.25 | 7.7 | 53 | 98 |
| 0034414 | 14 x 0.25 | 8 | 59 | 99 |
| 0034415 | 15 x 0.25 | 8.3 | 61 | 111 |
| 0034416 | 16 x 0.25 | 8.4 | 64 | 124 |
| 0034418 | 18 x 0.25 | 8.8 | 83 | 143 |
| 0034420 | 20 x 0.25 | 9.3 | 88 | 152.3 |
| 0034421 | 21 x 0.25 | 9.6 | 93 | 161 |
| 0034425 | 25 x 0.25 | 10.7 | 114 | 172 |
| 0034428 | 28 x 0.25 | 10.8 | 126 | 181.1 |
| 0034432 | 32 x 0.25 | 11.4 | 138 | 203 |
| 0034436 | 36 x 0.25 | 11.8 | 148 | 220 |
| 0034440 | 40 x 0.25 | 12.7 | 157 | 248 |
| 0034450 | 50 x 0.25 | 13.8 | 178 | 318 |
| 0034461 | 61 x 0.25 | 15 | 205 | 365.2 |
| 0034502 | 2 x 0.34 | 4.9 | 21 | 37 |
| 0034503 | 3 x 0.34 | 5.1 | 27 | 49 |
| 0034504 | 4 x 0.34 | 5.7 | 28 | 59 |
| 0034505 | 5 x 0.34 | 6.2 | 30 | 66 |
| 0034506 | 6 x 0.34 | 6.8 | 45 | 79 |
| 0034507 | 7 x 0.34 | 6.8 | 48 | 83 |
| 0034508 | 8 x 0.34 | 7.8 | 52 | 94 |
| 0034510 | 10 x 0.34 | 8.3 | 74 | 129.2 |
| 0034512 | 12 x 0.34 | 8.5 | 80 | 142 |
| 0034514 | 14 x 0.34 | 8.9 | 86 | 154 |
| 0034515 | 15 x 0.34 | 9.2 | 90 | 155 |
| 0034516 | 16 x 0.34 | 9.4 | 94 | 160 |
| 0034518 | 18 x 0.34 | 10.2 | 103 | 173 |
| 0034520 | 20 x 0.34 | 10.7 | 112 | 192 |
| 0034521 | 21 x 0.34 | 11.1 | 116 | 199.2 |
| 0034525 | 25 x 0.34 | 11.9 | 135 | 259 |
| 0034528 | 28 x 0.34 | 12 | 153 | 280 |
| 0034530 | 30 x 0.34 | 12.3 | 159 | 291.1 |
| 0034532 | 32 x 0.34 | 13 | 165 | 305 |
| 0034536 | 36 x 0.34 | 13.4 | 179 | 331 |
| 0034540 | 40 x 0.34 | 14.8 | 200 | 365 |
| 0034550 | 50 x 0.34 | 15.9 | 235 | 431 |
| 0034602 | 2 x 0.5 | 5.6 | 29 | 54 |
| 0034603 | 3 x 0.5 | 5.9 | 38 | 67 |
| 0034604 | 4 x 0.5 | 6.3 | 43 | 77 |
| 0034605 | 5 x 0.5 | 7 | 51 | 90 |
| 0034606 | 6 x 0.5 | 7.6 | 59 | 104 |
| 0034607 | 7 x 0.5 | 7.6 | 65 | 112 |
| 0034608 | 8 x 0.5 | 8.7 | 70 | 135 |
| 0034610 | 10 x 0.5 | 9.3 | 88 | 160 |
| 0034612 | 12 x 0.5 | 9.6 | 99 | 177 |
| 0034618 | 18 x 0.5 | 11.8 | 134 | 239 |
| 0034620 | 20 x 0.5 | 12.1 | 149 | 276 |
| 0034625 | 25 x 0.5 | 13.7 | 211 | 352 |
| 0034630 | 30 x 0.5 | 14.5 | 230 | 397 |
| 0034702 | 2 x 0.75 | 6 | 38 | 64 |
| 0034703 | 3 x 0.75 | 6.3 | 49 | 76 |
| 0034704 | 4 x 0.75 | 7 | 58 | 92 |
| 0034705 | 5 x 0.75 | 7.6 | 67 | 109 |
| 0034707 | 7 x 0.75 | 8.2 | 100 | 156 |
| 0034710 | 10 x 0.75 | 10.5 | 130 | 187 |
| 0034712 | 12 x 0.75 | 10.8 | 154 | 218 |
| 0034718 | 18 x 0.75 | 13 | 195 | 327 |
| 0034725 | 25 x 0.75 | 15.3 | 280 | 454 |
| 0034730 | 30 x 0.75 | 15.8 | 312 | 486 |
| 0034802 | 2 x 1 | 6.3 | 43 | 72 |
| 0034803 | 3 x 1 | 6.8 | 56 | 90 |
| 0034804 | 4 x 1 | 7.3 | 68 | 109 |
| 0034805 | 5 x 1 | 8 | 79 | 126 |
| 0034807 | 7 x 1 | 8.6 | 118 | 171 |
| 0034810 | 10 x 1 | 11.1 | 140 | 228 |
| 0034812 | 12 x 1 | 11.4 | 168 | 259 |
| 0034818 | 18 x 1 | 13.4 | 252 | 389 |
| 0034825 | 25 x 1 | 16.2 | 335 | 517 |
| 0034902 | 2 x 1.5 | 7.1 | 58 | 90 |
| 0034903 | 3 x 1.5 | 7.5 | 74 | 115 |
| 0034904 | 4 x 1.5 | 8.1 | 108 | 153 |
| 0034905 | 5 x 1.5 | 8.8 | 129 | 176 |
| 0034907 | 7 x 1.5 | 9.5 | 164 | 220 |
| 0034912 | 12 x 1.5 | 12.7 | 254 | 376 |
| 0034918 | 18 x 1.5 | 15.3 | 350 | 519 |
| 0034925 | 25 x 1.5 | 17.9 | 550 | 901 |
