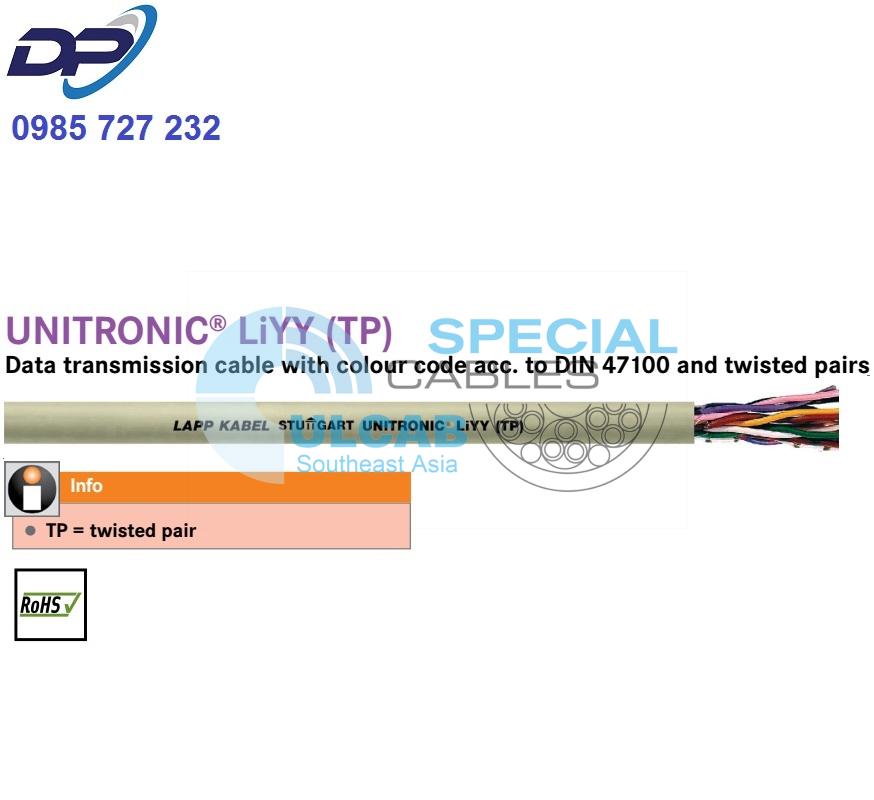

UNITRONIC® LiYY (TP)
Data cable twisted in pairs with colour code according to DIN 47100
UNITRONIC® LiYY (TP) – PVC data cable twisted in pairs with colour code DIN 47100 for use in machinery and apparatus construction and in measurement, control and regulation technology
(TP) = twisted pair
Benefits
- Decoupling of circuits by means of twisted-pair (TP) design (crosstalk effects)
Application range
- Electronic devices tend to leave little room for installing cables. Short travel distances and small bending radii are required. This cable ideally meets these requirements.
- Dry or damp rooms
Product features
- Pairwise stranding, therefore largely electrical decoupling. Additional screening is often not required.
- Flame-retardant according to IEC 60332-1-2
Norm references / approvals
- Based on VDE 0812
Design
- Finely stranded bare copper wires
- Core insulation made of PVC
- Twisted pair (TP) structure
- Outer sheath made of PVC
Outer sheath colour: pebble grey (RAL 7032)
Classification
- ETIM 5.0 Class-ID: EC000104
- ETIM 5.0 Class-Description: Control cable
Core identification code
- DIN 47100, refer to appendix T9
Operating capacitance
- approx. 120 nF/km
Peak operating voltage
- (not for power applications)
at 0.14 mm²: 350 V
at ≥ 0.25 mm²: 500 V
Inductance
- approx. 0.65 mH/km
Conductor design
- Fine copper wire strands
Minimum bending radius
- Occasional flexing: 10 x outer diameter
- Fixed installation: 4 x outer diameter
Test voltage
- At 0.14 mm²: 1200 V
Temperature range
- Occasional flexing: -5°C to +70°C
- Fixed installation: -40°C to +80°C
| Article number | Number of cores and mm² per conductor |
Outer diameter [mm] | Copper index (kg/km) | Weight (kg/km) |
| UNITRONIC® LiYY (TP) | ||||
| 0035101 | 2 x 2 x 0.14 | 4.8 | 5.4 | 25.5 |
| 0035102 | 3 x 2 x 0.14 | 4.9 | 8 | 32 |
| 0035103 | 4 x 2 x 0.14 | 5.5 | 10.7 | 38.5 |
| 0035104 | 5 x 2 x 0.14 | 5.7 | 13.4 | 45.5 |
| 0035105 | 6 x 2 x 0.14 | 6.2 | 16.1 | 51 |
| 0035108 | 10 x 2 x 0.14 | 8 | 26.9 | 77.5 |
| 0035110 | 12 x 2 x 0.14 | 8.2 | 32.3 | 94.5 |
| 0035113 | 16 x 2 x 0.14 | 9.1 | 43 | 110.5 |
| 0035160 | 2 x 2 x 0.25 | 6.1 | 9.6 | 38 |
| 0035161 | 3 x 2 x 0.25 | 6.2 | 14.4 | 48 |
| 0035162 | 4 x 2 x 0.25 | 6.9 | 19.2 | 59 |
| 0035163 | 6 x 2 x 0.25 | 7.8 | 28.8 | 80 |
| 0035164 | 8 x 2 x 0.25 | 9.2 | 38.4 | 98 |
| 0035165 | 10 x 2 x 0.25 | 10.3 | 48 | 115 |
| 0035170 | 2 x 2 x 0.5 | 7.9 | 19.2 | 72 |
| 0035171 | 3 x 2 x 0.5 | 8 | 28.8 | 83 |
| 0035172 | 4 x 2 x 0.5 | 8.7 | 38.4 | 115 |
| 0035174 | 8 x 2 x 0.5 | 12.2 | 76.8 | 206 |
| 0035175 | 10 x 2 x 0.5 | 13.2 | 96 | 247 |
