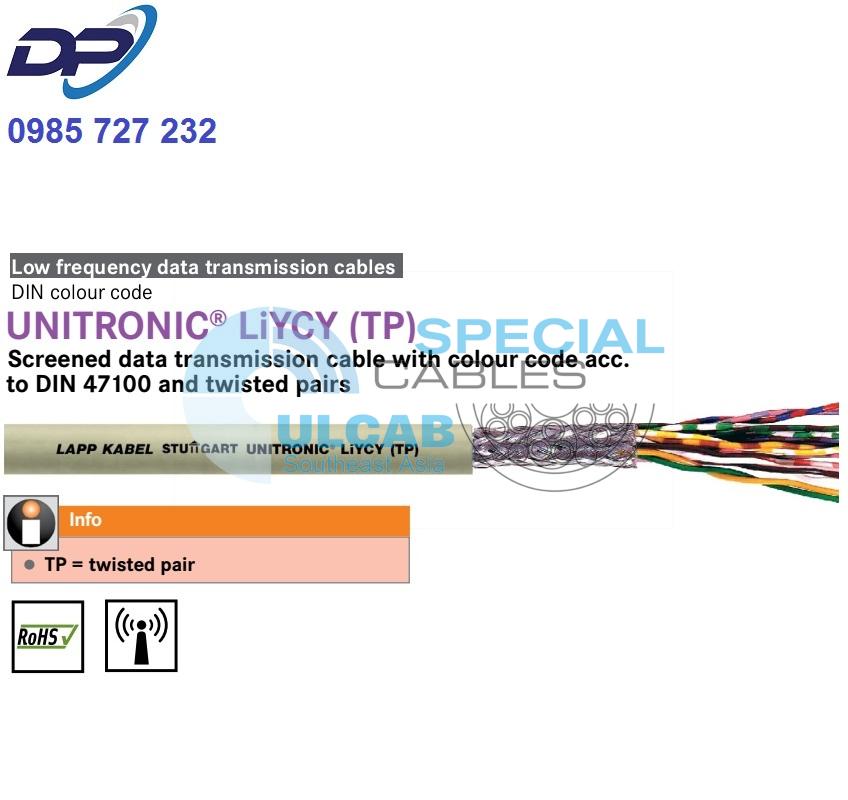

UNITRONIC® LiYCY (TP)
Shielded data cable with colour code according to DIN 47100 and twisted in pairs
UNITRONIC® LiYCY (TP) – shielded PVC data cable with colour code DIN 47100 for use in machinery and apparatus construction and in measurement, control and regulation technology
(TP) = twisted pair
Benefits
- Decoupling of circuits by means of
twisted-pair (TP) design (crosstalk effects) - Overall shield minimises electrical
interference
Application range
- Versatile applications for computer systems, electronic control and regulating devices, office machines, scales etc.
- Dry or damp rooms
Product features
- Good protection against capacitive interference from external electric fields (e.g. power cable)
- Flame-retardant according to IEC 60332-1-2
Norm references / approvals
- Based on VDE 0812
Design
- Finely stranded bare copper wires
- Core insulation made of PVC
- Twisted pair (TP) structure
- Tin-plated copper braiding
- Outer sheath made of PVC
Outer sheath colour: pebble grey (RAL 7032)
Classification
- ETIM 5.0 Class-ID: EC000104
- ETIM 5.0 Class-Description: Control cable
Core identification code
- DIN 47100, refer to appendix T9
Operating capacitance
- C/C approx. 120 nF/km
C/S: approx. 160 nF/km
Peak operating voltage
- (not for power applications)
at 0.14 mm²: 350 V
at ≥ 0.25 mm²: 500 V
Inductance
- approx. 0.65 mH/km
Conductor design
- Fine copper wire strands
Minimum bending radius
- Occasional flexing: 15 x outer diameter
- Fixed installation: 6 x outer diameter
Test voltage
- At 0.14 mm²: 1200 V
Temperature range
- Occasional flexing: -5°C to +70°C
- Fixed installation: -40°C to +80°C
| Article number | Number of cores and mm² per conductor |
Outer diameter [mm] | Copper index (kg/km) | Weight (kg/km) |
| UNITRONIC® LiYCY (TP) | ||||
| 0035131 | 2 x 2 x 0.14 | 5.3 | 18.5 | 39 |
| 0035141 | 3 x 2 x 0.14 | 5.8 | 23 | 48 |
| 0035132 | 4 x 2 x 0.14 | 6.2 | 26.6 | 54 |
| 0035133 | 6 x 2 x 0.14 | 7. 1 | 48.5 | 85 |
| 0035150 | 8 x 2 x 0.14 | 8.2 | 53.7 | 97 |
| 0035134 | 10 x 2 x 0.14 | 8.7 | 59 | 110 |
| 0035135 | 12 x 2 x 0.14 | 8.9 | 66 | 142 |
| 0035136 | 16 x 2 x 0.14 | 10.2 | 79 | 154 |
| 0035142 | 20 x 2 x 0.14 | 11.3 | 97 | 184 |
| 0035137 | 25 x 2 x 0.14 | 12.5 | 113 | 238 |
| 0035800 | 2 x 2 x 0.25 | 6.3 | 28 | 54 |
| 0035801 | 3 x 2 x 0.25 | 7. 1 | 39.6 | 68.5 |
| 0035802 | 4 x 2 x 0.25 | 7.6 | 44.9 | 81 |
| 0035803 | 6 x 2 x 0.25 | 8.5 | 69.5 | 115 |
| 0035804 | 8 x 2 x 0.25 | 10.3 | 76.9 | 130 |
| 0035805 | 10 x 2 x 0.25 | 11 | 102 | 158 |
| 0035806 | 12 x 2 x 0.25 | 11.3 | 120 | 190 |
| 0035807 | 16 x 2 x 0.25 | 12.5 | 146.5 | 238 |
| 0035808 | 25 x 2 x 0.25 | 16.1 | 205 | 344 |
| 0035810 | 2 x 2 x 0.5 | 7.9 | 48.1 | 93 |
| 0035811 | 3 x 2 x 0.5 | 8.7 | 73.7 | 129 |
| 0035812 | 4 x 2 x 0.5 | 9.4 | 82 | 146 |
| 0035813 | 6 x 2 x 0.5 | 11. 1 | 110 | 198 |
| 0035814 | 8 x 2 x 0.5 | 13.1 | 139 | 259 |
| 0035816 | 12 x 2 x 0.5 | 14.9 | 198.3 | 354 |
| 0035817 | 16 x 2 x 0.5 | 16.5 | 240 | 459 |
| 0035820 | 2 x 2 x 0.75 | 8.5 | 58 | 106 |
| 0035821 | 3 x 2 x 0.75 | 9.4 | 84 | 140 |
| 0035822 | 4 x 2 x 0.75 | 10.7 | 108 | 179 |
| 0035827 | 5 x 2 x 0.75 | 11. 1 | 126 | 215 |
| 0035823 | 6 x 2 x 0.75 | 12.1 | 146 | 246 |
| 0035824 | 8 x 2 x 0.75 | 14.7 | 180 | 305 |
| 0035825 | 12 x 2 x 0.75 | 16.2 | 261 | 456 |
| 0035830 | 2 x 2 x 1 | 9 | 84 | 142 |
| 0035831 | 3 x 2 x 1 | 10.4 | 96 | 173 |
| 0035832 | 4 x 2 x 1 | 11.3 | 121 | 212 |
| 0035836 | 5 x 2 x 1 | 11.8 | 161 | 266 |
