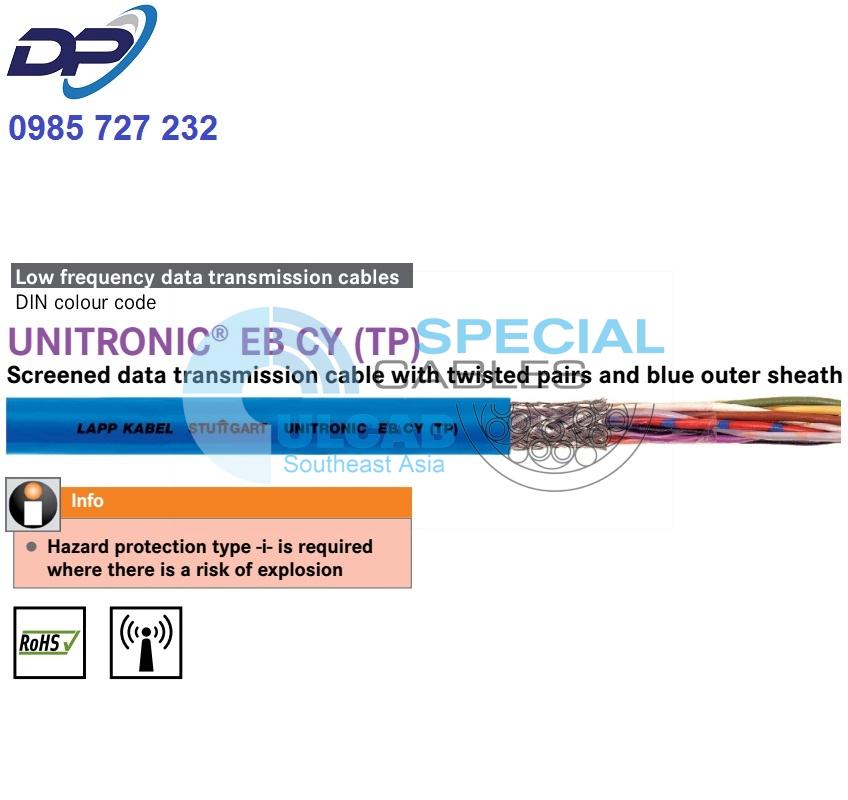

UNITRONIC® EB CY (TP)
Shielded data cable with blue outer sheath and twisted pairs
UNITRONIC® EB CY (TP) – shielded PVC data cable in twisted pairs with colour code DIN 47100 and blue sheath for use in intrinsically safe systems
Ignition protection type -i- is required where there is a risk of explosion
Benefits
- Overall shield minimises electrical
interference - Decoupling of circuits by means of
twisted-pair (TP) design (crosstalk effects)
Application range
- Reliable data transmission in intrinsically safe circuits
- In EMC-sensitive environments
(electromagnetic compatibility)
Product features
- For intrinsically safe circuits (ignition protection type i – intrinsic safety) according to IEC 60079-14:2013 / EN 60079-14:2014 / VDE 0165-1:2014, section 16.2.2
- Flame-retardant according to IEC 60332-1-2
Norm references / approvals
- Based on VDE 0812
Design
- Finely stranded bare copper wires
- Core insulation made of PVC
- Twisted pair (TP) structure
- Tin-plated copper braiding
- Outer sheath made of PVC
Outer sheath colour: sky blue (RAL 5015)
Classification
- ETIM 5.0 Class-ID: EC000104
- ETIM 5.0 Class-Description: Control cable
Core identification code
- DIN 47100, refer to appendix T9
Operating capacitance
- C/C approx. 100 nF/km
- C/S approx. 140 nF/km
Peak operating voltage
- (not for power applications)
900 V
Inductance
- approx. 0.65 mH/km
Conductor design
- Strand, fine-wire in accordance with IEC 60228 Cl. 5
Minimum bending radius
- Occasional flexing: 15 x outer diameter
- Fixed installation: 6 x outer diameter
Test voltage
- 2500 V
Temperature range
- Occasional flexing: -5°C to +70°C
- Fixed installation: -40°C to +80°C
| Article number | Number of cores and mm² per conductor |
Outer diameter [mm] | Copper index (kg/km) | Weight (kg/km) |
| UNITRONIC® EB CY (TP) | ||||
| 0012620 | 2 x 2 x 0.75 | 8.7 | 58 | 106 |
| 0012621 | 3 x 2 x 0.75 | 9.6 | 84 | 140 |
| 0012622 | 4 x 2 x 0.75 | 10.9 | 108 | 179 |
| 0012624 | 6 x 2 x 0.75 | 12.3 | 146 | 246 |
| 0012626 | 10 x 2 x 0.75 | 16.1 | 220 | 392 |
