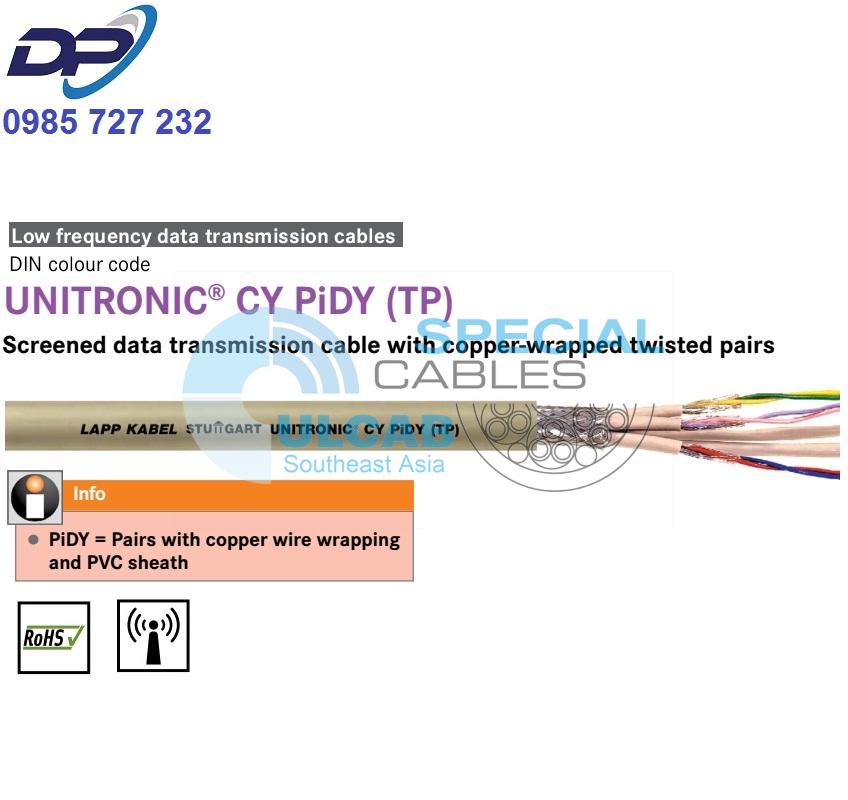

UNITRONIC® CY PiDY (TP)
Shielded data cable with copper-wrapped core pairs, twisted in pairs
UNITRONIC® CY PiDY (TP) – flexible, shielded data cable twisted in pairs with copper-wrapped core pairs, circuit decoupling, EMC interference suppression
PiDY = Pairs with copper wrapping and PVC sheath
Benefits
- Decoupling of circuits by means of
twisted-pair (TP) design (crosstalk effects) - Individually shielded core pairs and the overall shielding minimise electrical interference
Application range
- Cable should preferably be used in areas where a high level of interference and mutual influences are to be expected
- Data processing, control and measurement technology, safety engineering systems and as an electronics cable
- Suitable for the transmission in case of varying signal levels in the circuits and with weak, sensitive signals
- For fixed installation and flexible use
- Dry or damp rooms
Product features
- The cable remains flexible despite multiple screening
- Flame-retardant according to IEC 60332-1-2
Norm references / approvals
- Based on VDE 0812
Design
- Finely stranded bare copper wires
- Core insulation made of PVC
- Cores twisted into pairs
- Copper wrapping over pairs
- Inner sheath made of PVC over shielded pairs
- Tin-plated copper braiding
- Outer sheath made of PVC
Outer sheath colour: pebble grey (RAL 7032)
Classification
- ETIM 5.0 Class-ID: EC000104
- ETIM 5.0 Class-Description: Control cable
Core identification code
- DIN 47100, refer to appendix T9
Operating capacitance
- C/C approx. 120 nF/km
C/S: approx. 160 nF/km
Peak operating voltage
- (not for power applications)
350 V
Inductance
- approx. 0.65 mH/km
Conductor design
- Strand, fine-wire
Minimum bending radius
- Fixed installation: 6 x outer diameter
Test voltage
- 1200 V
Loop resistance
- < 160 ohm/km
Characteristic impedance
- approx. 65 ohm
Temperature range
- Occasional flexing: -5°C to +70°C
- Fixed installation: -40°C to +80°C
| Article number | Number of cores and mm² per conductor |
Outer diameter [mm] | Copper index (kg/km) | Weight (kg/km) |
| UNITRONIC® CY PiDY (TP) | ||||
| 0034250 | 2 x 2 x 0.25 | 9.3 | 59.6 | 112 |
| 0034251 | 3 x 2 x 0.25 | 9.8 | 72.7 | 136 |
| 0034252 | 4 x 2 x 0.25 | 11. 1 | 88.2 | 168 |
| 0034253 | 5 x 2 x 0.25 | 11.8 | 103.8 | 201 |
| 0034254 | 6 x 2 x 0.25 | 12.8 | 125.7 | 244 |
| 0034255 | 7 x 2 x 0.25 | 14.1 | 143.6 | 274 |
| 0034256 | 8 x 2 x 0.25 | 15.4 | 161 | 325 |
| 0034257 | 10 x 2 x 0.25 | 17. 1 | 186.8 | 342 |
| 0034258 | 12 x 2 x 0.25 | 18.3 | 239.5 | 416 |
| 0034259 | 16 x 2 x 0.25 | 20.3 | 316.7 | 542 |
