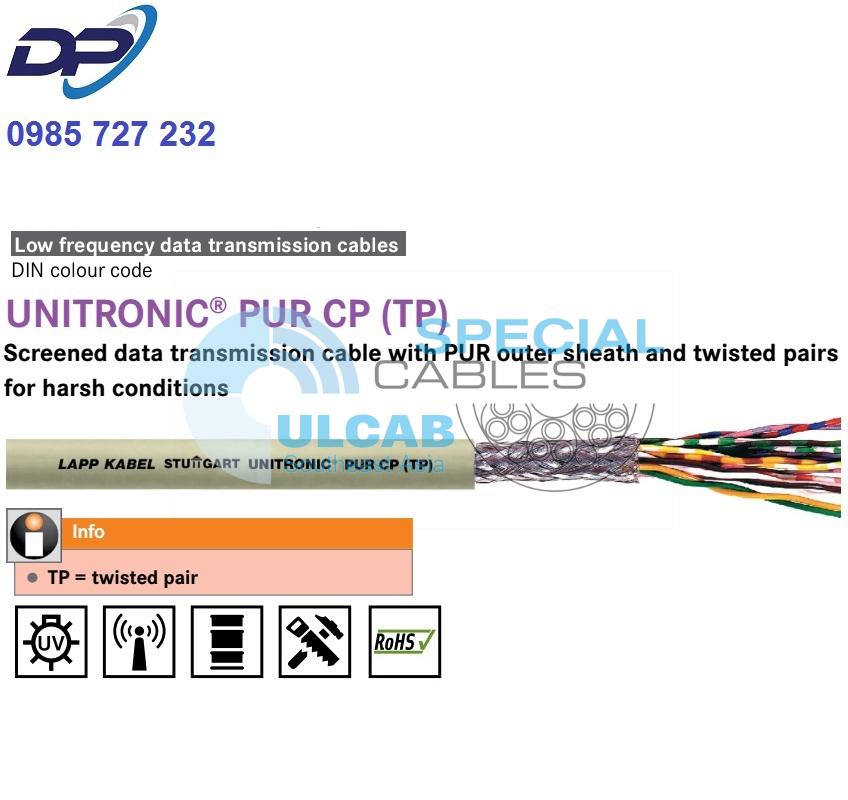

UNITRONIC® PUR CP (TP)
Shielded data cable with PUR outer sheath and twisted pairs for harsh conditions
UNITRONIC® PUR CP (TP) – shielded PUR data cable in twisted pairs for oil- and abrasion-resistant use in apparatus construction and in measurement, control and regulation technology
(TP) = twisted pair
Benefits
- Data cable with PUR sheath for increased mechanical stress, wear-, kink- and tear-resistant
- Durable under harsh conditions thanks to robust PUR sheath material
- Overall shield minimises electrical
interference - Decoupling of circuits by means of
twisted-pair (TP) design (crosstalk effects)
Application range
- For harsh environmental conditions where robust and shielded cables with small dimensions are necessary
Product features
- Low-adhesive surface
- PUR outer sheath is resistant to many oils and hydraulic fluids
- Special notch and tear resistance
- Good UV resistance
- Flame-retardant according to IEC 60332-1-2
Norm references / approvals
- Based on VDE 0812
Design
- Finely stranded bare copper wires
- Core insulation made of PVC
- Twisted pair (TP) structure
- Tin-plated copper braiding
- Outer sheath made of PUR
Outer sheath colour: pebble grey (RAL 7032)
Classification
- ETIM 5.0 Class-ID: EC000104
- ETIM 5.0 Class-Description: Control cable
Core identification code
- DIN 47100, refer to appendix T9
Operating capacitance
- C/C approx. 120 nF/km
C/S: approx. 160 nF/km
Peak operating voltage
- (not for power applications)
at 0.14 mm²: 350 V
at ≥ 0.25 mm²: 500 V
Inductance
- approx. 0.65 mH/km
Conductor design
- Fine copper wire strands
Minimum bending radius
- Occasional flexing: 15 x outer diameter
- Fixed installation: 6 x outer diameter
Test voltage
- At 0.14 mm²: 1200 V
Temperature range
- Occasional flexing: -5°C to +70°C
- Fixed installation: -40°C to +80°C
| Article number | Number of cores and mm² per conductor | Outer diameter (mm) | Copper index (kg/km) | Weight (kg/km) |
| UNITRONIC® PUR CP (TP) | ||||
| 0032850 | 2 x 2 x 0.25 | 6.3 | 28 | 54 |
| 0032851 | 3 x 2 x 0.25 | 7. 1 | 40 | 66 |
| 0032852 | 4 x 2 x 0.25 | 7.6 | 45 | 81 |
| 0032854 | 6 x 2 x 0.25 | 8.5 | 70 | 115 |
| 0032860 | 2 x 2 x 0.5 | 8.6 | 48 | 93 |
| 0032861 | 3 x 2 x 0.5 | 8.7 | 74 | 129 |
| 0032862 | 4 x 2 x 0.5 | 9.4 | 82 | 146 |
| 0032864 | 6 x 2 x 0.5 | 11. 1 | 110 | 198 |
| 0032872 | 4 x 2 x 0.75 | 10.7 | 108 | 179 |
| 0032873 | 5 x 2 x 0.75 | 11. 1 | 126 | 215 |
