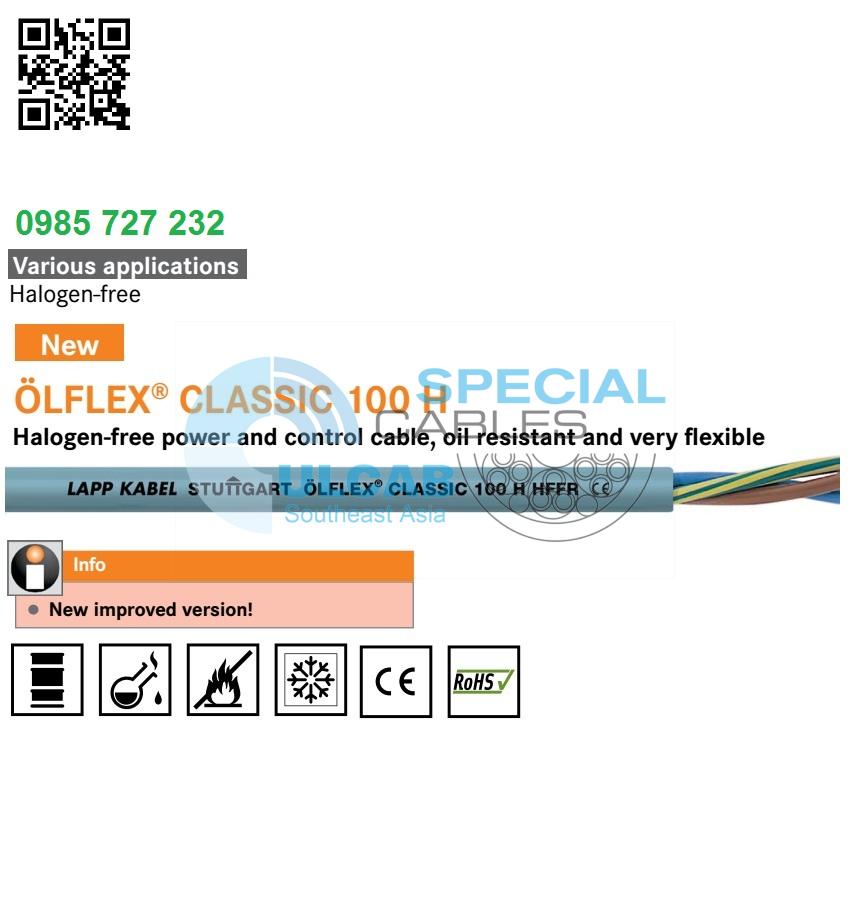

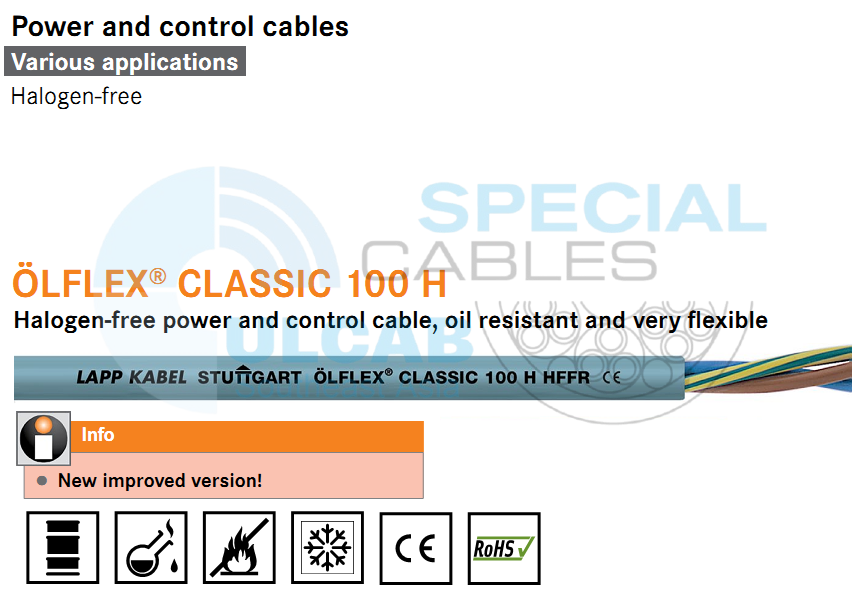

LAPP KABEL ÖLFLEX® CLASSIC 100 H
Halogen-free power and control cable, oil resistant and very flexible
ÖLFLEX® CLASSIC 100 H – halogen-free flexible cable, HFFR and oil-resistant. Power and control cable for various applications, nominal voltage: 450/750V
- High flexibility and oil-resistance
- Nominal voltage 450/750V
- Torsion-resistant for drip loops
Benefits
- Easy handling and installation due to very flexible design
- Wide application range due to excellent product features
Application range
- Public buildings like airports or railway stations
- Plant construction, machine building
Heating and air-conditioning systems
Event equipment - Particularly where human and animal life as well as valuable property are exposed to a high risk of fire hazards
- Suitable for torsional applications which are typical for the loop in wind turbine generators (WTG)
Product features
- Flame-retardant according to IEC 60332-1-2
(flame spread on a single cable) - No flame propagation according to IEC 60332-3-24 or IEC 60332-3-25 (flame spread on vertical cable or conductor bunch)
- Halogen-free according to IEC 60754-1
(amount of halogen acidic gas)
Corrosiveness of combustion gases according to IEC 60754-2 (degree of acidity) - Low smoke density according to IEC 61034-2
- Oil-resistant according to EN 50363-4-1 (TM5)
and UL OIL RES I and OIL RES II - Ozone-resistant according to EN 50396
Norm references / approvals
- Based on IEC 60227-5 and EN 50525-2-51
- Based on EN 50525-3-11
Design
- Finely stranded bare copper wires
- Core insulation: Halogen-free
- Sheath made of special halogen-free compound, grey (RAL 7001)
■ Technical data
Classification
- ETIM 5.0 Class-ID: EC001578
- ETIM 5.0 Class-Description: Flexible cable
Core identification code
- Coloured according to VDE 0293-308, see appendix T9
Conductor design
- Fine wire according to VDE 0295,
class 5 / IEC 60228 class 5
Torsion application in WTG
- TW-0 & TW-2, refer to appendix T0
Minimum bending radius
- Occasional flexing: 15 x outer diameter
- Fixed installation: 4 x outer diameter
Nominal voltage
- U0/U: 450/750 V
Fixed, protected installation:
U0/U: 600/1000 V
Test voltage
- 4000 V
Protective conductor
- G = with GN-YE protective conductor
- X = without protective conductor
Temperature range
- Occasional flexing: -30°C to +70°C
- Fixed installation: -40°C to +80°C
| Article number | Number of cores and mm² per conductor | Outer diameter (mm) | Copper index (kg/km) | Weight (kg/km) |
| 0014150 | 2 X 1.5 | 7.6 | 28.8 | 91 |
| 0014151 | 3 G 1.5 | 8.3 | 43.2 | 114 |
| 0014152 | 4 G 1.5 | 9.0 | 57.6 | 140 |
| 0014153 | 5 G 1.5 | 10.1 | 72.0 | 176 |
| 0014156 | 2 X 2.5 | 9.0 | 48.0 | 133 |
| 0014157 | 3 G 2.5 | 9.7 | 72.0 | 167 |
| 0014158 | 4 G 2.5 | 10.8 | 96.0 | 207 |
| 0014159 | 5 G 2.5 | 11.9 | 120.0 | 260 |
| 0014162 | 3 G 4 | 11.4 | 115.2 | 240 |
| 0014163 | 4 G 4 | 12.7 | 153.6 | 303 |
| 0014164 | 5 G 4 | 13.9 | 192.0 | 372 |
| 0014166 | 3 G 6 | 12.7 | 172.8 | 320 |
| 0014167 | 4 G 6 | 13.9 | 230.4 | 400 |
| 0014168 | 5 G 6 | 15.8 | 288.0 | 510 |
| 0014170 | 4 G 10 | 17.9 | 384.0 | 662 |
| 0014171 | 5 G 10 | 19.9 | 480.0 | 826 |
| 0014173 | 4 G 16 | 20.7 | 614.4 | 957 |
| 0014174 | 5 G 16 | 23.0 | 768.0 | 1193 |
| 0014176 | 4 G 25 | 25.4 | 960.0 | 1480 |
| 0014177 | 5 G 25 | 28.5 | 1,200.0 | 1860 |
| 0014179 | 4 G 35 | 28.8 | 1,344.0 | 1985 |
| 0014180 | 5 G 35 | 32.3 | 1,680.0 | 2490 |
| 0014182 | 4 G 50 | 35.0 | 1,920.0 | 2830 |
| 0014184 | 4 G 70 | 40.0 | 2,688.0 | 3890 |
| 0014186 | 4 G 95 | 46.0 | 3,648.0 | 5110 |
| 0014188 | 4 G 120 | 51.0 | 4,608.0 | 6315 |
