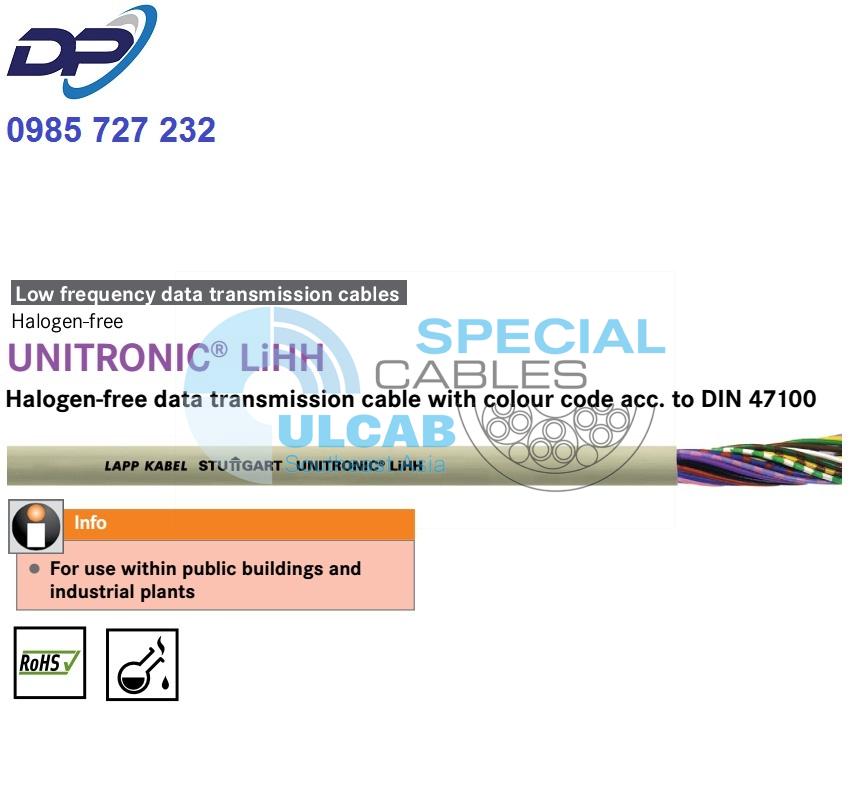

UNITRONIC® LiHH
Halogen-free data cable with colour code according to DIN 47100
UNITRONIC® LiHH – halogen-free data cable for the low-frequency range, particularly for areas with a high density of people
For use within public buildings and industrial plants
Benefits
- Halogen-free: Protection for human life and valuable assets in the event of a fire thanks to low smoke density and low amount of corrosive gases
- Low operating capacitance due to polyolefin-based insulation compound
- Small outer diameters despite a high number of cores
Application range
- Suitable for areas with a high density of people as well as high-value property that must be protected in the event of a fire
- For use within public buildings, transport systems and industrial plants
- For data processing, measurement and control engineering, safety-related systems and as an electronics cable
- 7-wire braided conductor can be used for Maxi TERMI-POINT® wiring (0.34mm² only for this case)
- Dry or damp rooms
Product features
- Flame-retardant according to IEC 60332-1-2
- Halogen-free with low smoke development (LSZH)
- Halogen-free as per IEC 60754-1, Low corrosivity/ acidity of combustion gases per IEC 60754-2, Low toxicity of comb. gases per EN 50305
- Low smoke density according to IEC 61034-2
Norm references / approvals
- Based on VDE 0812
Design
- Fine-wire/multi-wire (0.34 mm²) strand made of bare copper wires
- Core insulation made of special halogen-free compound
- Outer sheath made of special halogen-free compound
Outer sheath colour: pebble grey (RAL 7032)
Classification
- ETIM 5.0 Class-ID: EC000104
- ETIM 5.0 Class-Description: Control cable
Core identification code
- DIN 47100 without colour repetition, refer to table T9
Operating capacitance
- approx. 80 nF/km
Peak operating voltage
- (not for power applications)
250 V
Inductance
- approx. 0.65 mH/km
Conductor design
- Strands, fine-wire
0.34 mm²: 7-wire
Minimum bending radius
- Occasional flexing: 10 x outer diameter
- Fixed installation: 6 x outer diameter
Test voltage
- 1200 V
Temperature range
- Occasional flexing: -5°C to +70°C
- Fixed installation: -30°C to +80°C
| Article number | Number of cores and mm² per conductor | Outer diameter (mm) | Copper index (kg/km) | Weight (kg/km) |
| UNITRONIC® LiHH | ||||
| 0037100 | 2 x 0.14 | 3.4 | 2.7 | 12 |
| 0037101 | 3 x 0.14 | 3.6 | 4 | 15 |
| 0037102 | 4 x 0.14 | 3.8 | 5.4 | 17 |
| 0037103 | 5 x 0.14 | 4.1 | 6.7 | 22 |
| 0037104 | 6 x 0.14 | 4.4 | 8.1 | 25 |
| 0037105 | 7 x 0.14 | 4.4 | 9.4 | 26 |
| 0037106 | 8 x 0.14 | 5.1 | 10.8 | 29 |
| 0037107 | 10 x 0.14 | 5.4 | 13.4 | 35 |
| 0037108 | 12 x 0.14 | 5.8 | 16.1 | 43 |
| 0037109 | 20 x 0.14 | 7.2 | 26.8 | 73 |
| 0037110 | 25 x 0.14 | 8 | 34.6 | 91 |
| 0037120 | 2 x 0.25 | 4 | 4.8 | 22 |
| 0037121 | 3 x 0.25 | 4.2 | 7.2 | 25 |
| 0037122 | 4 x 0.25 | 4.5 | 9.6 | 28 |
| 0037123 | 5 x 0.25 | 4.9 | 12 | 34 |
| 0037124 | 6 x 0.25 | 5.3 | 14.4 | 39 |
| 0037125 | 7 x 0.25 | 5.3 | 16.8 | 42 |
| 0037126 | 8 x 0.25 | 6.4 | 19.2 | 50 |
| 0037127 | 10 x 0.25 | 7 | 24 | 60 |
| 0037128 | 12 x 0.25 | 7.2 | 28.8 | 67 |
| 0037129 | 16 x 0.25 | 7.9 | 38.4 | 85 |
| 0037140 | 2 x 0.34 | 4.4 | 6.5 | 28 |
| 0037141 | 3 x 0.34 | 4.6 | 9.8 | 30 |
| 0037142 | 4 x 0.34 | 5 | 13.1 | 40 |
| 0037143 | 5 x 0.34 | 5.7 | 16.3 | 44 |
| 0037144 | 7 x 0.34 | 6.1 | 22.8 | 60 |
| 0037146 | 10 x 0.34 | 7.8 | 32.6 | 80 |
| 0037147 | 12 x 0.34 | 8 | 39.2 | 97 |
| 0037150 | 2 x 0.5 | 4.9 | 9.6 | 31 |
| 0037151 | 3 x 0.5 | 5.2 | 14.4 | 37 |
| 0037152 | 4 x 0.5 | 5.8 | 19.2 | 45 |
| 0037153 | 5 x 0.5 | 6.3 | 24 | 58 |
| 0037154 | 7 x 0.5 | 7 | 33.6 | 72 |
| 0037155 | 12 x 0.5 | 9.1 | 57.6 | 117 |
| 0037160 | 2 x 0.75 | 5.3 | 14.4 | 41 |
| 0037162 | 4 x 0.75 | 6.3 | 28.8 | 60 |
| 0037163 | 5 x 0.75 | 7. 1 | 36 | 70 |
| 0037164 | 7 x 0.75 | 7.7 | 50.4 | 85 |
| 0037165 | 12 x 0.75 | 10.4 | 86.4 | 165 |
| 0037171 | 3 x 1 | 6.1 | 28.8 | 57 |
| 0037172 | 4 x 1 | 6.6 | 38.4 | 67 |
| 0037181 | 3 x 1.5 | 7.4 | 43.2 | 72 |
| 0037182 | 4 x 1.5 | 8 | 57.6 | 87 |
