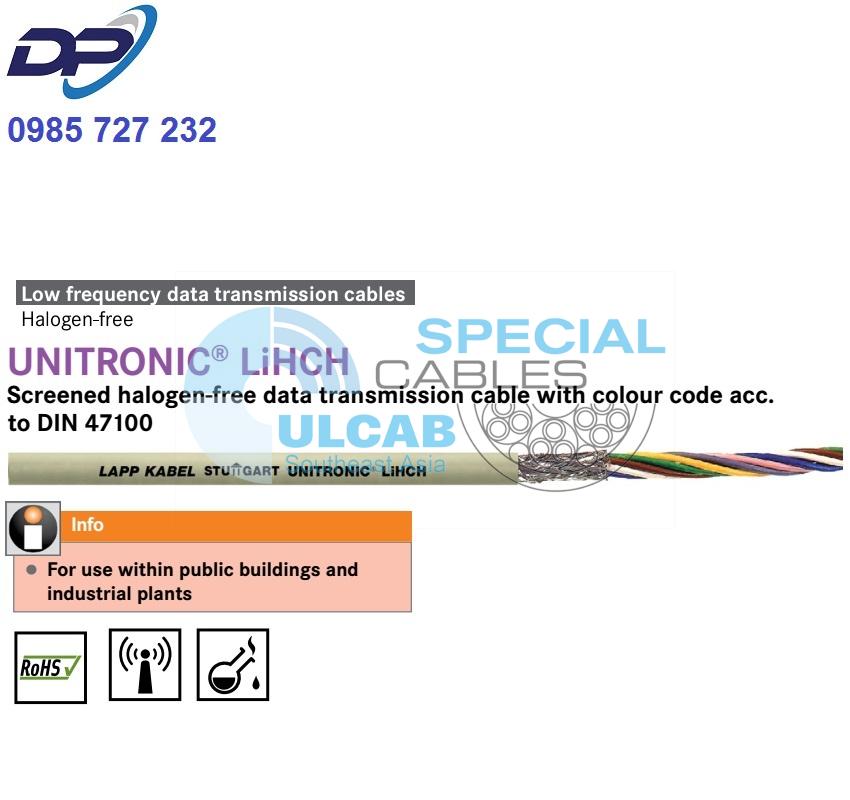

UNITRONIC® LiHCH
Shielded, halogen-free data cable with colour code according to DIN 47100
UNITRONIC® LiHCH – shielded, halogen-free data cable for the low-frequency range, particularly for areas with a high density of people
For use within public buildings and industrial plants
Benefits
- Halogen-free: Protection for human life and valuable assets in the event of a fire thanks to low smoke density and low amount of corrosive gases
- Low operating capacitance due to polyolefin-based insulation compound
- Overall shield minimises electrical
interference
Application range
- Suitable for areas with a high density of people as well as high-value property that must be protected in the event of a fire
- For use within public buildings, transport systems and industrial plants
- For data processing, measurement and control engineering, safety-related systems and as an electronics cable
- For use in computer systems, measurement, control and regulation technology, office equipment, scales – wherever shielded, halogen-free cables with small cross-sections are needed.
- 7-wire braided conductor can be used for Maxi TERMI-POINT® wiring (0.34mm² only for this case)
Product features
- Flame-retardant according to IEC 60332-1-2
- Halogen-free with low smoke development (LSZH)
- Halogen-free as per IEC 60754-1, Low corrosivity/ acidity of combustion gases per IEC 60754-2, Low toxicity of comb. gases per EN 50305
- Low smoke density according to IEC 61034-2
Norm references / approvals
- Based on VDE 0812
Design
- Fine-wire/multi-wire (0.34 mm²) strand made of bare copper wires
- Core insulation made of special halogen-free compound
- Tin-plated copper braiding
- Outer sheath made of special halogen-free compound
Outer sheath colour: pebble grey (RAL 7032)
Classification
- ETIM 5.0 Class-ID: EC000104
- ETIM 5.0 Class-Description: Control cable
Core identification code
- DIN 47100 without colour repetition, refer to table T9
Operating capacitance
- C/C approx. 80 nF/km
- C/S approx. 120 nF/km
Peak operating voltage
- (not for power applications)
250 V
Inductance
- approx. 0.65 mH/km
Conductor design
- Strands, fine-wire
0.34 mm²: 7-wire
Minimum bending radius
- Occasional flexing: 10 x outer diameter
- Fixed installation: 6 x outer diameter
Test voltage
- 1200 V
Temperature range
- Occasional flexing: -5°C to +70°C
- Fixed installation: -30°C to +80°C
| Article number | Number of cores and mm² per conductor | Outer diameter (mm) | Copper index (kg/km) | Weight (kg/km) |
| UNITRONIC® LiHCH | ||||
| 0037302 | 2 x 0.14 | 4.1 | 12 | 22 |
| 0037303 | 3 x 0.14 | 4.3 | 14.1 | 25 |
| 0037304 | 4 x 0.14 | 4.5 | 15.9 | 29 |
| 0037306 | 6 x 0.14 | 5.1 | 22 | 35 |
| 0037307 | 7 x 0.14 | 5.1 | 24 | 38 |
| 0037308 | 8 x 0.14 | 6 | 26 | 41 |
| 0037312 | 12 x 0.14 | 6.5 | 30.4 | 78 |
| 0037316 | 16 x 0.14 | 7.2 | 43 | 90 |
| 0037325 | 25 x 0.14 | 8.7 | 63 | 149 |
| 0037402 | 2 x 0.25 | 4.7 | 15 | 25 |
| 0037403 | 3 x 0.25 | 4.9 | 18 | 30 |
| 0037404 | 4 x 0.25 | 5.2 | 22 | 35 |
| 0037406 | 6 x 0.25 | 6.2 | 30 | 49 |
| 0037407 | 7 x 0.25 | 6.2 | 32 | 52 |
| 0037408 | 8 x 0.25 | 7.3 | 35 | 58 |
| 0037410 | 10 x 0.25 | 7.7 | 42 | 81 |
| 0037425 | 25 x 0.25 | 10.9 | 114 | 172 |
| 0037502 | 2 x 0.34 | 5.1 | 17 | 30 |
| 0037503 | 3 x 0.34 | 5.3 | 21 | 35 |
| 0037504 | 4 x 0.34 | 5.9 | 25 | 42 |
| 0037505 | 5 x 0.34 | 6.4 | 30 | 53 |
| 0037507 | 7 x 0.34 | 7 | 42 | 73 |
| 0037508 | 8 x 0.34 | 8 | 45 | 84 |
| 0037510 | 10 x 0.34 | 8.5 | 63 | 101 |
| 0037516 | 16 x 0.34 | 9.6 | 94 | 160 |
| 0037525 | 25 x 0.34 | 12.1 | 144 | 259 |
| 0037602 | 2 x 0.5 | 5.8 | 29 | 38 |
| 0037603 | 3 x 0.5 | 6.1 | 35 | 47 |
| 0037604 | 4 x 0.5 | 6.5 | 45 | 67 |
| 0037605 | 5 x 0.5 | 7.2 | 50 | 76 |
| 0037606 | 6 x 0.5 | 7.8 | 59 | 84 |
| 0037607 | 7 x 0.5 | 7.8 | 68 | 91 |
| 0037608 | 8 x 0.5 | 8.9 | 75 | 135 |
| 0037610 | 10 x 0.5 | 9.5 | 93 | 131 |
| 0037612 | 12 x 0.5 | 9.8 | 99 | 177 |
| 0037618 | 18 x 0.5 | 11.7 | 134 | 239 |
| 0037625 | 25 x 0.5 | 13.9 | 211 | 352 |
| 0037702 | 2 x 0.75 | 6.2 | 35 | 45 |
| 0037703 | 3 x 0.75 | 6.5 | 46 | 69 |
| 0037704 | 4 x 0.75 | 7.2 | 56 | 80 |
| 0037705 | 5 x 0.75 | 7.8 | 70 | 99 |
| 0037707 | 7 x 0.75 | 8.3 | 90 | 120 |
| 0037802 | 2 x 1 | 6.5 | 43 | 72 |
| 0037803 | 3 x 1 | 7 | 56 | 90 |
| 0037804 | 4 x 1 | 7.5 | 68 | 109 |
| 0037807 | 7 x 1 | 8.8 | 118 | 171 |
| 0037902 | 2 x 1.5 | 7.7 | 58 | 90 |
| 0037903 | 3 x 1.5 | 8.1 | 74 | 115 |
| 0037905 | 5 x 1.5 | 9.5 | 129 | 176 |
