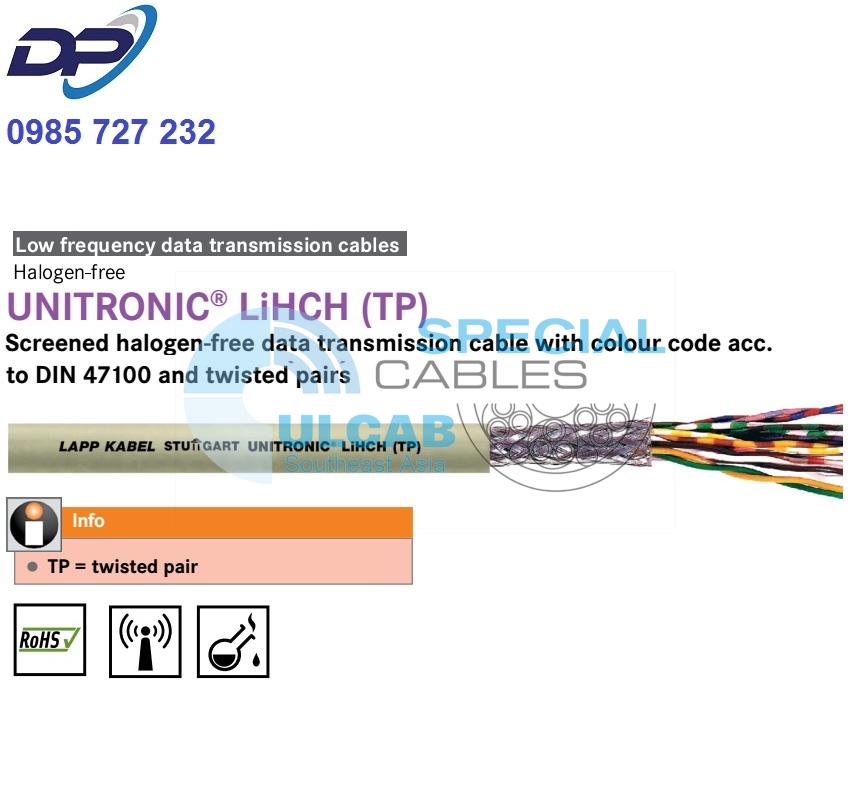

UNITRONIC® LiHCH (TP)
Shielded, halogen-free data cable with colour code according to DIN 47100 and twisted in pairs
UNITRONIC® LiHCH (TP) – halogen-free data cable, shielded and with twisted pairs, for the low-frequency range, particularly for areas with a high density of people
(TP) = twisted pair
Benefits
- Halogen-free: Protection for human life and valuable assets in the event of a fire thanks to low smoke density and low amount of corrosive gases
- Low operating capacitance due to polyolefin-based insulation compound
- Overall shield minimises electrical
interference - Decoupling of circuits by means of
twisted-pair (TP) design (crosstalk effects)
Application range
- Suitable for areas with a high density of people as well as high-value property that must be protected in the event of a fire
- For use within public buildings, transport systems and industrial plants
- For data processing, measurement and control engineering, safety-related systems and as an electronics cable
- For use in computer systems, measurement, control and regulation technology, office equipment, scales – wherever shielded, halogen-free cables with small cross-sections are needed.
Product features
- Flame-retardant according to IEC 60332-1-2
- Halogen-free with low smoke development (LSZH)
- Halogen-free as per IEC 60754-1, Low corrosivity/ acidity of combustion gases per IEC 60754-2, Low toxicity of comb. gases per EN 50305
- Low smoke density according to IEC 61034-2
Norm references / approvals
- Based on VDE 0812
Design
- Finely stranded bare copper wires
- Core insulation made of special halogen-free compound
- Twisted pair (TP) structure
- Tin-plated copper braiding
- Outer sheath made of special halogen-free compound
Outer sheath colour: pebble grey (RAL 7032)
Classification
- ETIM 5.0 Class-ID: EC000104
- ETIM 5.0 Class-Description: Control cable
Core identification code
- DIN 47100 without colour repetition, refer to table T9
Operating capacitance
- C/C approx. 80 nF/km
- C/S approx. 120 nF/km
Peak operating voltage
- (not for power applications)
250 V
Coupling
- At 1 kHz: approx. 300 pF/100 m
Inductance
- approx. 0.65 mH/km
Conductor design
- Fine copper wire strands
Minimum bending radius
- Occasional flexing: 15 x outer diameter
- Fixed installation: 6 x outer diameter
Test voltage
- 1200 V
Temperature range
- Occasional flexing: -5°C to +70°C
- Fixed installation: -30°C to +80°C
| Article number | Number of cores and mm² per conductor | Outer diameter (mm) | Copper index (kg/km) | Weight (kg/km) |
| UNITRONIC® LiHCH (TP) | ||||
| 0038302 | 2 x 2 x 0.14 | 5.9 | 18.5 | 39 |
| 0038303 | 3 x 2 x 0.14 | 6 | 23 | 48 |
| 0038304 | 4 x 2 x 0.14 | 6.4 | 26.6 | 54 |
| 0038306 | 6 x 2 x 0.14 | 7.3 | 48.5 | 85 |
| 0038308 | 8 x 2 x 0.14 | 8.4 | 53.7 | 97 |
| 0038310 | 10 x 2 x 0.14 | 8.9 | 59 | 110 |
| 0038312 | 12 x 2 x 0.14 | 9.1 | 66 | 142 |
| 0038316 | 16 x 2 x 0.14 | 10.4 | 79 | 154 |
| 0038320 | 20 x 2 x 0.14 | 11.5 | 97 | 184 |
| 0038325 | 25 x 2 x 0.14 | 12.7 | 113 | 238 |
| 0038402 | 2 x 2 x 0.25 | 6.5 | 28 | 54 |
| 0038403 | 3 x 2 x 0.25 | 7.3 | 39.6 | 66 |
| 0038404 | 4 x 2 x 0.25 | 7.8 | 44.9 | 81 |
| 0038406 | 6 x 2 x 0.25 | 8.7 | 69.5 | 115 |
| 0038408 | 8 x 2 x 0.25 | 10.5 | 76.9 | 130 |
| 0038412 | 12 x 2 x 0.25 | 11.5 | 120 | 190 |
| 0038416 | 16 x 2 x 0.25 | 12.7 | 146.5 | 238 |
| 0038602 | 2 x 2 x 0.5 | 8.8 | 48.1 | 93 |
| 0038603 | 3 x 2 x 0.5 | 8.9 | 73.7 | 129 |
| 0038604 | 4 x 2 x 0.5 | 9.6 | 82 | 146 |
| 0038606 | 6 x 2 x 0.5 | 11.3 | 110 | 198 |
| 0038608 | 8 x 2 x 0.5 | 13.3 | 139 | 259 |
| 0038612 | 12 x 2 x 0.5 | 15.1 | 198.3 | 354 |
| 0038616 | 16 x 2 x 0.5 | 16.7 | 240 | 459 |
| 0038702 | 2 x 2 x 0.75 | 9.5 | 58 | 106 |
| 0038703 | 3 x 2 x 0.75 | 9.6 | 84 | 140 |
| 0038704 | 4 x 2 x 0.75 | 10.9 | 108 | 179 |
| 0038708 | 8 x 2 x 0.75 | 14.9 | 180 | 305 |
| 0038802 | 2 x 2 x 1 | 10.5 | 84 | 142 |
| 0038803 | 3 x 2 x 1 | 10.6 | 96 | 173 |
| 0038804 | 4 x 2 x 1 | 11.5 | 121 | 212 |
| 0038805 | 5 x 2 x 1 | 12 | 161 | 266 |
