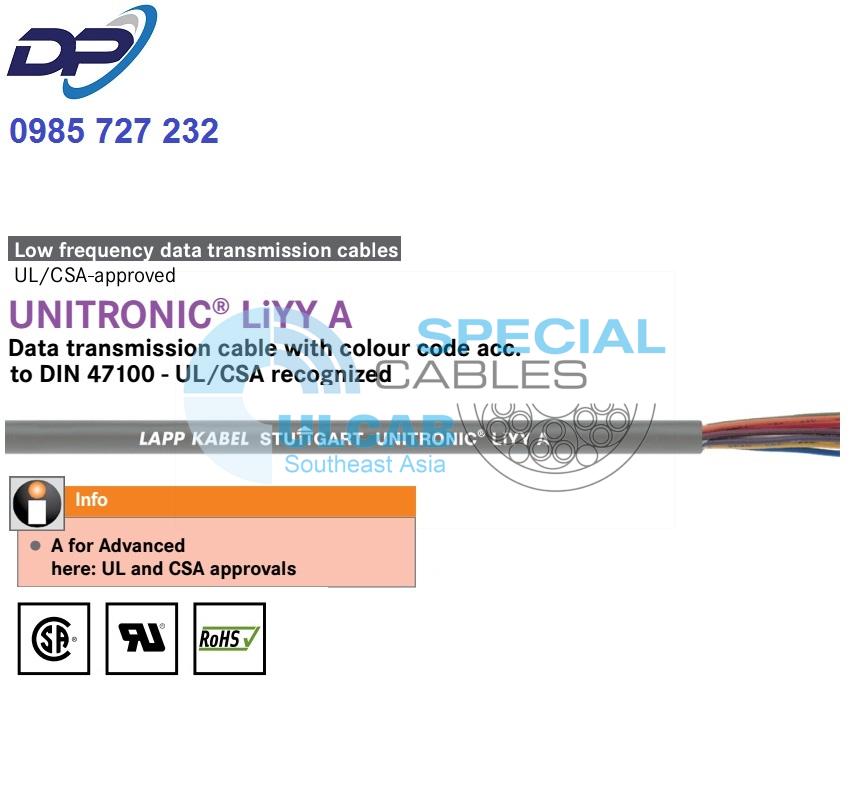

UNITRONIC® LiYY A
Data cable with colour code according to DIN 47100 – UL/CSA recognized
UNITRONIC® LiYY A – PVC data cable with UL/CSA AWM style 2464 for use in export-oriented machine construction
A for Advanced
here: UL and CSA certifications
Benefits
- For various applications
Application range
- Wiring of devices, machines and plants intended for export to the North American market or countries where primarily UL-/CSA-certified cables are used.
- For the North American market
Product features
- Flame-retardant according to IEC 60332-1-2,UL VW-1 & CSA FT 1
Norm references / approvals
- UL AWM Style 2464
- CSA AWM I/II A
- UL File No. E63634
Design
- Multi-wire strand made of tin-plated copper wires
- Core insulation made of PVC
- Outer sheath made of special PVC compound
Outer sheath colour: dark grey (RAL 7005)
Classification
- ETIM 5.0 Class-ID: EC000104
- ETIM 5.0 Class-Description: Control cable
Core identification code
- DIN 47100 without colour repetition, refer to table T9
Peak operating voltage
- (not for power applications)
300 V - UL/CSA: 300 V
Conductor design
- AWG conductor sizes, 7 or 19 wires
Minimum bending radius
- Occasional flexing: 15 x outer diameter
- Fixed installation: 6 x outer diameter
Test voltage
- 1500 V
Temperature range
- Occasional flexing: -5°C to +70°C (VDE), or +80°C (UL)
- Fixed installation: -40°C to +80°C
| Article number | Number of cores and AWG per conductor |
Number of cores and mm² per conductor |
Outer diameter (mm) | Copper index (kg/km) | Weight (kg/km) |
| UNITRONIC® LiYY A | |||||
| 0022403 | 3 x AWG26/7 | 3 x 0.14 | 3.8 | 4.2 | 19.7 |
| 0022404 | 4 x AWG26/7 | 4 x 0.14 | 4 | 5.6 | 23 |
| 0022405 | 5 x AWG26/7 | 5 x 0.14 | 4.3 | 7 | 25 |
| 0022408 | 8 x AWG26/7 | 8 x 0.14 | 5.1 | 11.2 | 34 |
| 0022412 | 12 x AWG26/7 | 12 x 0.14 | 5.8 | 16.8 | 47 |
| 0022416 | 16 x AWG26/7 | 16 x 0.14 | 6.3 | 22.4 | 58 |
| 0022421 | 21 x AWG26/7 | 21 x 0.14 | 7 | 29.4 | 63 |
| 0022502 | 2 x AWG24/7 | 2 x 0.23 | 4 | 4.6 | 26.2 |
| 0022505 | 5 x AWG24/7 | 5 x 0.23 | 4.8 | 11.5 | 39.4 |
| 0022508 | 8 x AWG24/7 | 8 x 0.23 | 5.7 | 18.4 | 52.5 |
| 0022512 | 12 x AWG24/7 | 12 x 0.23 | 6.6 | 27.6 | 72.2 |
| 0022602 | 2 x AWG22/7 | 2 x 0.34 | 4.8 | 6.8 | 32.8 |
| 0022603 | 3 x AWG22/7 | 3 x 0.34 | 5 | 10.2 | 35 |
| 0022604 | 4 x AWG22/7 | 4 x 0.34 | 5.4 | 13.6 | 45.9 |
| 0022605 | 5 x AWG22/7 | 5 x 0.34 | 5.9 | 17 | 55.8 |
| 0022607 | 7 x AWG22/7 | 7 x 0.34 | 6.4 | 23.3 | 68.9 |
| 0022608 | 8 x AWG22/7 | 8 x 0.34 | 6.9 | 27.2 | 75.5 |
| 0022612 | 12 x AWG22/7 | 12 x 0.34 | 8.2 | 40.8 | 103 |
| 0022616 | 16 x AWG22/7 | 16 x 0.34 | 9.1 | 54.4 | 131.2 |
| 0022624 | 24 x AWG22/7 | 24 x 0.34 | 11.6 | 81.6 | 190 |
| 0022632 | 2 x AWG20/7 | 2 x 0.50 | 5.3 | 11.2 | 29 |
| 0022642 | 2 x AWG19/19 | 2 x 0.75 | 5.6 | 15 | 48 |
