UNITRONIC® LiYCY (TP) A
Shielded data cable with colour code according to DIN 47100 and twisted in pairs – UL/CSA recognised

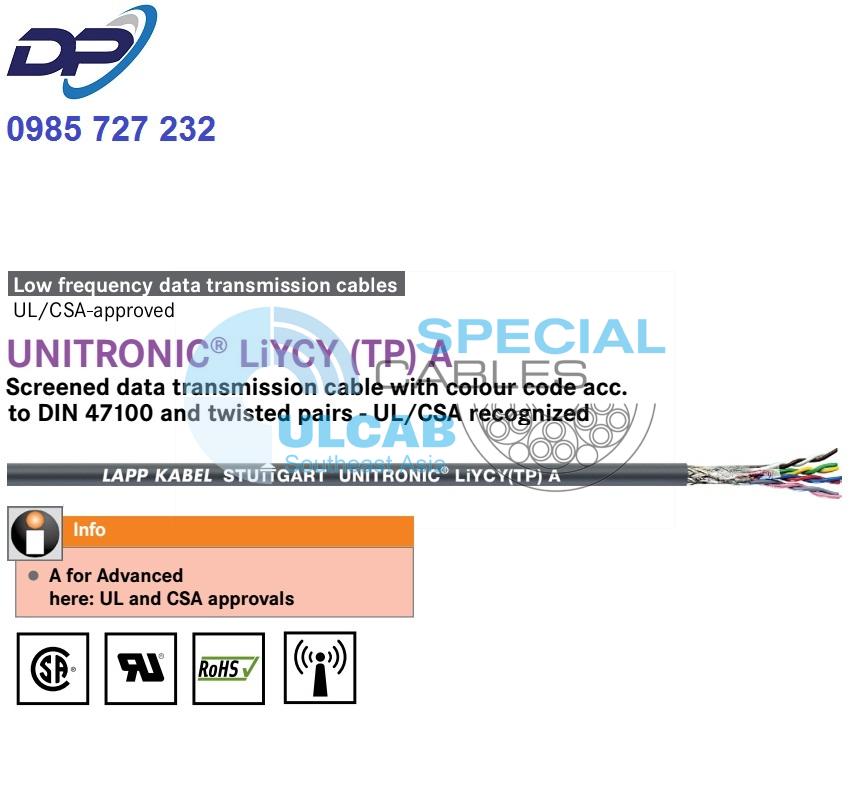

UNITRONIC® LiYCY (TP) A – shielded PVC data cable twisted in pairs with UL/CSA AWM style 2464 for use in export-oriented machine construction
A for Advanced
here: UL and CSA certifications
Benefits
- Overall shield minimises electrical
interference - Decoupling of circuits by means of
twisted-pair (TP) design (crosstalk effects)
Application range
- For the North American market
- Wiring of devices, machines and plants intended for export to the North American market or countries where primarily UL-/CSA-certified cables are used.
Product features
- Flame-retardant according to IEC 60332-1-2,UL VW-1 & CSA FT 1
Norm references / approvals
- UL AWM Style 2464
- CSA AWM I/II A
- UL File No. E63634
Design
- Multi-wire strand made of tin-plated copper wires
- Core insulation made of PVC
- Twisted pair (TP) structure
- Tin-plated copper braiding
- Outer sheath made of special PVC compound
Outer sheath colour: dark grey (RAL 7005)
Classification
- ETIM 5.0 Class-ID: EC000104
- ETIM 5.0 Class-Description: Control cable
Core identification code
- DIN 47100 without colour repetition, refer to table T9
Peak operating voltage
- (not for power applications)
300 V - UL/CSA: 300 V
Minimum bending radius
- Occasional flexing: 15 x outer diameter
- Fixed installation: 6 x outer diameter
Test voltage
- 1500 V
Temperature range
- Occasional flexing: -5°C to +70°C (VDE), or +80°C (UL)
- Fixed installation: -40°C to +80°C
| Article number | Number of cores and AWG per conductor |
Outer diameter (mm) | Copper index (kg/km) | Weight (kg/km) |
| UNITRONIC® LiYCY (TP) A | ||||
| 0066202 | 2 x 2 x AWG26/7 | 5.5 | 18 | 45.9 |
| 0066204 | 4 x 2 x AWG26/7 | 6.4 | 24 | 58 |
| 0066205 | 5 x 2 x AWG26/7 | 6.6 | 30 | 58 |
| 0066208 | 8 x 2 x AWG26/7 | 7.9 | 53 | 85 |
| 0066210 | 10 x 2 x AWG26/7 | 8.7 | 55 | 106 |
| 0066212 | 12 x 2 x AWG26/7 | 8.9 | 64 | 113 |
| 0066216 | 16 x 2 x AWG26/7 | 10.2 | 87 | 149 |
| 0066232 | 2 x 2 x AWG24/7 | 6.1 | 24.5 | 57 |
| 0066233 | 3 x 2 x AWG24/7 | 6.7 | 28.9 | 62 |
| 0066234 | 4 x 2 x AWG24/7 | 7.2 | 33.5 | 70 |
| 0066235 | 5 x 2 x AWG24/7 | 7.5 | 46.3 | 91 |
| 0066238 | 2 x 2 x AWG22/7 | 7.4 | 38 | 45 |
| 0066239 | 3 x 2 x AWG22/7 | 8.1 | 45.1 | 64 |
| 0066240 | 4 x 2 x AWG22/7 | 8.8 | 54.6 | 75 |
| 0066242 | 2 x 2 x AWG20/7 | 8.2 | 49.7 | 93 |
| 0066243 | 3 x 2 x AWG20/7 | 9.1 | 60.1 | 102 |
| 0066244 | 4 x 2 x AWG20/7 | 10.2 | 78.7 | 120 |
| 0066219 | 5 x 2 x AWG20/7 | 10.7 | 88.9 | 156 |
| 0066220 | 6 x 2 x AWG20/7 | 11.6 | 100.6 | 184 |
| 0066262 | 2 x 2 x AWG19/19 | 8.7 | 65.2 | 140 |
| 0066221 | 3 x 2 x AWG19/19 | 10 | 69.2 | 145 |
