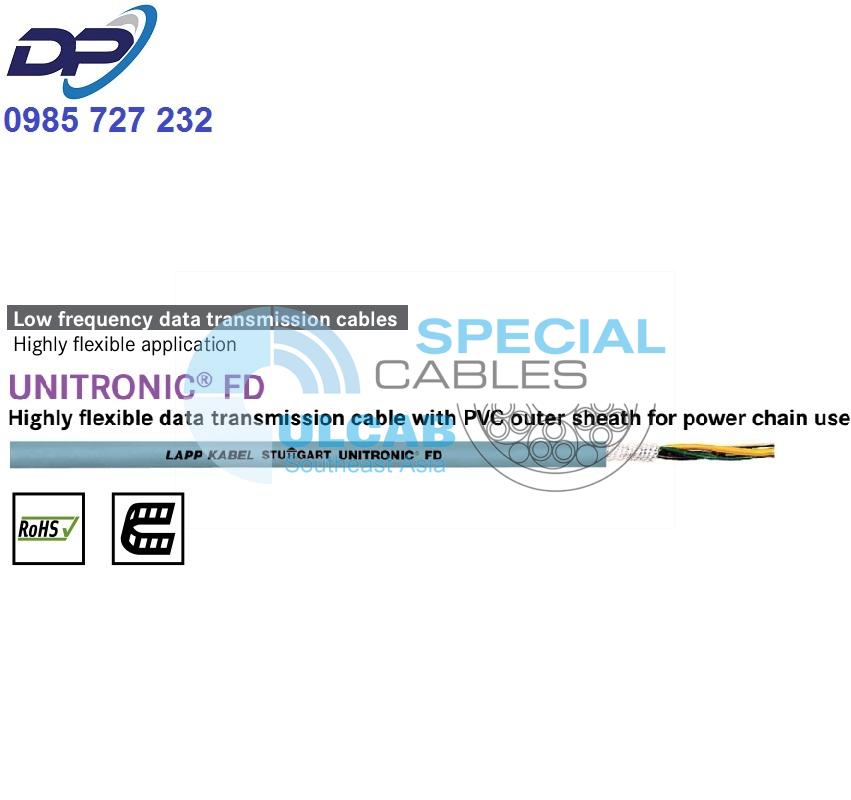

UNITRONIC® FD
Highly flexible data cable with PVC outer sheath for power chain use
UNITRONIC® FD – PVC data cable for versatile applications in power chains and permanently flexing applications
Benefits
- Tried-and-tested and reliable
- Optimised cable construction for power chain use
- Cost-effective version
Application range
- Automated production processes require data cables that offer increasingly higher flexibility and durability
- Suitable for use in measuring, control and regulating circuits
- Assembly and production lines, in all kinds of machines
Product features
- Low-adhesive surface
- Flame-retardant according to IEC 60332-1-2
- Designed for 2 to 8 million alternating bending cycles in the power chain
Norm references / approvals
- Based on VDE 0812
- For distances up to 10 m
- For use in power chains: Please comply with assembly guideline appendix T3
Design
- Extra-fine wire strand made of bare copper wires
- Core insulation made of PVC
- Fleece wrapping
- Outer sheath made of PVC
Outer sheath colour: grey (RAL 7001)
Classification
- ETIM 5.0 Class-ID: EC000104
- ETIM 5.0 Class-Description: Control cable
Core identification code
- DIN 47100, refer to appendix T9
Operating capacitance
- C/C: approx. 100 nF/km
Peak operating voltage
- (not for power applications)
350 V
Inductance
- approx. 0.65 mH/km
Conductor design
- Strand, extra-fine wire
Minimum bending radius
- Flexing: 5 x outer diameter
- Fixed installation: 3 x outer diameter
Test voltage
- 1500 V
Temperature range
- Flexing: -5°C to +70°C
- Fixed installation: -40°C to +80°C
| Article number | Number of cores and mm² per conductor | Outer diameter (mm) | Copper index (kg/km) | Weight (kg/km) |
| UNITRONIC® FD | ||||
| 0027841 | 3 x 0.14 | 3.9 | 4.2 | 26 |
| 0027842 | 4 x 0.14 | 4.2 | 5.6 | 31 |
| 0027843 | 5 x 0.14 | 4.5 | 7 | 35 |
| 0027844 | 7 x 0.14 | 5.1 | 9.8 | 50 |
| 0027845 | 10 x 0.14 | 6.1 | 14 | 63 |
| 0027846 | 14 x 0.14 | 6.2 | 19.6 | 77 |
| 0027847 | 18 x 0.14 | 6.8 | 25.2 | 91 |
| 0027848 | 25 x 0.14 | 8.3 | 35 | 125 |
| 0027855 | 2 x 0.25 | 4.3 | 5 | 27 |
| 0027856 | 3 x 0.25 | 4.5 | 7.5 | 33 |
| 0027857 | 4 x 0.25 | 4.9 | 10 | 40 |
| 0027858 | 5 x 0.25 | 5.3 | 12.5 | 51 |
| 0027859 | 7 x 0.25 | 6.1 | 17.5 | 51 |
| 0027860 | 10 x 0.25 | 7.4 | 25 | 84 |
| 0027861 | 14 x 0.25 | 7.5 | 35 | 108 |
| 0027863 | 18 x 0.25 | 8.5 | 45 | 130 |
| 0027865 | 25 x 0.25 | 10.4 | 62.5 | 178 |
| 0027870 | 2 x 0.34 | 4.7 | 6.8 | 30 |
| 0027871 | 3 x 0.34 | 5 | 10.2 | 43 |
| 0027872 | 4 x 0.34 | 5.4 | 13.6 | 57 |
| 0027873 | 5 x 0.34 | 5.9 | 17 | 65 |
| 0027874 | 7 x 0.34 | 6.8 | 23.8 | 85 |
| 0027875 | 10 x 0.34 | 8.5 | 34 | 117 |
| 0027876 | 14 x 0.34 | 8.6 | 47.6 | 151 |
| 0027877 | 18 x 0.34 | 9.7 | 61.2 | 182 |
| 0027878 | 25 x 0.34 | 11.9 | 85 | 250 |
